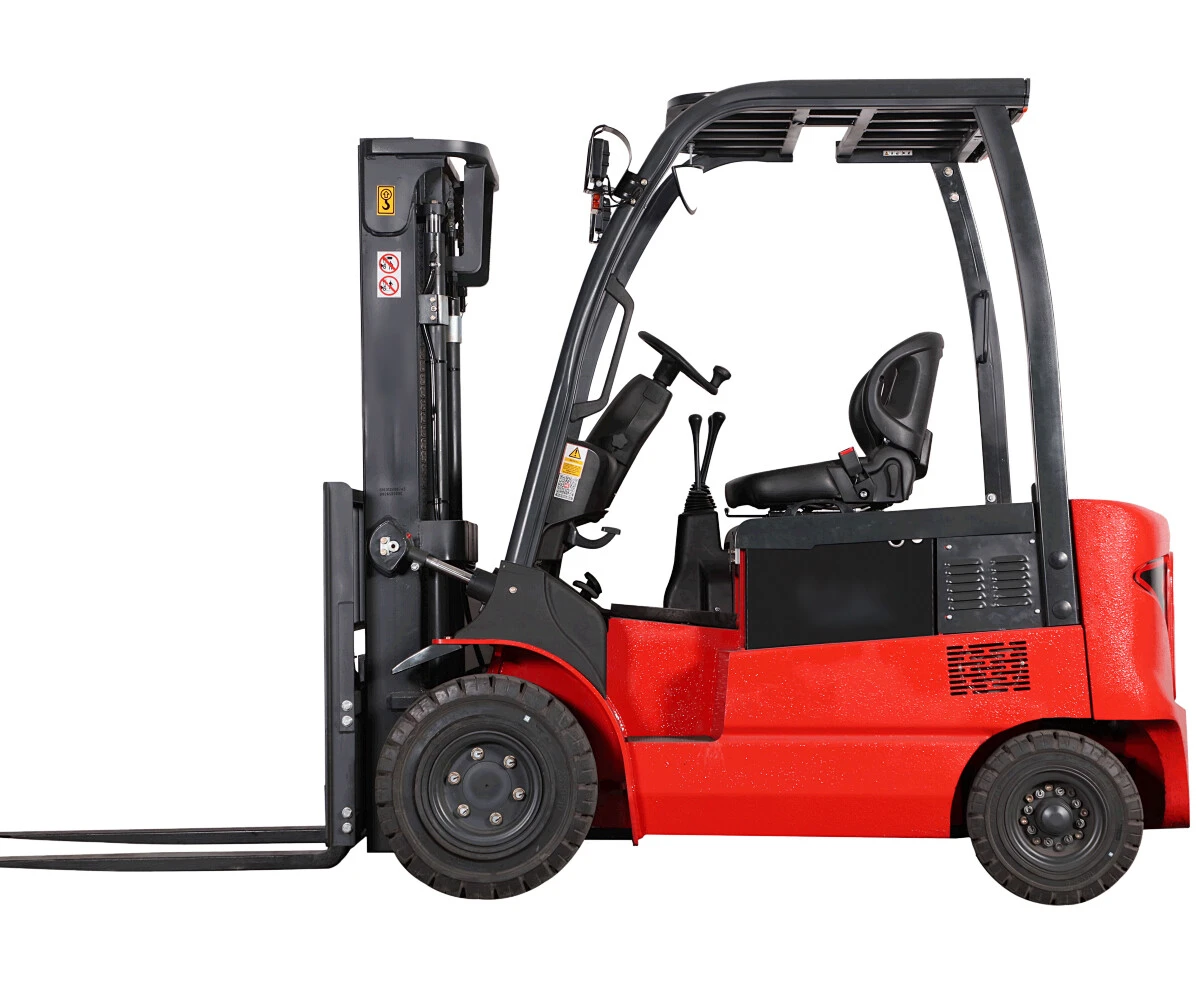

3.5T Electric Forklift

Product Description

‌Electric forklift‌ is a battery-powered loading and unloading and handling vehicle, mainly used in warehousing, logistics and other fields. Electric forklifts have the advantages of environmental protection, energy saving, and easy operation. They are suitable for use in indoor environments, especially in places with high requirements for air quality.

Advantages of electric forklift:

‌Environmental protection and energy saving‌: Electric forklifts have no exhaust emissions and low noise, making them suitable for long-term work in closed indoor environments without affecting air quality.

‌Easy to operate‌: Electric forklifts are easy to operate and control. The electric steering system, acceleration control system, hydraulic control system and braking system are all controlled by electrical signals, which reduces the labor intensity of operators and improves work efficiency and accuracy.

‌Low maintenance cost‌: Electric forklifts usually do not require a lot of maintenance and upkeep, which reduces the cost of use.‌

Vehicle parameters




The body size, height and other configurations can be customized according to customer needs


Technical Parameters

Maximum lifting weight

3500kg

long

2600mm without fork

long

3770mm including fork

Width

1200mm

high

2150mm

Vehicle weight

4300kg

Lifting height

4.2 m

Body material

Thickened steel body

Electrical System

Travel motor

12 kW AC motor

Voltage

60V

Vehicle power

Pure Electric

Battery

Lead-acid battery (10 pieces)/lithium battery/optional

Lights and Signals

Lighting, electric horn, etc.

Chassis system

Drive axle

Heavy Duty

tire

Front wheel 23*9-10 (solid tire) Rear wheel 18*7-8 (solid tire)

Steering axle

Thickened double-layer steel plate steering axle

Braking method

Oil brake

Other Configuration

Lifting cylinder

Strengthen the sealing double cylinder

Fork length

1070m/1220m/1550m forged fork

Hydraulic lifting motor

9kW AC power unit

Gantry material

Thickened C-shaped special steel

Steering method

Hydraulic power steering

Turning Radius

90° on-site turning

Charging time

8 hours

Continuous working time

10 hours

Climbing angle

25°

Vehicle accessories

Vehicle tools/charger
