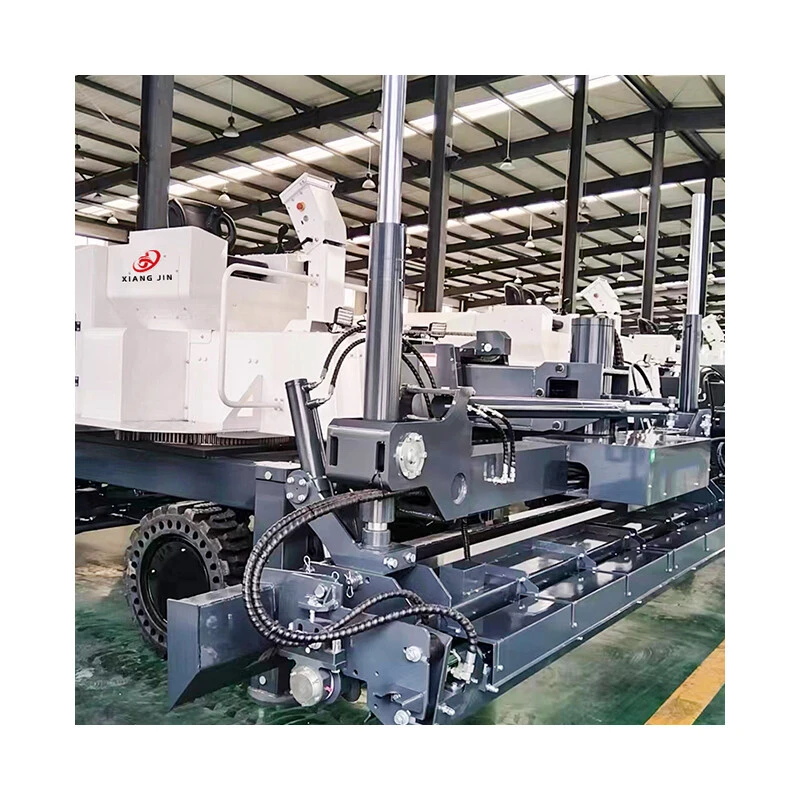

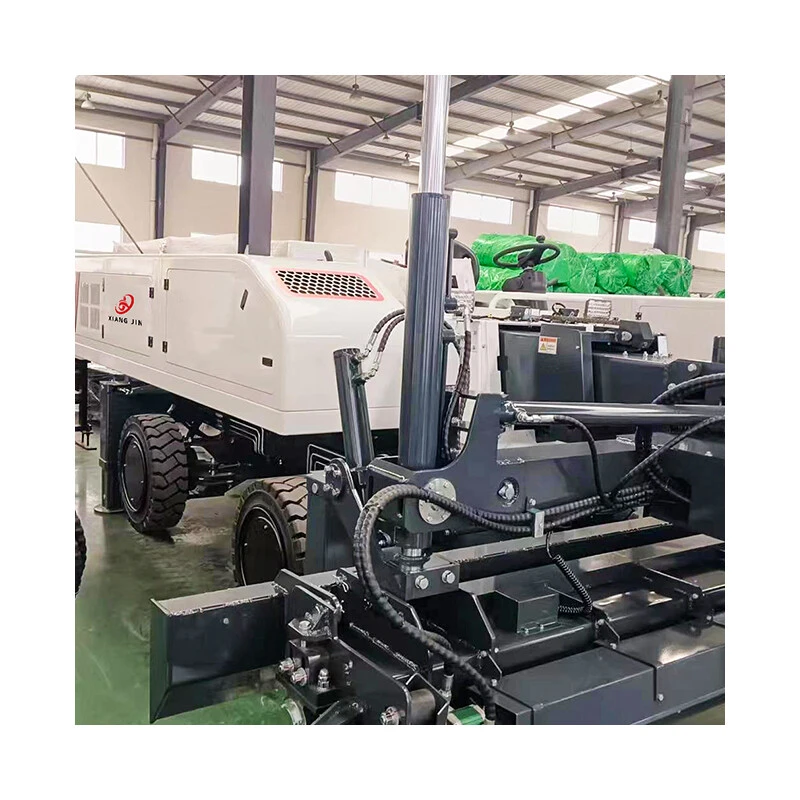

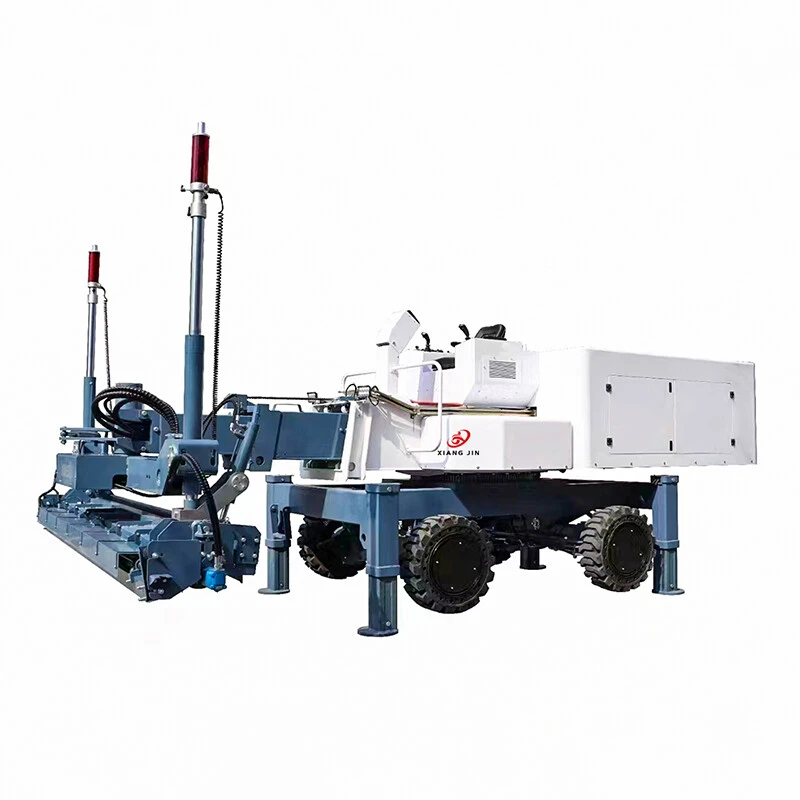

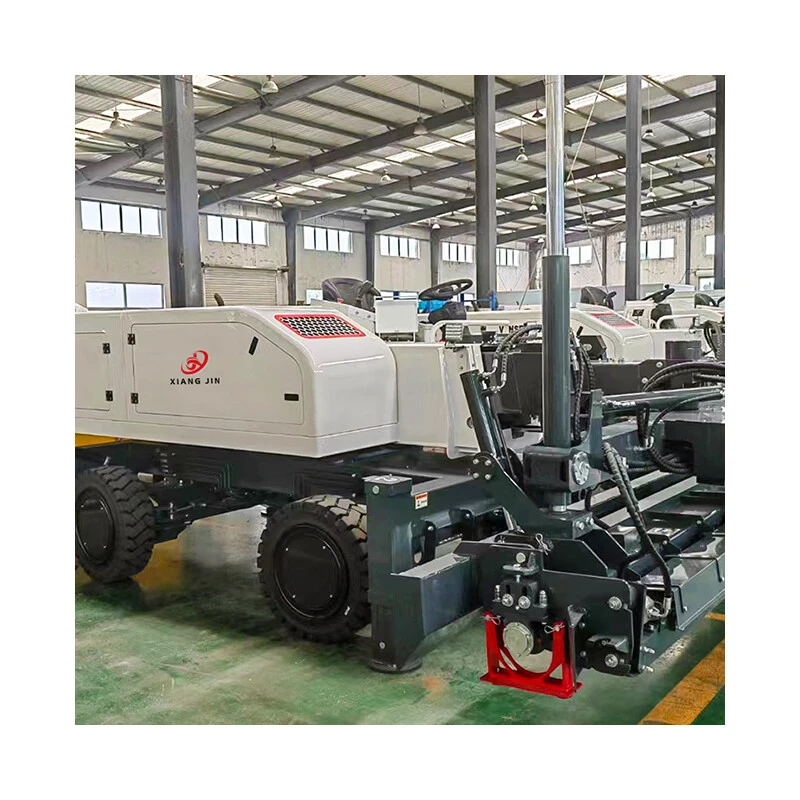

Telescopic Arm Laser Leveler

PRODUCT  DESCRIPTION

This model of machine is capable of 360°rotation and is equipped with a 6m telescopic arm and individual touch-sensitive outrigger controls;

The machine is equipped with the most advanced laser system and full hydraulic control system, which makes the concrete construction ground flat with high precision and stronger compactness;

The leveling width is3000mm, and 18 square meters of concrete can be leveled each time. The flexible and efficient hydraulic system can control the rotation height of the scraper and the cloth to maintain the flatness of the leveling layer;

lt is particularly suitable for concrete with very low slump or concrete containing large aggregates and steel fibers.


MotorLaser Control System
Model numberYanmar4TNV94LControl methodMicrocomputerlaser scanning
TypeDiesel engine,4-stroke water-cooled, four cylindersControl effectFlat, sloped or double sloped
Power (output)36.5KWPropulsionHydraulic motor drive
Fuel capacity110L    Laser systemTen Pao,USA/ Moba,Germany
Walking  Leveling System
Drive (vehicle wheel)Hydraulic four-wheel driveLeveling width3000mm
Steering modeFront/four-wheel/crabPaving methodHydraulic cage
WheelAnti-skid solid tires  Cage powerHydraulic motor
Travel speed    0-6km/h    Force of seismic wave3000nTravel speed    0-6km/h
Working speed20m/min        Vibration frequency60hz
Seating positionLeft frontSwing angle±45°
Lose one's waySteering wheelsControlaccuracy±1.5mm
Telescopic ArmSize and Weight
Length6000mm  Size  5350x3650x2050mm
Control methodHandle control, infinitely variable speedWeight 5500kg
