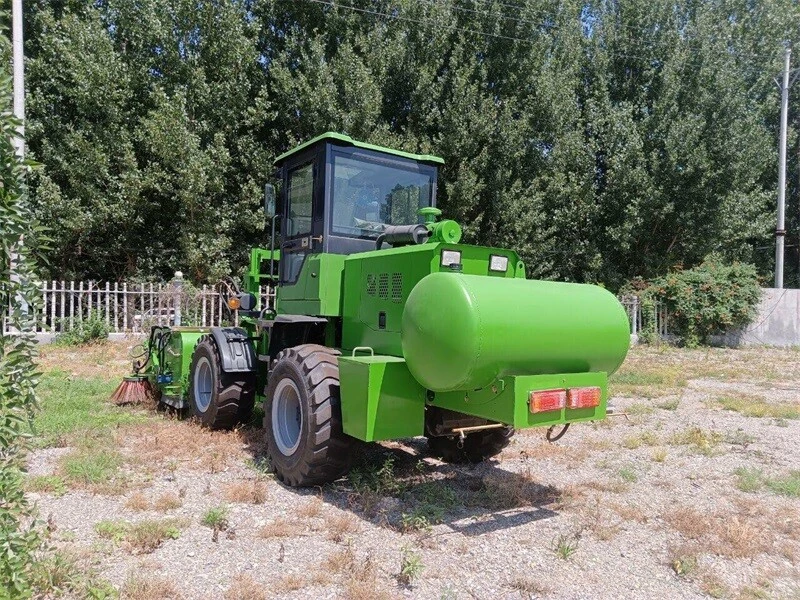

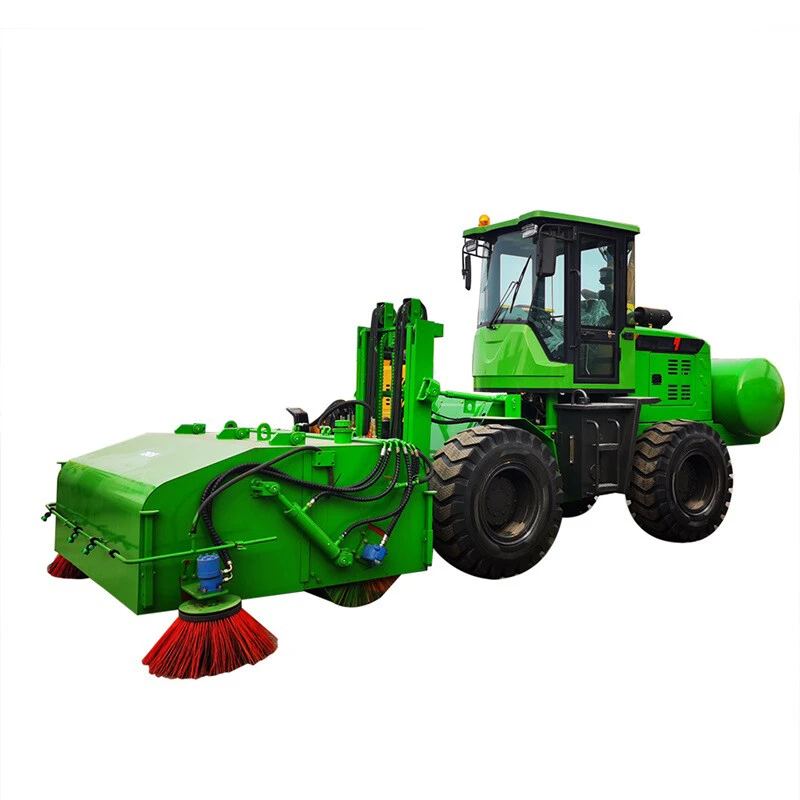

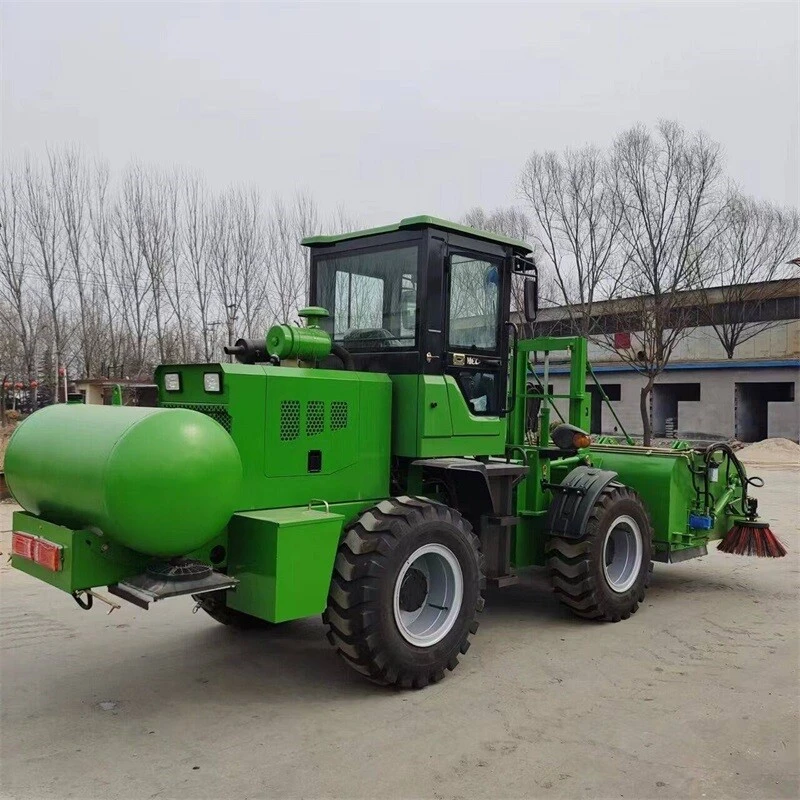

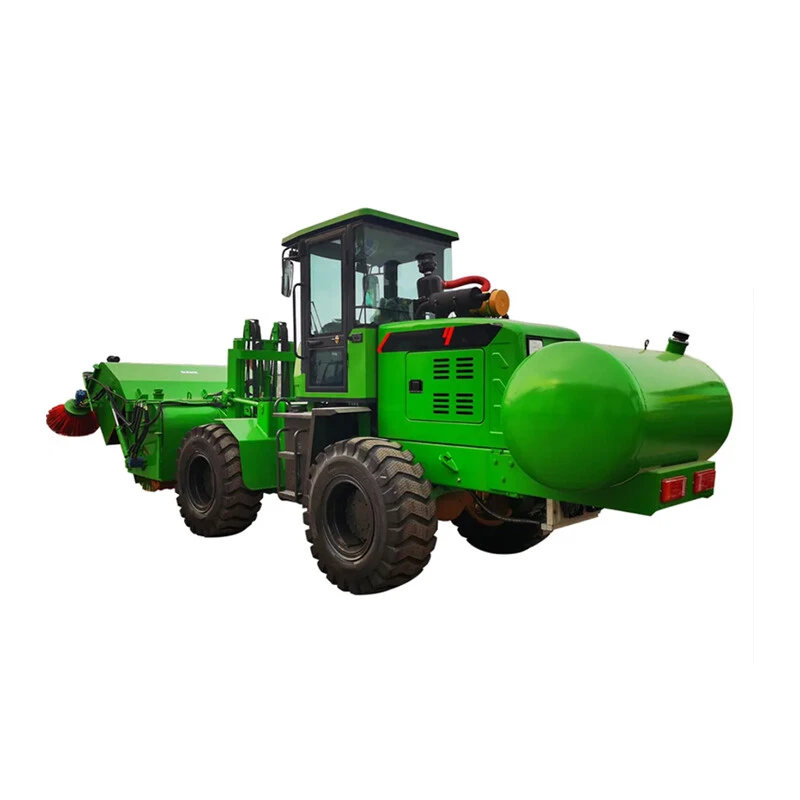

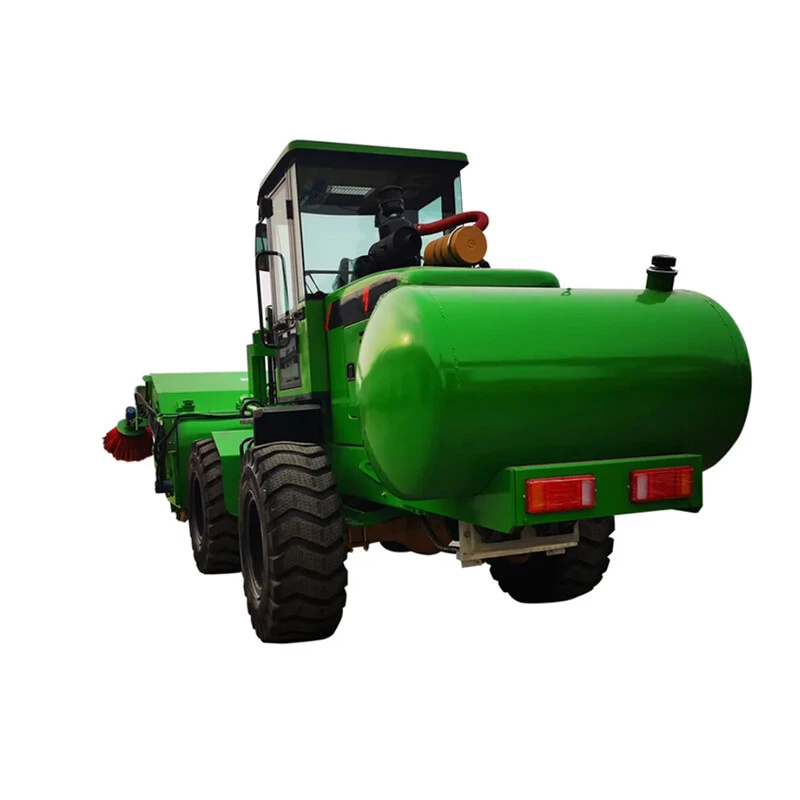

Road Sweeper

ModelXJ-3200S
Heating and cooling systemstandard configuration
Main car chassis categoryConstruction machinery chassis
Speed changing boxtorque converter
Operating modeFull hydraulic automatic transmission
Mode of axle drive4WD
Braking modepneumatic brake
AxlePlus heavy side bridge
Tire model16/70-20
Tyre materialWear-resistant native rubber engineering tires
Engine brandYunnei power
Starting preheaterstandard configuration
Engine power62kw
Horsepower86ph
Fuel consumption8/h
Fuel tank capacity85L
Brush diameter660mm
Roller brush materialWire nylon mixture
Edge brushLeft and right edge brush
Maximum diameter of edge brush600
Edge brush materialSteel sheet + thick and fine nylon mixed
· Overall size6350x2600x2850mm
Device size2100x2400x1100mm
Bin volume1.5m³
Maximum speed of rolling brush400r/min
Maximum sweep width3200mm
Dumpster sweep width2000mm
Sweeping capacity28000㎡/h
Lifting modeHelicopter straight down vertical lift
Discharge height1500mm
Discharge methodFully hydraulic dumpster upside-down
Working device operation modeMechanical pilot operated with single handle
Cooling systemSeparate double oil powder
Hydraulic systemTwo pumps two valves
Oil brandThe Great Wall
Air filterWet and dry combined secondary filtration
Water sprinkler systemElectric sub-control
Water tank1000L


Product Advantages


(1)The brush adopts customized large torque motor to give full play to the maximum power of the original main engine, and the cleaning effect is clean and thorough.

(2)Full hydraulic control, flexible and convenient operation.

(3)Equipped with water cleaning dust removal system, spray dust, more environmentally friendly.

(4)Equipped with left and right cleaning tray brush, the maximum cleaning width of 3.2 meters.

(5)The main brush motor adopts special scram buffer controller to avoid hydraulic system failure during equipment scram, greatly reducing the failure rate of equipment and prolonging the service life of equipment.

(6)The professional customized hydraulic system greatly improves the matching degree of the vehicle hydraulic system, and the system power output is more powerful and stable.

(7)The dustbin volume is 1.5 cubic meters, the dustbin is enlarged, and the continuous operation time is extended.

(8)The dustbin adopts the design principle of storage and collection before cleaning, which greatly improves the utilization rate of effective garbage loading in the dustbin, and the garbage unloading is convenient and clean at one time.

(9)Mainly used for cleaning sand, sand, soil, dust and other road waste.

(10)Unique edge brush design, increase the width of cleaning, improve the efficiency of cleaning at the same time, can clean the garbage along the edge of the stone.

(11)The side brush and the main brush are independently operated and removable.

(12)The independent skeleton structure is used for processing and welding to prevent the deformation of the cleaner and extend the service life of the equipment.

(13)The motor and the brush spindle are connected by the combination of direct connection and flexible connection, which can reduce the problem of the motor and the spindle being not coaxial and extend the service life of the motor.

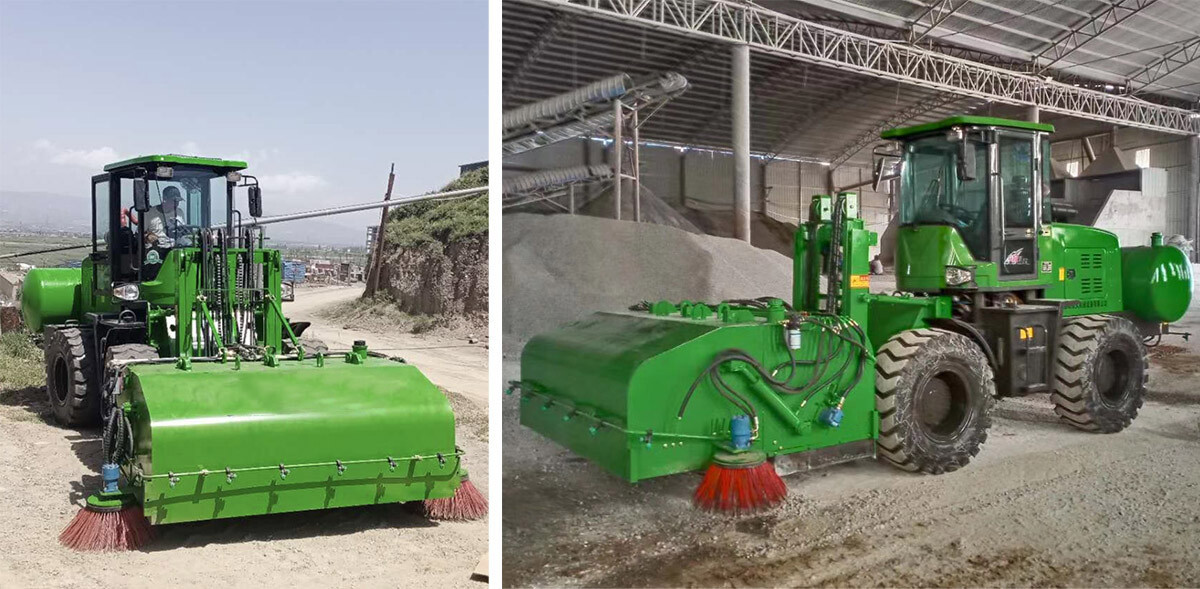

Road sweeper.jpg
