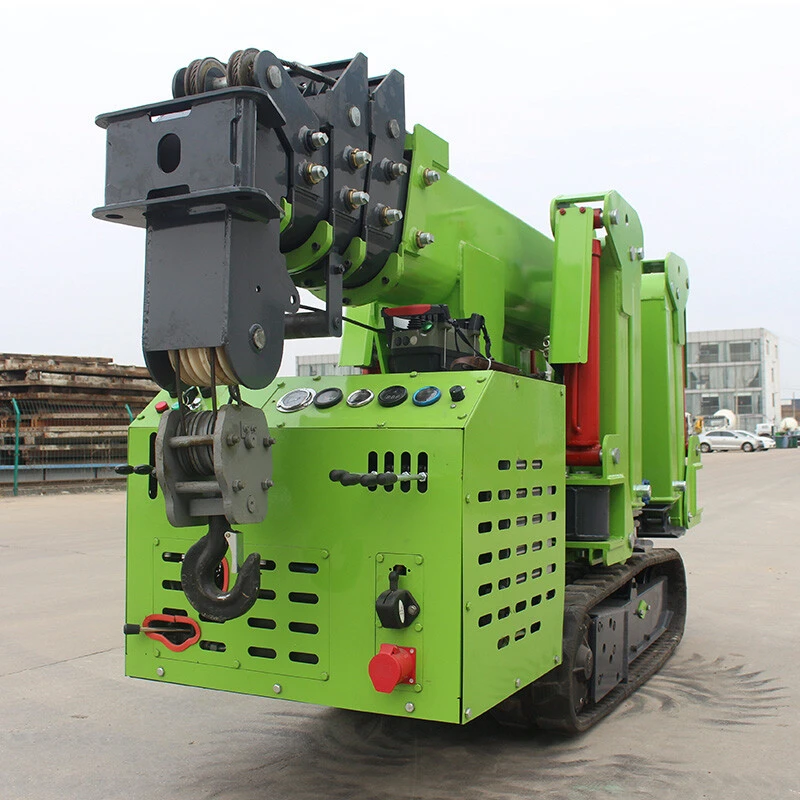

12 TON Spider Crane

Product Description

This is a remote-controlled intelligent spider crane, and the power and hydraulic systems are all made of domestic high-end and imported parts. The spider crane is fully functional, compact, hydraulically operated, and has a safety design that prevents incorrect operation. It can adapt to rugged outdoor venues and has a hexagonal boom that can be extended. The crane is sturdy and durable, and can easily complete operations even in harsh environments. It has a safety design that prevents incorrect operations, making it easy for operators to complete lifting operations.


Product Usage Scenarios

Spider cranes are widely used in the maintenance and installation of electrical equipment in substations, the maintenance and installation of mechanical and chemical workshop equipment, the installation of engineering structures, and glass curtain walls and other narrow spaces.


Max. operating radius20m
Max. ground lift21.5m
Winding plantLifting speed of the hook0-10m/min
Wire rope specificationΦ12mm
Retractor deviceBoom form5 arm lifts
Boom length5m-20m
Undulation DeviceBoom Angle/time0-75°/13sec
GyroscopeTurning Angle/speed0-360°/60sec
OutriggerLeg action form Oil pressure automatic support+Manual
Max. ExtensionMin. extension  7600* 7100mm6600*6100mm
Walking deviceWalking modeHydraulic motor drive, two speed
Traveling speed0-5.5km/h
Gradeability20°(36%)
MotorVoltageAC380V
EnginePowerYuchai 78kw
Starting modeelectrical starting
Starting performance-5°C~40°C
Fuel/volumeDiesel/45L
Battery capacity24v 45AH
Fuel consumption rate230g/kW-h
Noise gradeRated speed≤81.5dBA  (1m)
Operating systemOperation type (lifting arm/leg), manual walkingManual operation, manual walking + remote control (optional)
Standard configurationDiesel and electric (dual power)
WorkmanshipPaint assembly process
Dimension5800x1960x2460mm
Weight11.3Ton

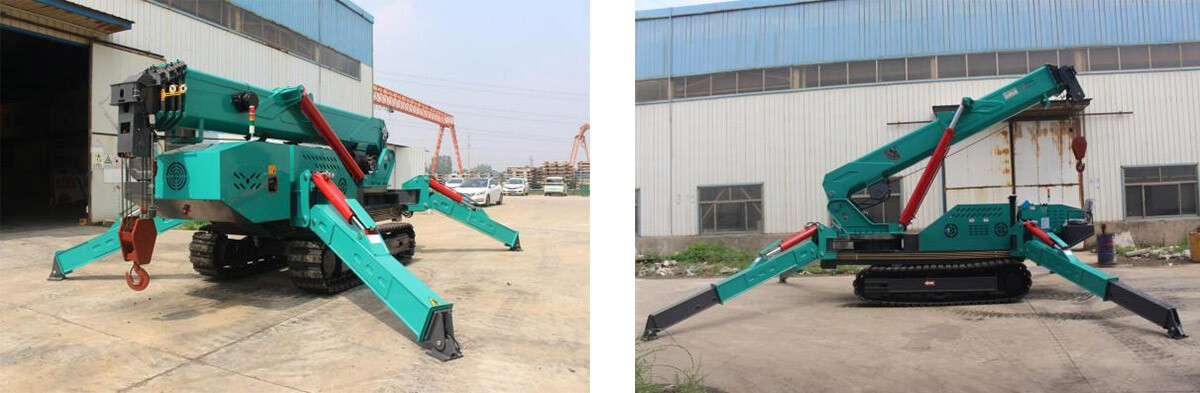

12T Spider Crane.jpg

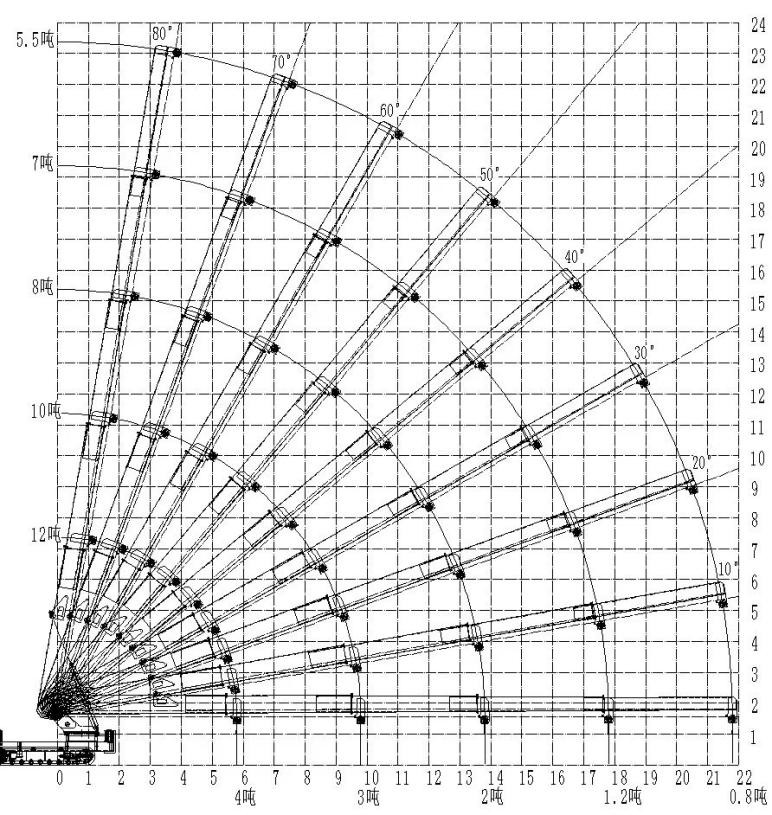

12T Spider Crane2.png
