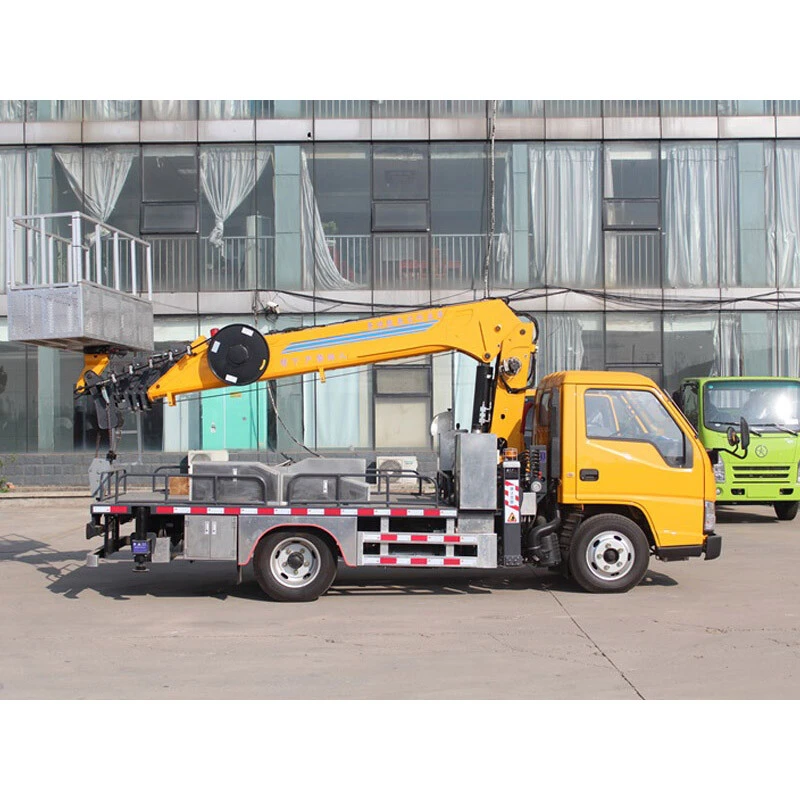

Chassis configuration：

Chassis model

QL1096NKHACY

Chassis brand

Isuzu

Fuel  typel

Diesel

Driver seat

Left hand drive

Gear box

Mechanic and Automatic

Driving type

2x4. 2 rear tire

Wheelbase

3365

Engine Model

4KH1N6MD

Driving Mode

4 type , 5 speed gearbox, 4 forward and 1 reverse

Engine power

103KW

displacement

2999ml

Tire model

7.50R16LT 16PR

Brake type

4 wheel brake

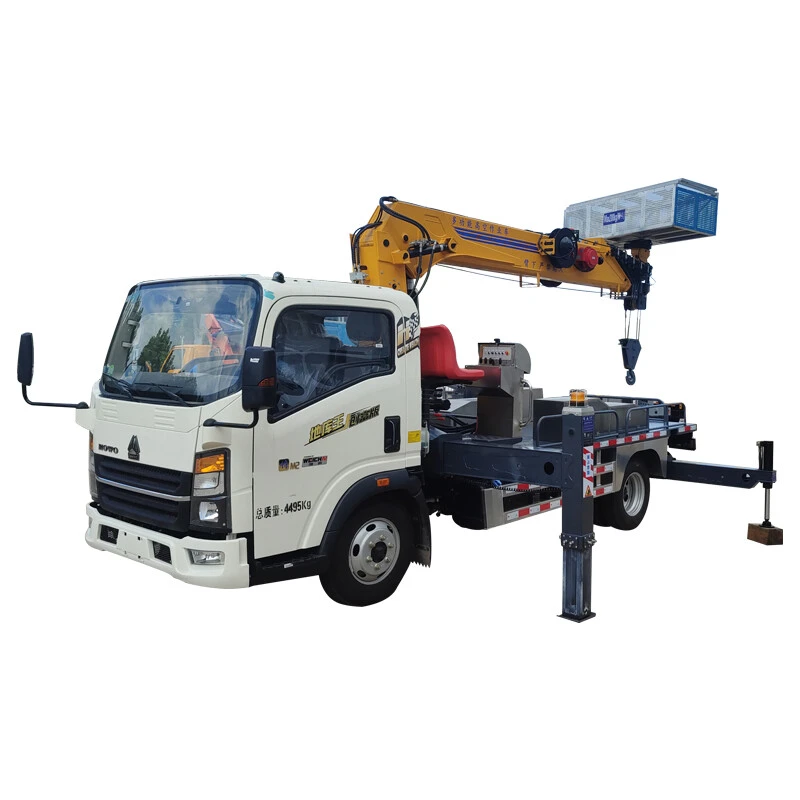

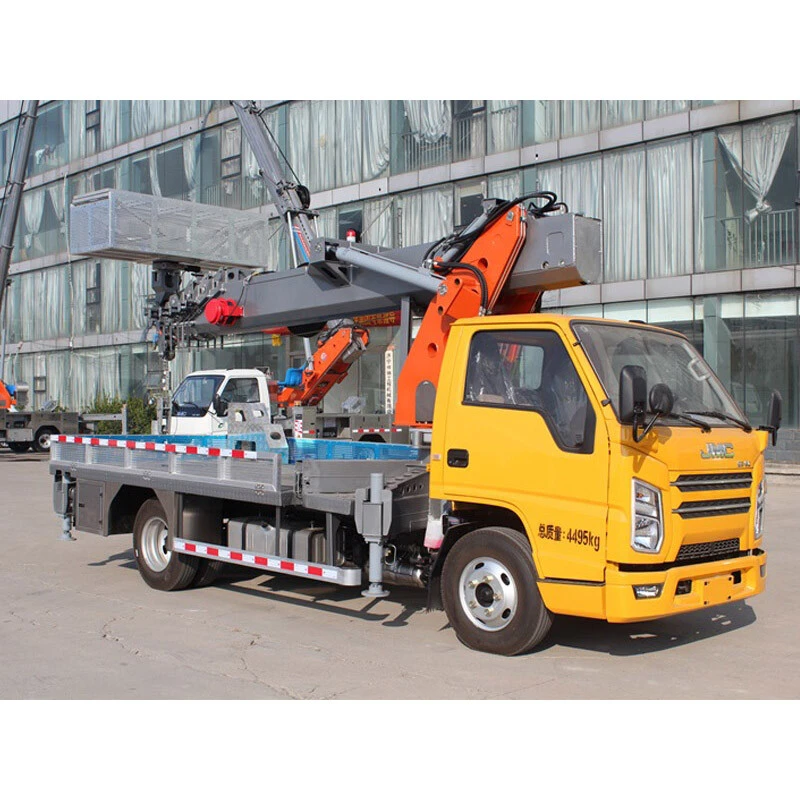

Platform configuration：

Maximum Working height

20M

Vehicle size

6550*1950*3200

Maximum horizontal range

15M

Total mass

7300

Operating height at maximum working range

18M

Cylinder

Xuzhou Yanhuang

Operating range at

maximum working

height

5M

Outrigger  span (mm)

4600/4200

Boom type

6 sections of synchronous telescopic expansion

Outrigger structure

Double Leg H Type

Arm material

Baosteel 960

Boom heave angle

-10/+75°

Boom structure

7-arm (2 up, 3 down, 1 left, 1 right)

Hydraulic lock

Yangzhou Zhongmei Hydraulic YS6-03H

Basket size

1600*710*1200

Nylon Sliders

(Xuzhou Black and White Dragon)

Hydraulic reel

Shanghai Quantuo

Electronic

control

system

HunanCyber

remote controldistance 150 meters

On-board valve

Beijing Shengweihua

(joint venture)

TPSL3-DSE12-04-X2-01

How to operate

Electric control, remote control

Leveling form

Static automatic

Leveling device

Hydraulic oil pipe leveling

Turntable rotation form

360°

Slewing support

Jiangsu C hangzhou

Kesen

S19-116-LH-250A-REVA

Rotation form

360°

Working

platform

rated

200KG

Basket rotation form

160°

Max speed

90km/h

Enviroment temprature

-40°/+40°

Arm form

Double wire rope

Back arm form

Taiwan leaf chain

Standard

Cab, air conditioning, weighing, wind speed sensor，lifting height limiter

Other：

The deck is equrpped with a leveler

There is a joystick control in the basket

Lifting and extending arm by hydraulic cylinder equipped

Equipped with 4-sided extension supports

Additional equipment:

Warning lights, beacons and sirens

Sound alarm during lifting and lowering

Deviation alarm

Moto/Hour Meter

Plant operation control screen

Deck work light

Controls to lock the deck stationary

12V-24V DC power supply

Engine emergency switch

Fire poison

accompanying products ：

2 time service products: oil, hydraulic,air,fuel filters
