Product Description

Chassis configuration:

Dongfeng K5, Yuchai 270 horsepower, two-point suspension cab, Dongfeng Pine air conditioning, remote key central door lock, airbag seat, electric lifting glass, second-level boarding step, driving recorder, with deflector, hydraulic lifting device

Wheelbase: 5900+1350

Gearbox: Shaanxi Gear 9JS119 high and low gear with synchronizer, power take-off

Front and rear axles: 5.5T/10T

Frame: 300mm split three-layer special frame

Tire: 11.00R20 steel tire

Top configuration:

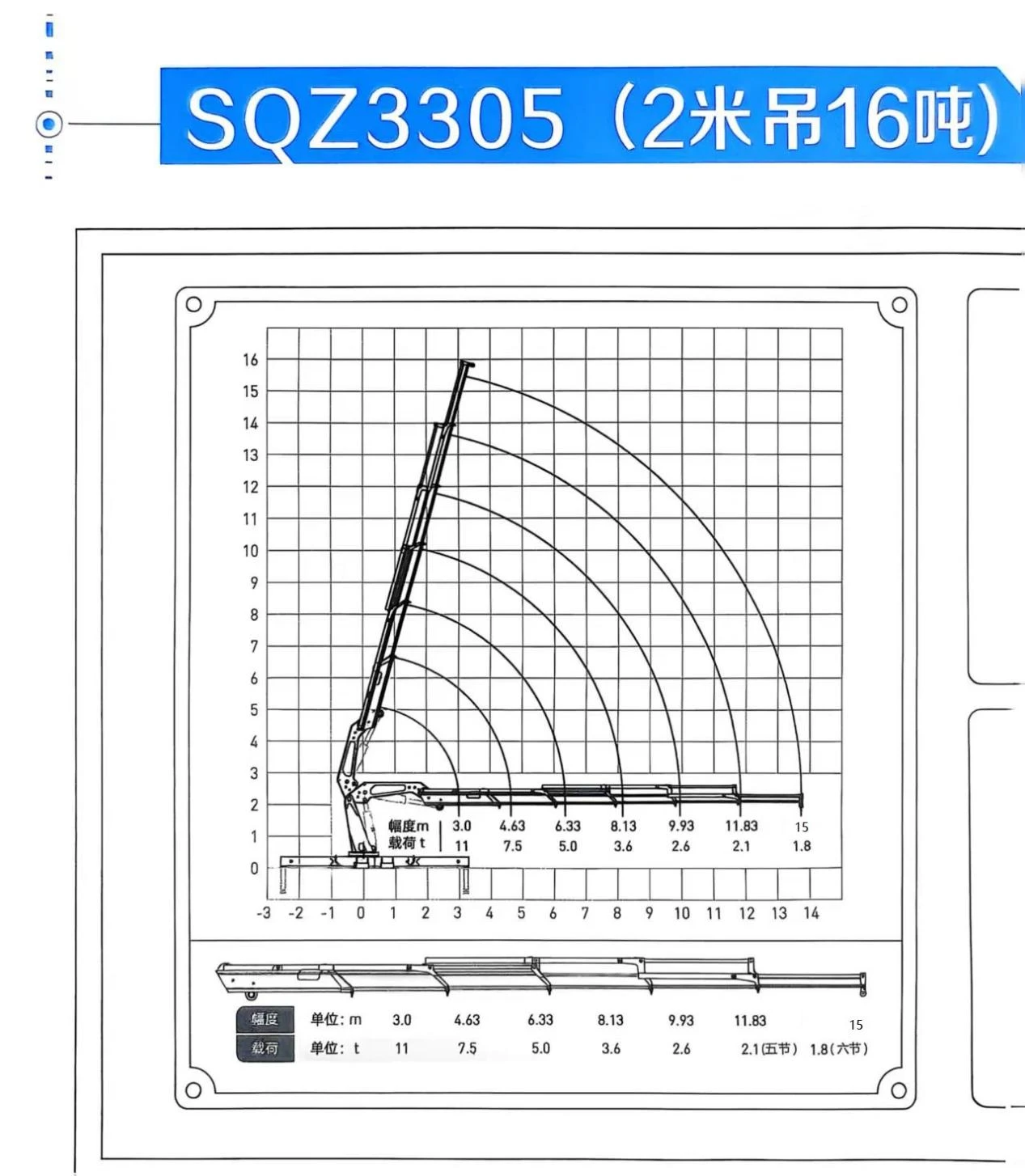

16 seven-section crane, 6-section telescopic, upper operation, double pump, working radius 15 meters, lifting height 17 meters, radiator, one-button start and stop

Cargo box size: 8300*2450*550mm

Vehicle size: length 12000x height 3750x width 2550mm

Weight: 18 tons
