Features of 3TON Folding Arm Truck Crane

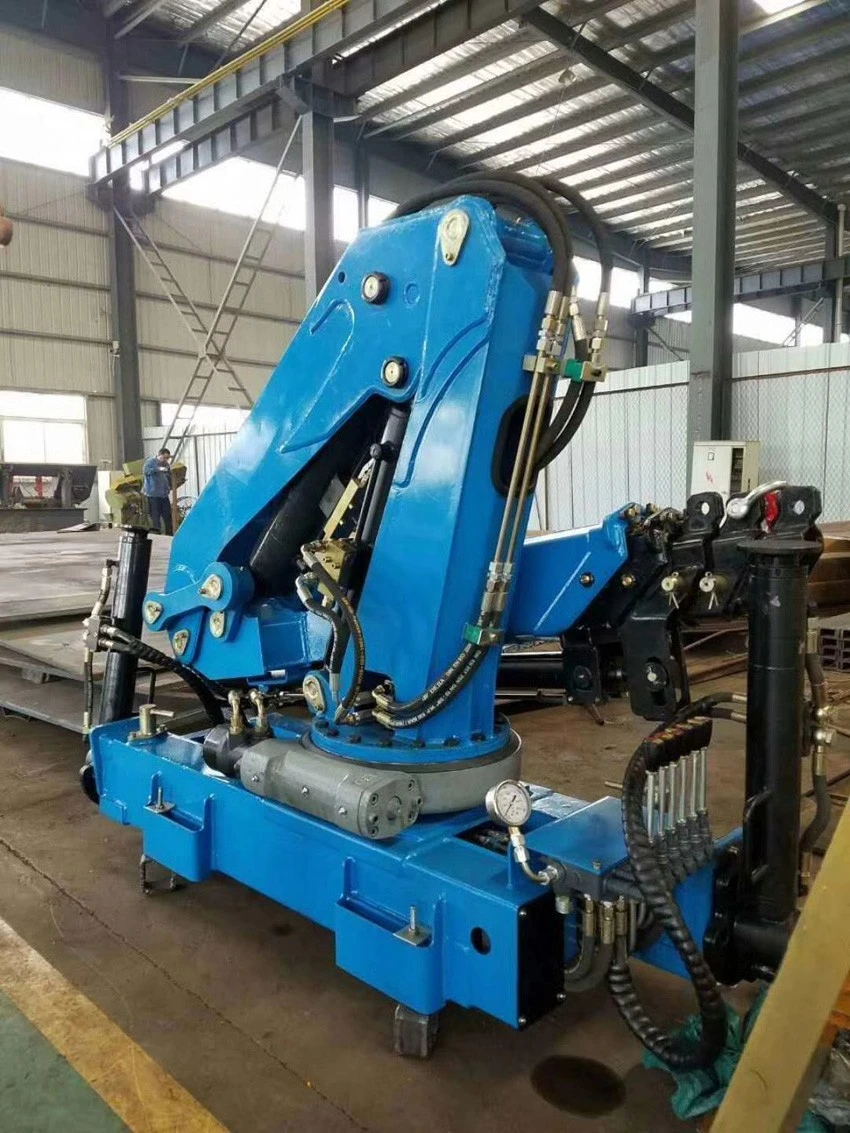

1. Crane configuration: 3-ton full folding arm, two-section hydraulic telescopic arm, two-section hand-pulled arm, maximum working radius 6.3 meters, maximum lifting height 7.6 meters, maximum lifting capacity 1.5 meters , lifting 3 tons, 6.3 meters , lifting 0.35 tons. The center column can be fully rotated 360 degrees by hydraulic pressure and the outriggers can be flipped.

2. Chassis configuration: Xichai 130 horsepower, Wanliyang 5-speed with sub-transmission, 3.36 wheelbase, National V emission standard, 2080 single-row luxury cab, front axle 3.2 tons, rear axle 7 tons, 230 beam, 825-16 nylon tire, with original ABS, lower protective cover, air brake, exhaust brake.

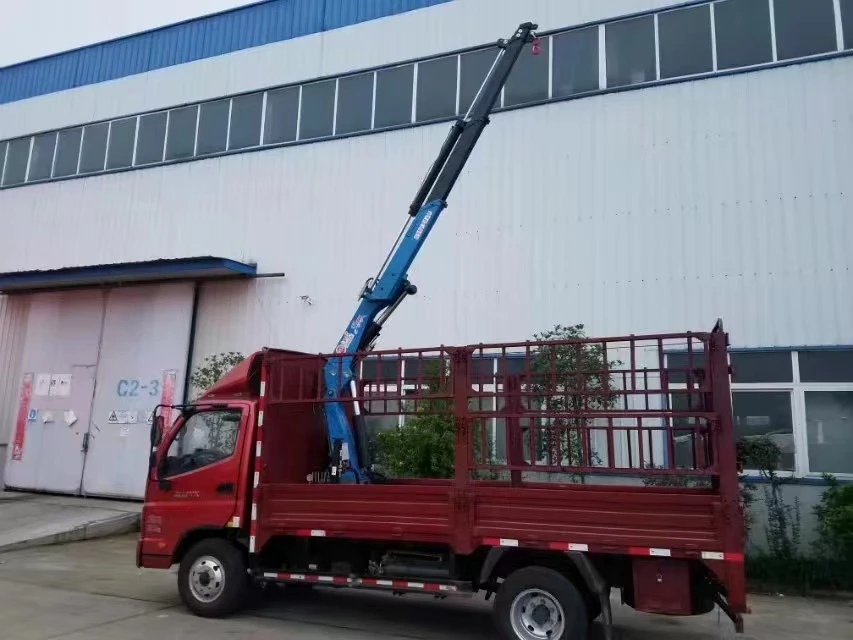

3. Overall structure: The fully foldable structure of the upper body can provide a larger space for carrying goods. It is similar to a truck crane or a car crane and is a type of heavy-duty special operation vehicle. It is modified from a Class II car chassis with a folding arm crane upper body. The main function of this type of vehicle is lifting. Folding arm cranes can be divided into fully folding folding arm cranes and semi-folding folding arm cranes according to the folding arm form. Folding arm cranes are mainly used for lifting large items in low spaces. They are more commonly used inside factories. In addition to the flexible boom and heavy lifting capacity, they are experts inside factories. In addition to factories, heavy lifting under high voltage electricity, bridges, ports and other areas provide more convenience for users.

3TON Folding Arm Truck Crane Technical Parameters
