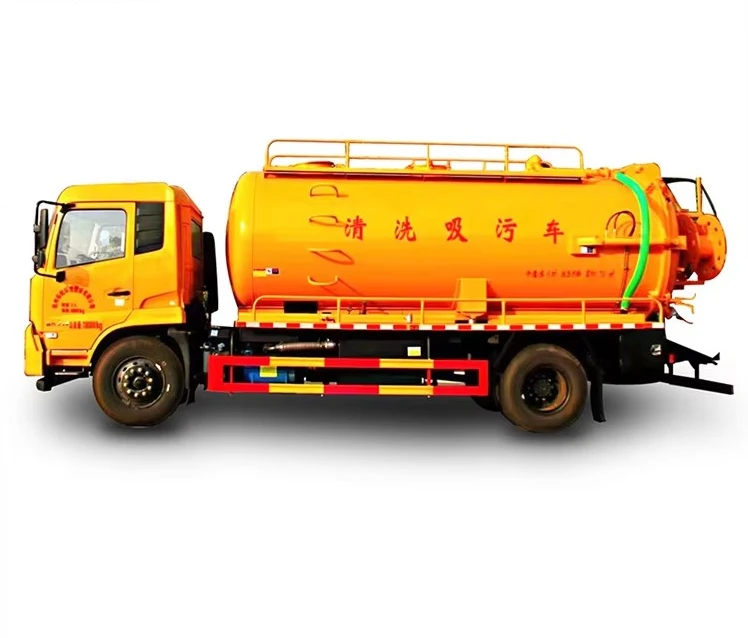

Sewage Suction Truck 22m3

PRODUCT  DESCRIPTION

cleaning and suction truck is mainly used for the suction, transportation, loading and unloading of sewage sludge from various underground sewage pipes, rainwater wells and manholes. It can also be used to collect leaked oil, dirty oil, oily sewage, weak acid, weak alkaline wastewater and other substances. The vehicle can separate and filter the sewage in the tank and then discharge it back to the underground pipeline through the mud and water separation and sewage backflow system, and can also send the materials to the material warehouse at a certain height. The vehicle design, compact structure, strong environmental and road adaptability can meet the road environment operation requirements of cities, communities, factories, mines and towns.

PRODUCT FEATURES

This cleaning and suction truck is modified from the Dongfeng series automobile chassis and has the following advantages:

1. There is sufficient vacuum for suction;

2. Set up secondary protection for the vacuum pump to prevent contamination from entering the pump body;

3. The vacuum pump is manually driven and easy to engage and disengage;

4. The hydraulic oil pump and vacuum pump are synchronized and work reliably

5. Use oil pressure to turn over the tank and unload the mud;

6. Beautiful appearance, easy operation, good performance sewage suction truck

The sewage suction truck is a new type of sanitation vehicle that collects, transfers, cleans and transports sludge and sewage to avoid secondary pollution. The sewage suction truck can self-prime and self-discharge, has a fast working speed, large capacity, and convenient transportation. It is suitable for collecting and transporting feces, mud, etc.



The engine performance of this cleaning and suction truck is strong and powerful, with high configuration. The tank can be opened from behind, and the dirt in the tank can be directly dumped through the rear cover. It has the characteristics of high vacuum, large tonnage, and high efficiency. The tank head is die-casted in one step.


Total weight: 25000 KGCurb weight: 1750 0KG  Rated load capacity: 7305 KG
Dimensions: 10100 * 2500 * 3850  Wheelbase: 4350+1350 Tank volume: 22 cubic meters
Tank material: Wuhan Iron and Steel Tank thickness: 8mm Drain: 150 aluminum alloy ball valve
Sewage suction port: 100 aluminum alloy ball valve Water circulation pump tank: Carbon steel  Vertical Depth: 10-15 M
Horizontal suction distance: 50 -100 MHigh pressure pump type: plunger pump High pressure pump: Pinfu 350 flow
Chassis: Dongfeng Tianlong Chassis model: DFH1250D4 Engine: Cummins 290
Emission standard: National VI Tire: 11.00R20 18PR  Others: According to chassis standard
