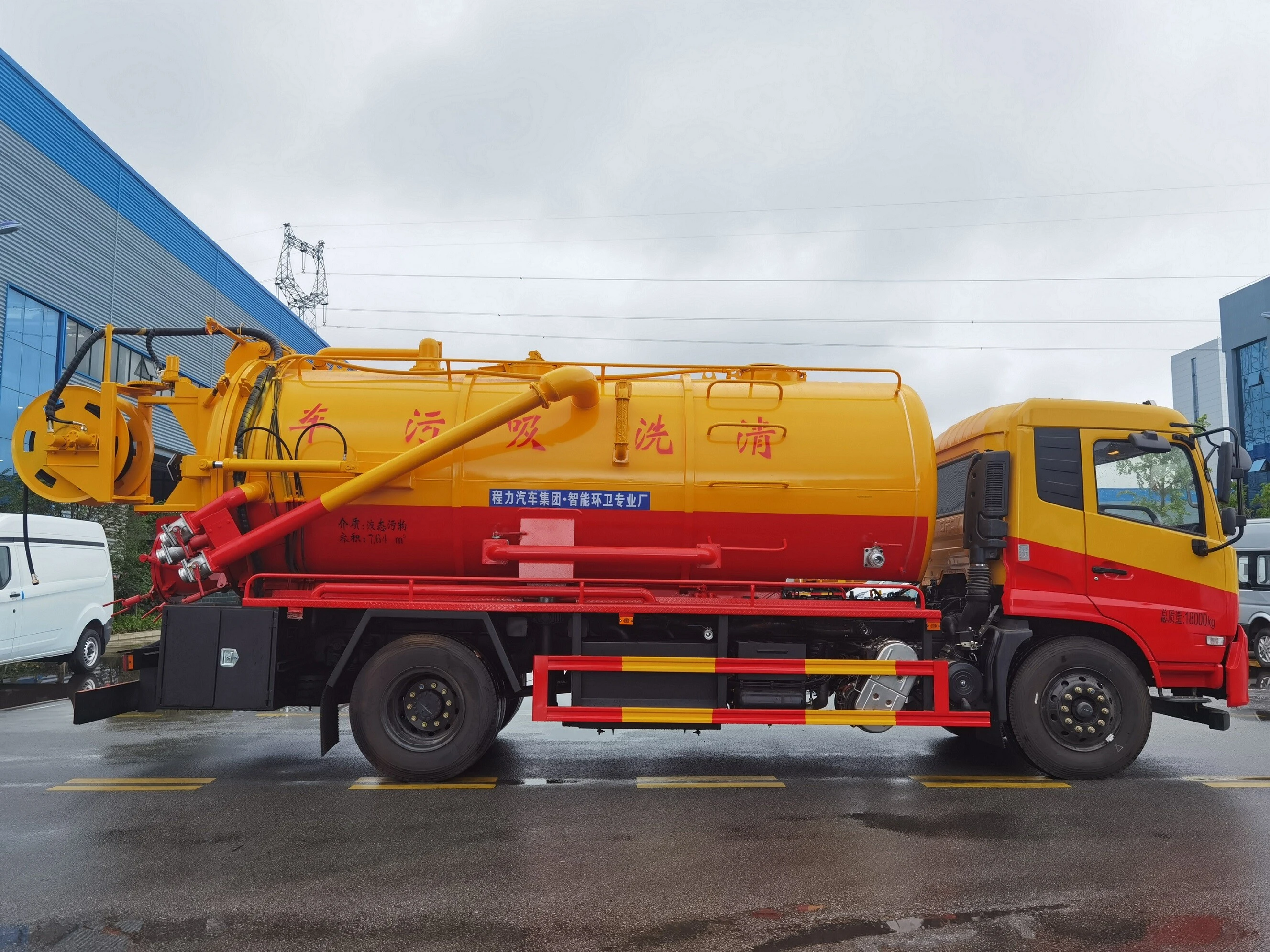

Sewage Suction Truck 33m3

PRODUCT  DESCRIPTION

cleaning and suction truck is mainly used for the suction, transportation, loading and unloading of sewage sludge from various underground sewage pipes, rainwater wells and manholes. It can also be used to collect leaked oil, dirty oil, oily sewage, weak acid, weak alkaline wastewater and other substances. The vehicle can separate and filter the sewage in the tank and then discharge it back to the underground pipeline through the mud and water separation and sewage backflow system, and can also send the materials to the material warehouse at a certain height. The vehicle design, compact structure, strong environmental and road adaptability can meet the road environment operation requirements of cities, communities, factories, mines and towns.

PRODUCT FEATURES

This cleaning and suction truck is modified from the Dongfeng series automobile chassis and has the following advantages:

1. There is sufficient vacuum for suction;

2. Set up secondary protection for the vacuum pump to prevent contamination from entering the pump body;

3. The vacuum pump is manually driven and easy to engage and disengage;

4. The hydraulic oil pump and vacuum pump are synchronized and work reliably

5. Use oil pressure to turn over the tank and unload the mud;

6. Beautiful appearance, easy operation, good performance sewage suction truck

The sewage suction truck is a new type of sanitation vehicle that collects, transfers, cleans and transports sludge and sewage to avoid secondary pollution. The sewage suction truck can self-prime and self-discharge, has a fast working speed, large capacity, and convenient transportation. It is suitable for collecting and transporting feces, mud, etc.


Total weight: 31000 KGCurb weight: 19565 KG  Rated load capacity: 11305 KG
Dimensions: 12000 *2 55 0* 3990  Wheelbase: 2050+4400+1350 Tank volume: 33 cubic meters
Tank material: Wuhan Iron and Steel  Tank thickness: 8mm Sewage outlet: 600 hydraulic door
Sewage suction port: 100 ball valve Water circulation pump tank: Carbon steel  Vertical Depth: 10-15 M
Horizontal suction distance: 50 -100 MHigh pressure pump type: plunger pump High pressure pump: Pinfu 350 flow
Chassis: Dongfeng Tianlong Chassis Model: DFH1310A12 Engine: DDI-465
Emission standard: National VI Tire: 11.00R20 18PR  Others: According to chassis standard
