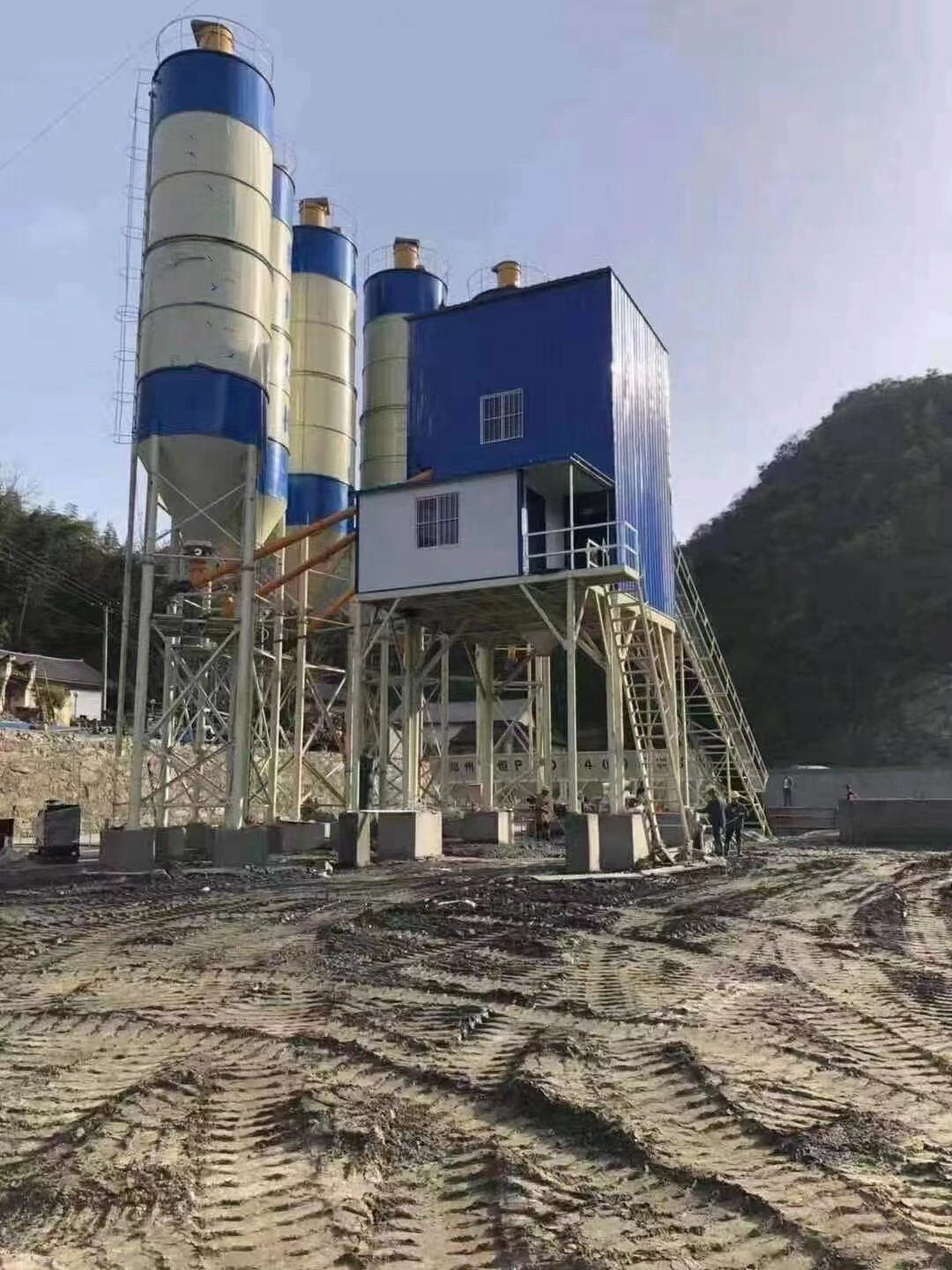

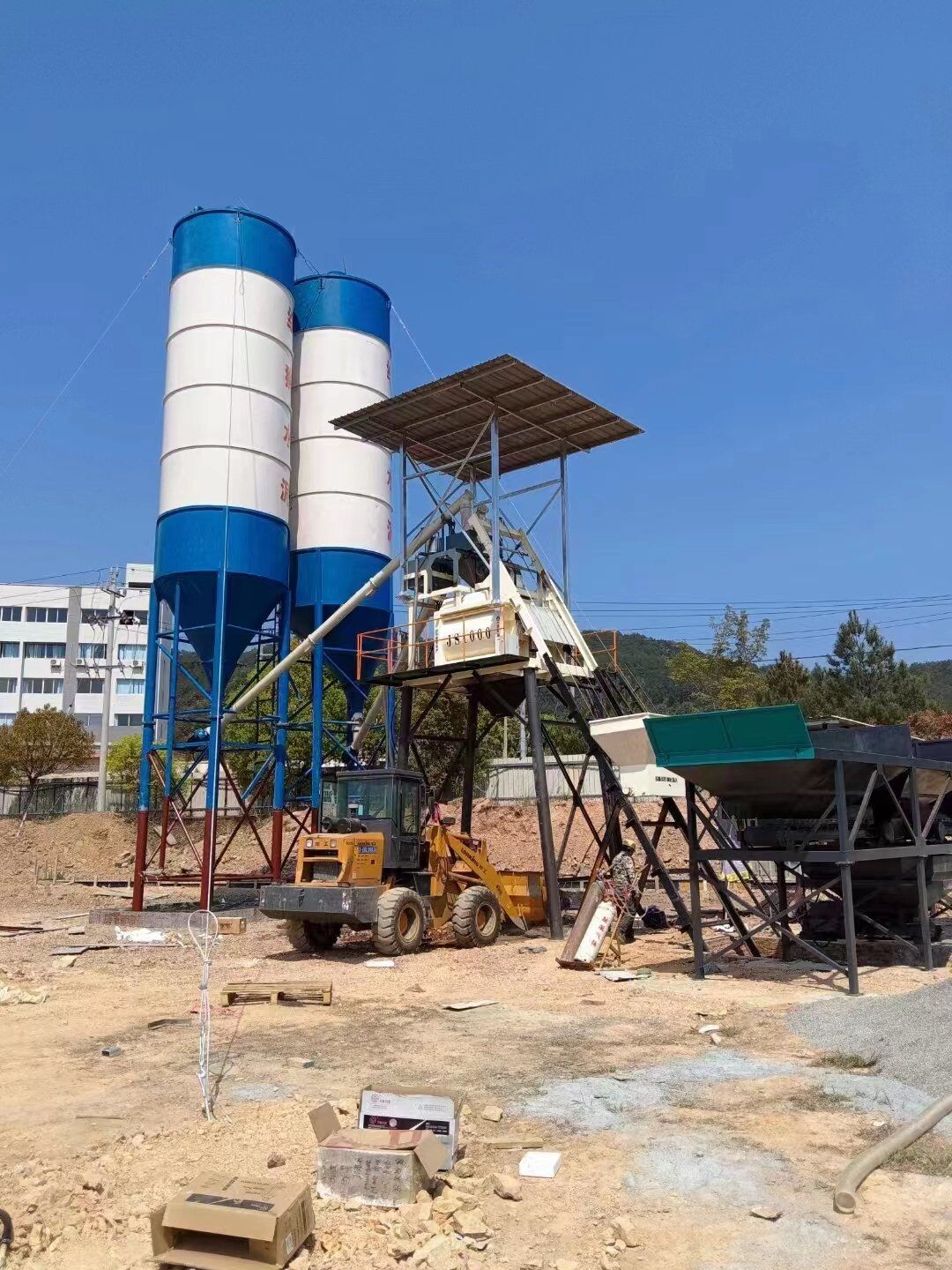

Concrete Mixing Plant Double HZS60

Product Introduction


Concrete mixing station is mainly composed of five systems including mixing host, material weighing system, material conveying system, material storage system and control system and other ancillary facilities. Compared with the aggregate measurement of the station, the aggregate measurement of the floor reduces four intermediate links, and the material measurement is vertical, which saves the measurement time and greatly improves the production efficiency.


ltemTheoretical capacityModel of mixerMixing motor power
HZS6060m/hJS1500 Ⅰ/Ⅱ2x 22kw
Number of kinds of aggregateMax.aggregte sizesDischarge heightmaximum  weighingvalue of aggergate
4≤80mm4m4000kg
maximum weighingvalue of cementmaximum weighingvalue of coal ashmaximum weighingvalue of watermaximum weighingvalue of addifive
1200kg600kg600kg50kg
Overall dimension(LxWxH)
- typeL type
37000x14000x10828mm40097x20710x10828mm
