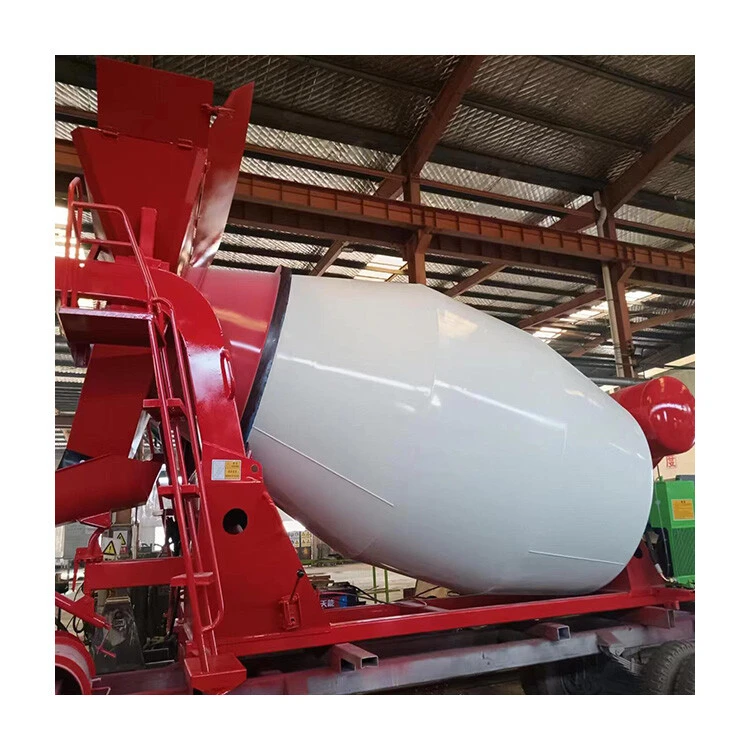

Concrete Mixer Drum 8CBM

Product Description

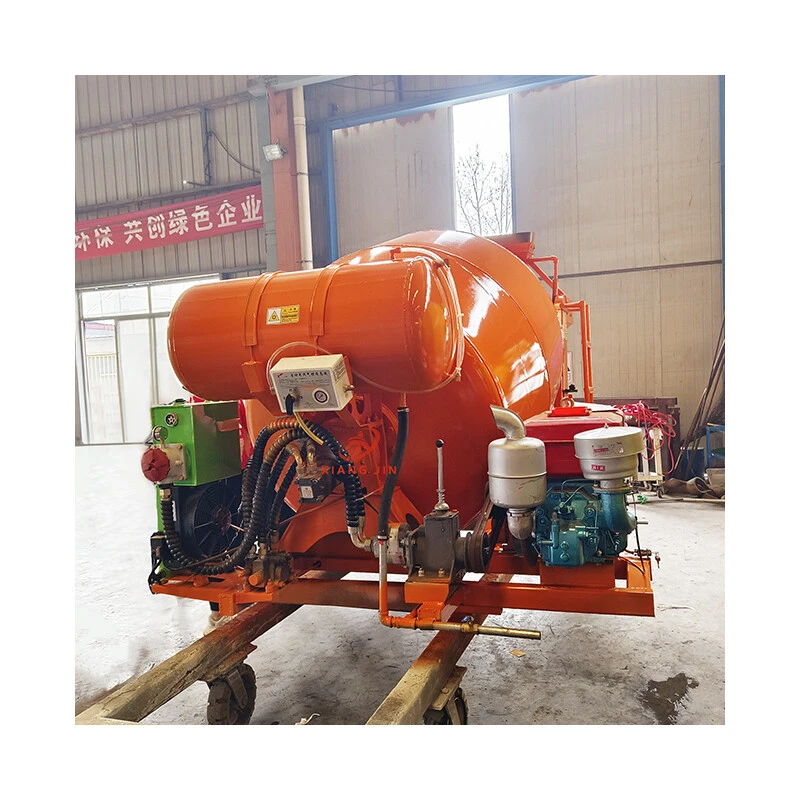

The mixing tank includes the tank body, sub-beam, a complete set of hydraulic motors, oil pumps, reducers, multi-way valves, water system, inlet and outlet hoppers, connectors and other accessories.


ReducerKeyi 8 CBM
Forced stirring to increase the feed hopper/mm1800(optional)
Water supply system320L water tank air pressure water supply
valveDL-20
Upper body/mm5518*2435*2650 (length*width*height)
Ladder/mmThe top is 3457cm above the ground, the bottom is 1345cm
Large frame/mm4300*800 (length*width); rectangular tube specifications 100*80*8
Feeding speed≥3m³/min
Discharging speed≥1m³/min
Discharge residual rate≤0.5%
How it worksPost-operation
Slide trough/mmThe first section is 1870 meters above the ground; the first section is 1300 meters long, and the second section is 750 meters long.
Water tank/mm1200*590 (length*width)
Water tank bracket/mmDiameter 590
Water inlet pipe/mmLeft side: Installation position 2825m from rear
Spacing between supporting rollers/mm930 (center distance)
Discharge hopper/mmφ1100-1648
Feed hopper/mmThe upper opening size of the feed hopper is 1068*934, the side bracket is 580 long and 80 wide, and the rear bracket is 390 long and 190 wide (upper)/80 (lower)
Fasteners and hydraulic fittingsSurface galvanized; assembly of locking nut and spring washer
