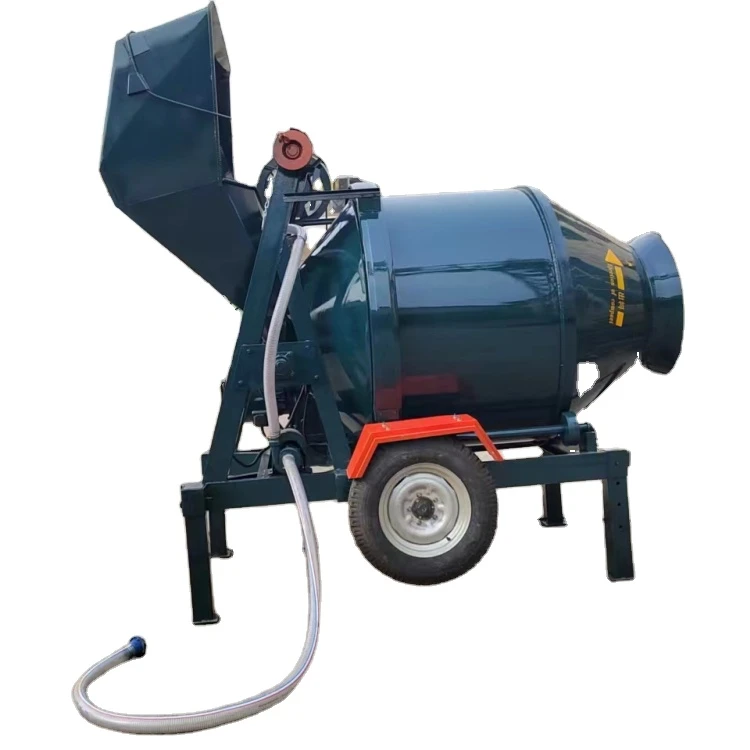

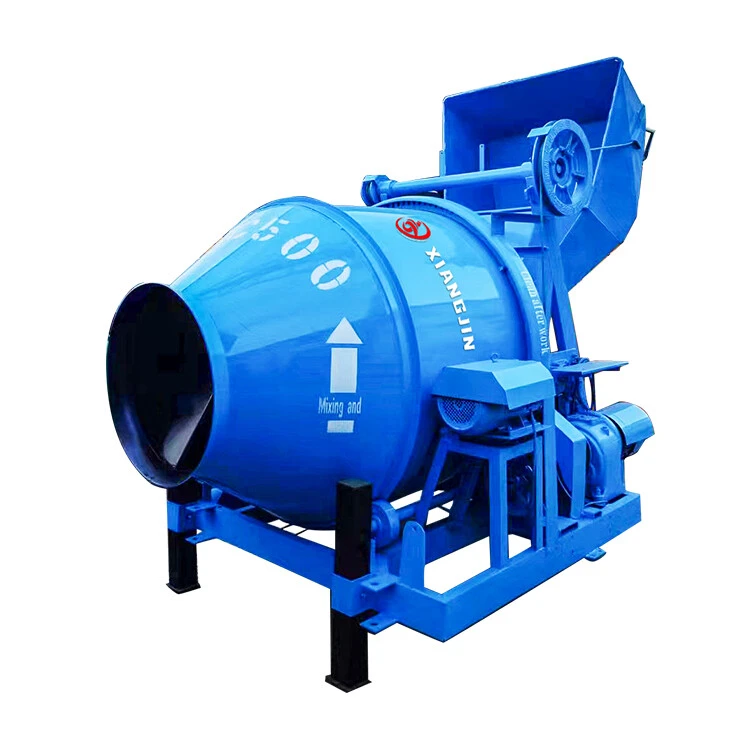

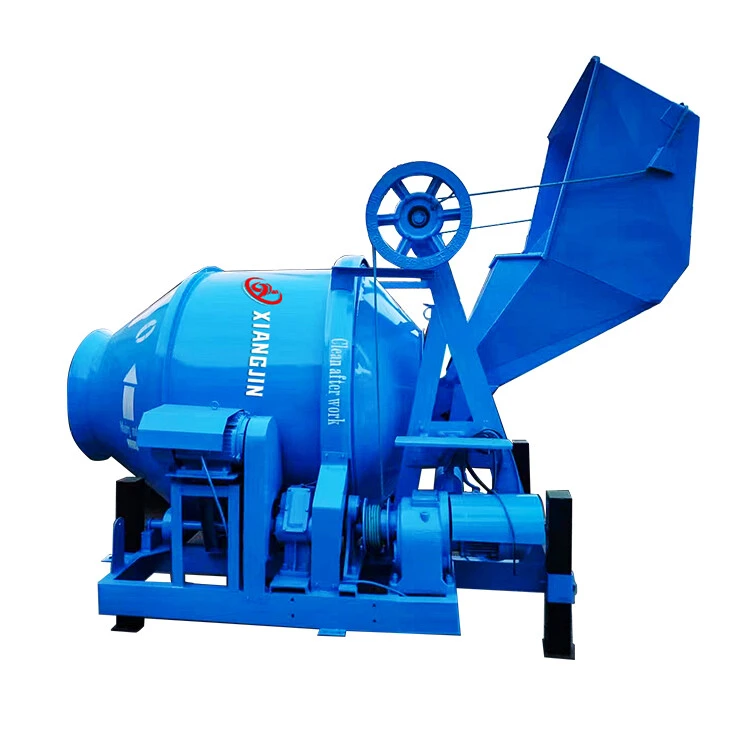

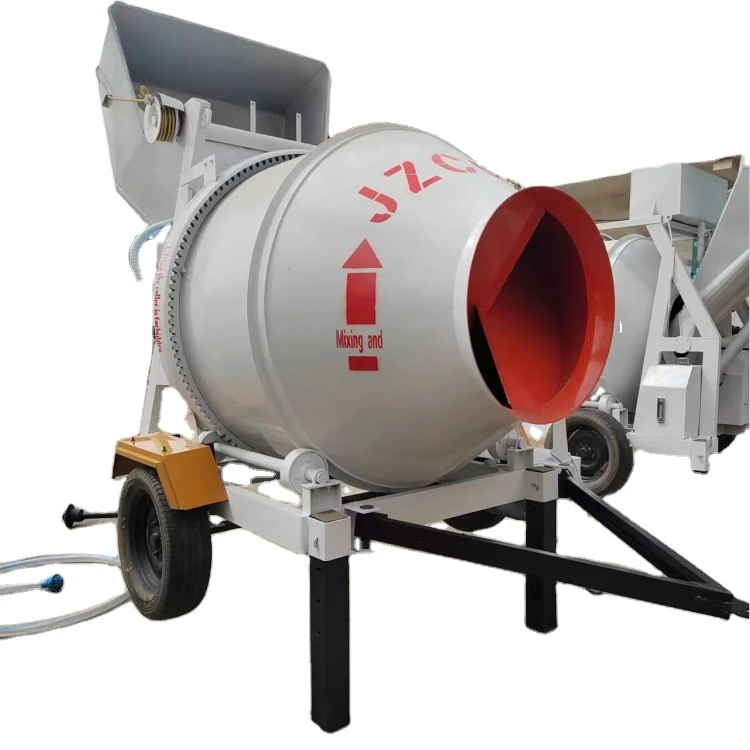

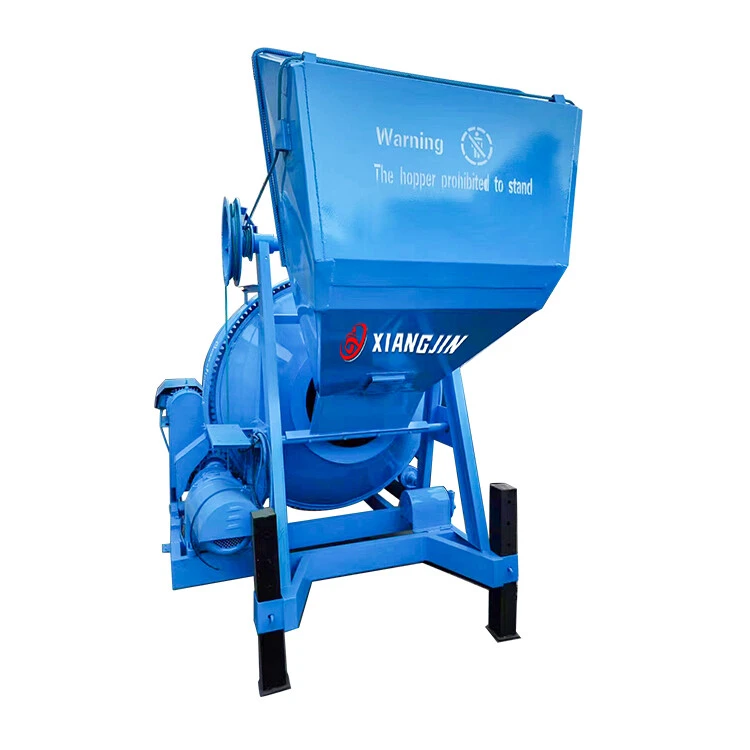

Concrete Mixer

Product Description

A concrete mixer is a machine that mixes cement, sand and gravel aggregates and water to make concrete mixture. It is mainly composed of a mixing drum, a feeding and unloading mechanism, a water supply system, a prime mover, a transmission mechanism, a frame and a supporting device.


Discharge capacity500L
Feed capacity800L
productivity10-14m3/h
speed14 rpm
Loading dimensions2.9x1.7x2.4m
Maximum aggregate size60mm
Maximum towing speed10-15 km/h
Overall weight1200KG
Water supply accuracyError ≤ 2%
Mixing motor5.5kw
Lifting motor4.5kw
Water pump0.55kw
Vibrator0.55kw
Electric control panelfor a special purpose
Travel switchfor a special purpose
barrelΦ1448mm     L1020mm
Feeding hopper1330mm*750mm*2100mm
Longmen frame14 # National Standard Channel Steel
Bottom shelf14 # National Standard Channel Steel
