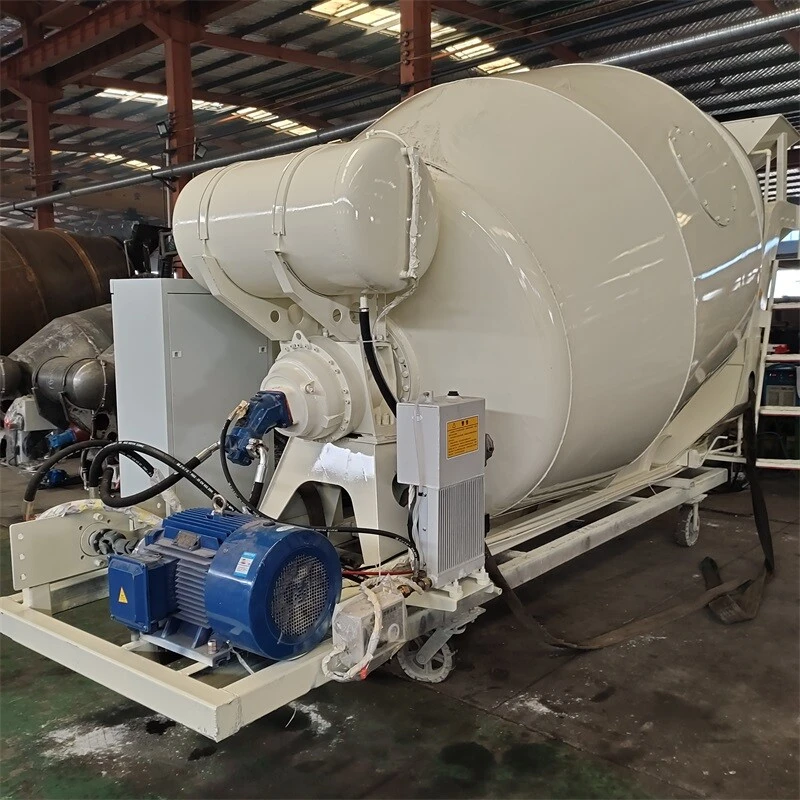

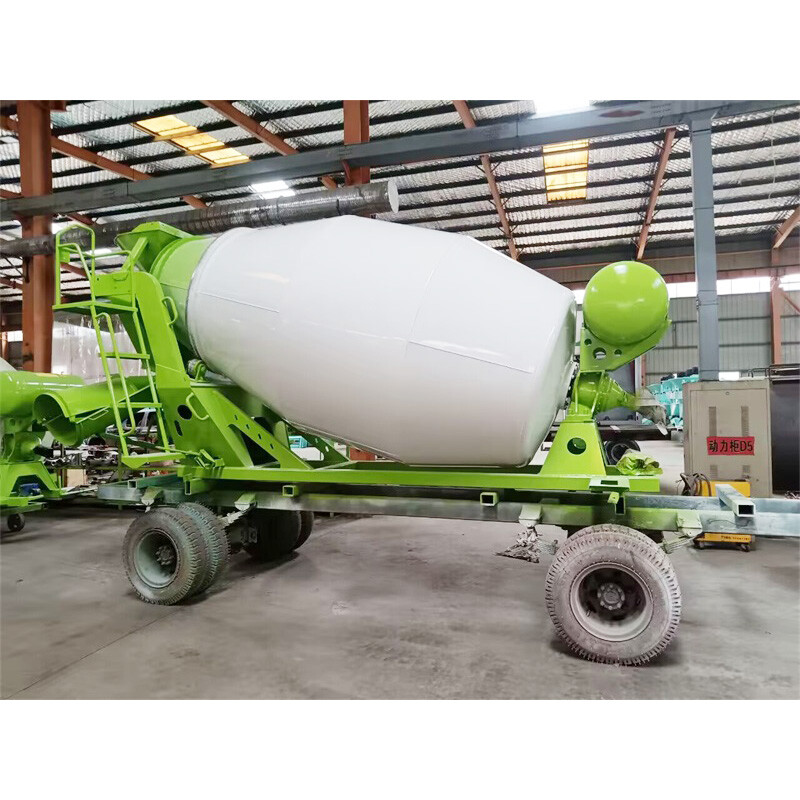

Concrete Mixer Drum

Product Description

The mixing tank includes the tank body, sub-beam, a complete set of hydraulic motors, oil pumps, reducers, multi-way valves, water system, inlet and outlet hoppers, connectors and other accessories


Product Features

  • Tank material: high strength wear-resistant Q345B steel, thickness 4mm, shot blasting anti-rust treatment

  • Blade material: 4# thick alloy steel (with wear-resistant strip to improve service life)

  • Water supply system: 400L water tank pneumatic water supply

  • Feeding speed: Feeding speed m3/min ≥ 3

  • Discharge residual rate: discharge residual rate (%) ≤ 0.5

  • Discharge range: 180 ° up and down, left and right height adjustment

  • Head material: alloy steel thickness 5mm

  • Heat dissipation system: Xinxiang radiator 18 liters

  • Discharge speed: Material speed m3/min ≥ 1

  • Operation mode: left and right side / cab tripartite operation

  • Safety device: Leakage receiving device is added


The parameters of the mixer truck
Material of tankUsing high strength wear-resisting Q345B steel, thickness of 4mm, shot blasting anti-rust
Blade materia:4# thick alloy steel (with wear resistant strip to improve the service lifeHead material:Thickness of alloy steel5mm
Water supply system: 400LWater tank pneumatic water supplyRadiator system:Xinxiang radiator 18 litres
Approaching speed: approaching speed m3/min≥3Output speed:Approaching,speed m3/min ≥ 1
Discharge residual rate: residual rate(%)≤0.5Operating modeLeft and right sides / cab three-way operation
Unloading range: 180°Height adjustment up, down, left and rightSafety equipment: Install leakage receiving device
