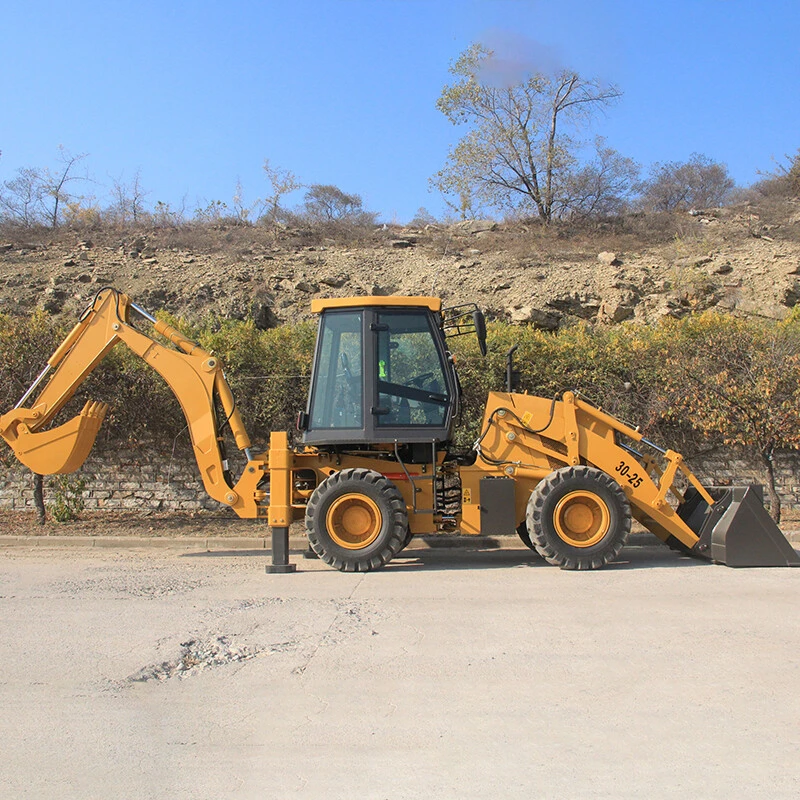

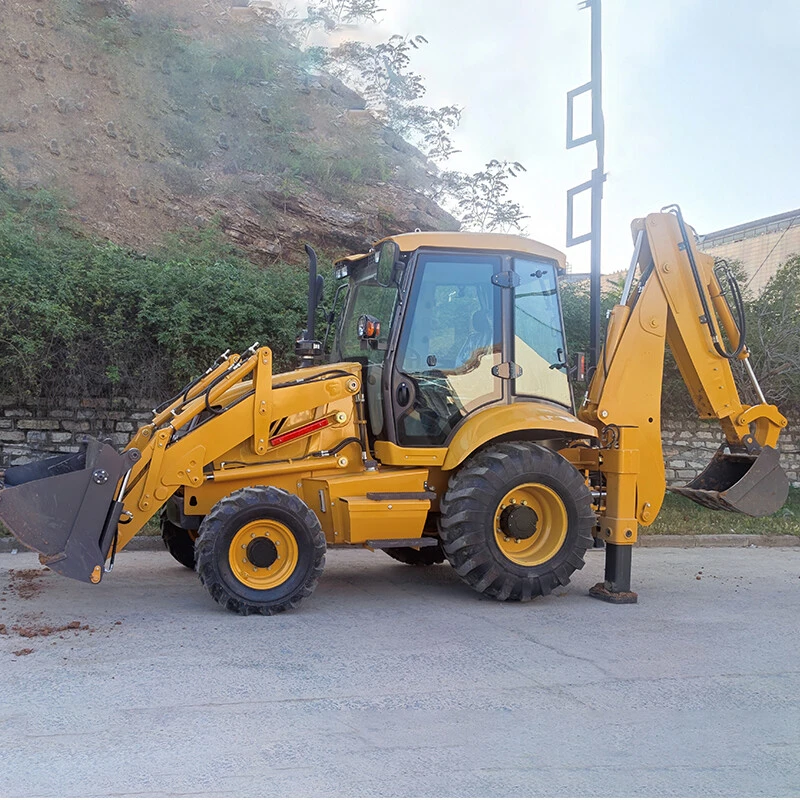

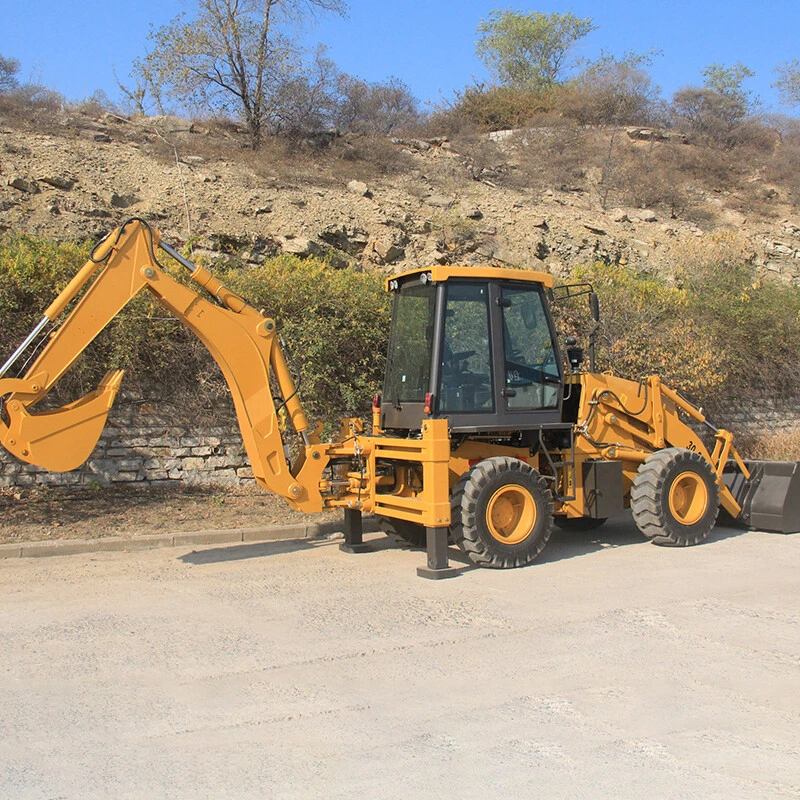

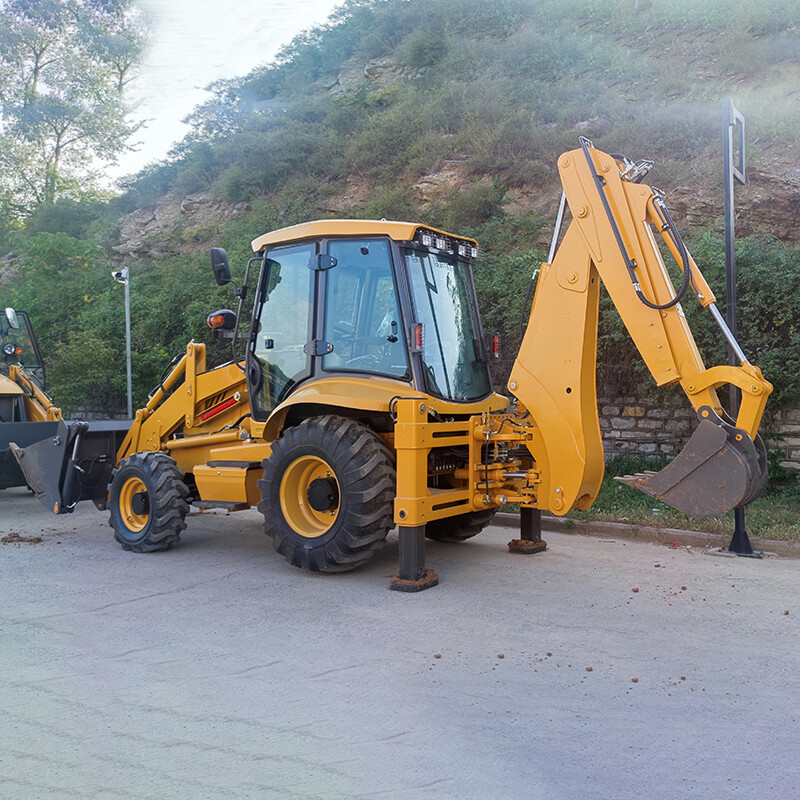

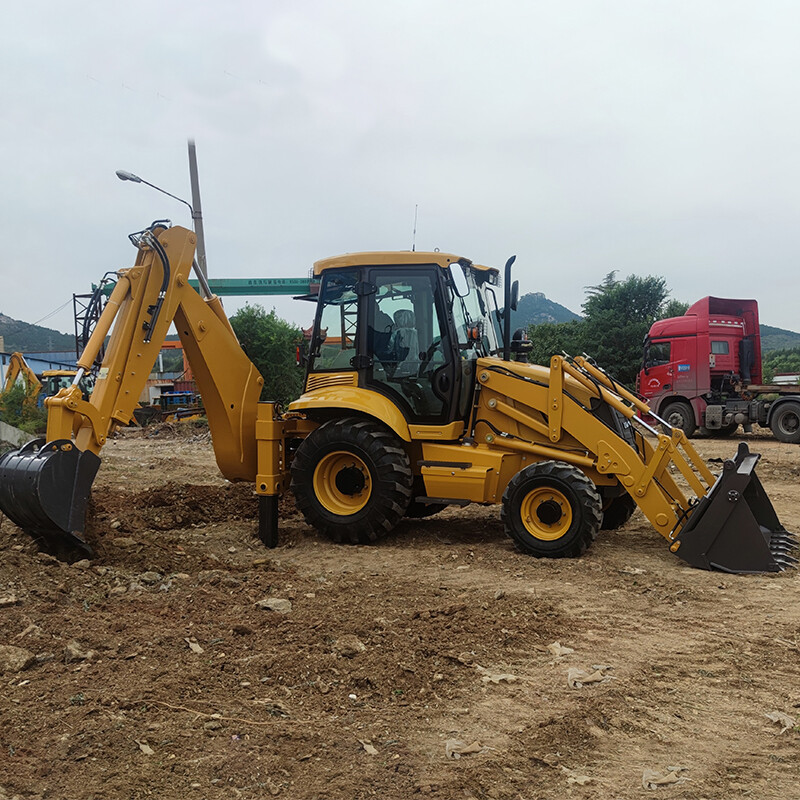

Backhoe Loader 388T

Product Introduction

Backhoe loader is a single device that consists of three pieces of construction equipment. It is commonly known as "two-headed". During construction, the operator can switch the working end by simply turning the seat. The main work of a backhoe loader is to dig trenches to lay pipes and underground cables, lay foundations for buildings and establish drainage systems.



The main reason why backhoe loaders appear on all construction sites is that various projects require digging and moving soil. Backhoe loaders should be compact and can be moved around various construction sites and even run on roads. Contractors need to carry out both excavation and loading operations, and using backhoe loaders can save a lot of time and money.


l  Overall Dimension
1Length(with bucket on ground)7600mm
2Overall width(at stabilizer )2230mm
3Load Bucket width2220mm
4Height(To the top of the cab)3100mm
5Height(To the top of the digging pole)3800 mm
6Wheel base2100 mm
7Back wheel Tread1750 mm
l  Main Loading Technical Specification
1Rated load2500KG
2Operating weight7820kg
3Rated bucket capacity1m³
4Max. dump clearance2720 mm
5Dump reach900 mm
6Min. turning radius

(1) Outside of bucket5410mm

(2) Center of front wheel4100mm
7Max lifting capability2500KG
8Max. load breakout force≥45KN
l  Main Digging Technical Specification
1Rated digging bucket capacity0.3m³
2Max. digging depth4080 mm
3Max. digging radius5600 mm
4Max. dumping height3795 mm
5Max. digging  force≥44KN
6Max. Digging Height5467 mm
l  Diesel engine
1ModelWei Chai  WP4G95E221
2TypeDirect injection. Turbocharged. Water cooling
3Rated output70 (kW)
5Total exhaust of cylinder4.5(L)
9Rated speed2200(r/min)
10Max. Torque380(N.M)
l  Transmission System
1 Torque ConverterModelCARRARO


Cooling typePressure oil circulating
2Transmission case变速箱ModelCARRARO


TypeSynchromesh mechanical shift
3Axle and Tire桥ModelCARRARO


Type of main reducerspiral bevel gear, single stage


Main transmission formSingle stage spiral bevel gear


Type of final reducerSingle stage planetary


Final drive formsingle stage planet gear
4Gear shift position4 F、 4 R
5Speed (F/R)36km/h
6Max. drawing force≥67KN
7Size of tirefront wheel14-17.5-16PR


rear wheel19.5L-24-14PR
l  Oil Capacity
1Fuel(diesel)130 L
2Engine lubricating oil11 L
3Oil for converter and gear box22 L
4Oil for hydraulic system110 L
5Oil for driving axles(F/R)7.6 L+17 L
