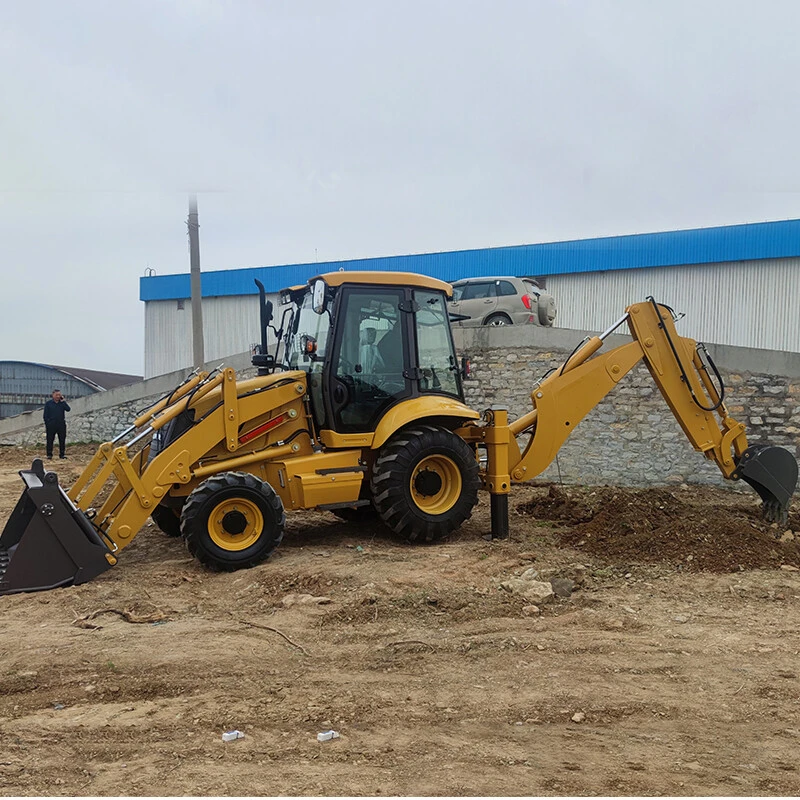

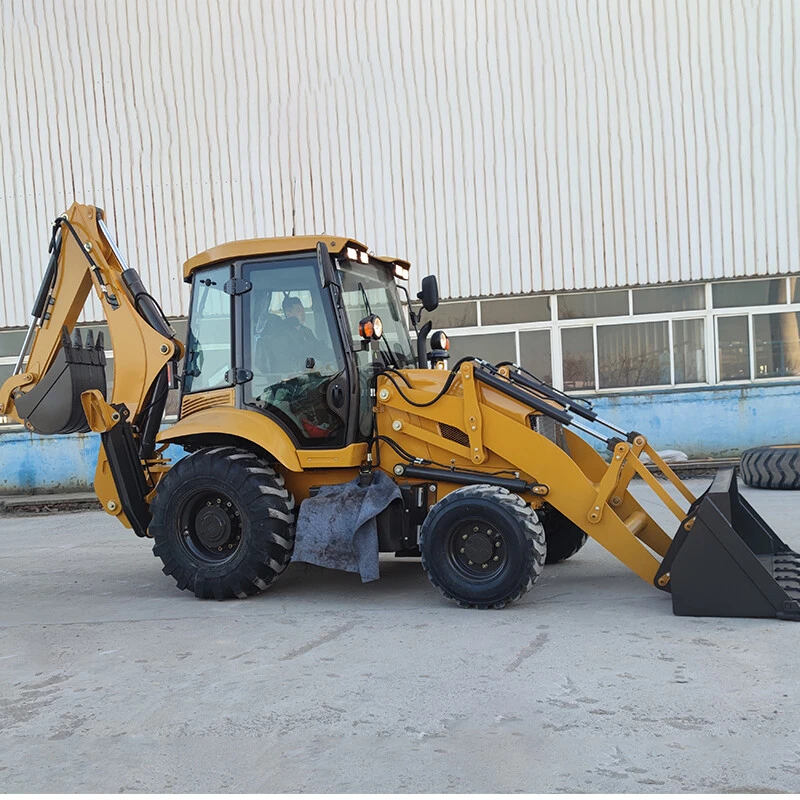

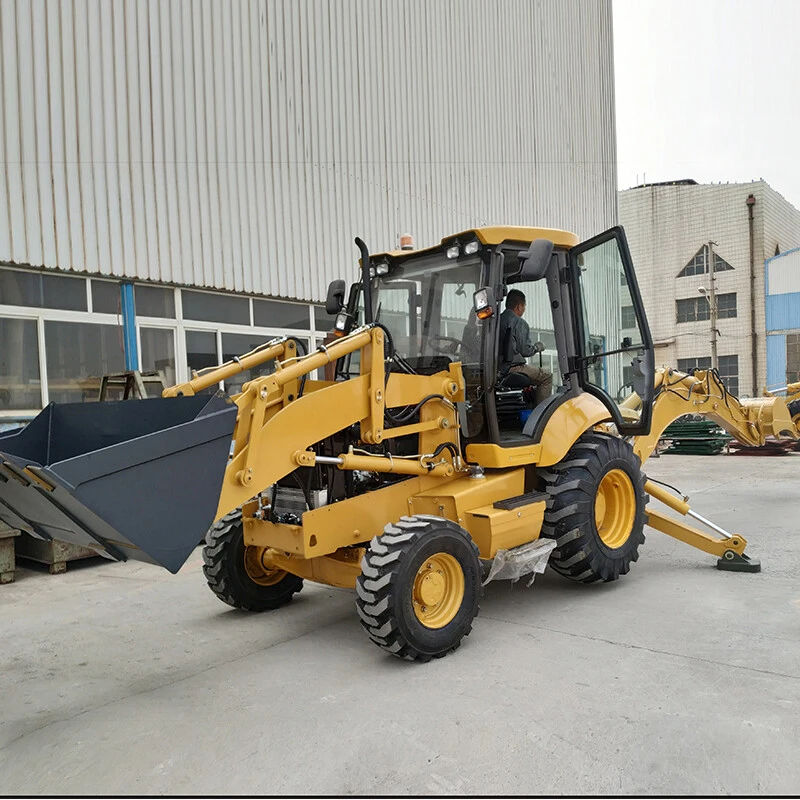

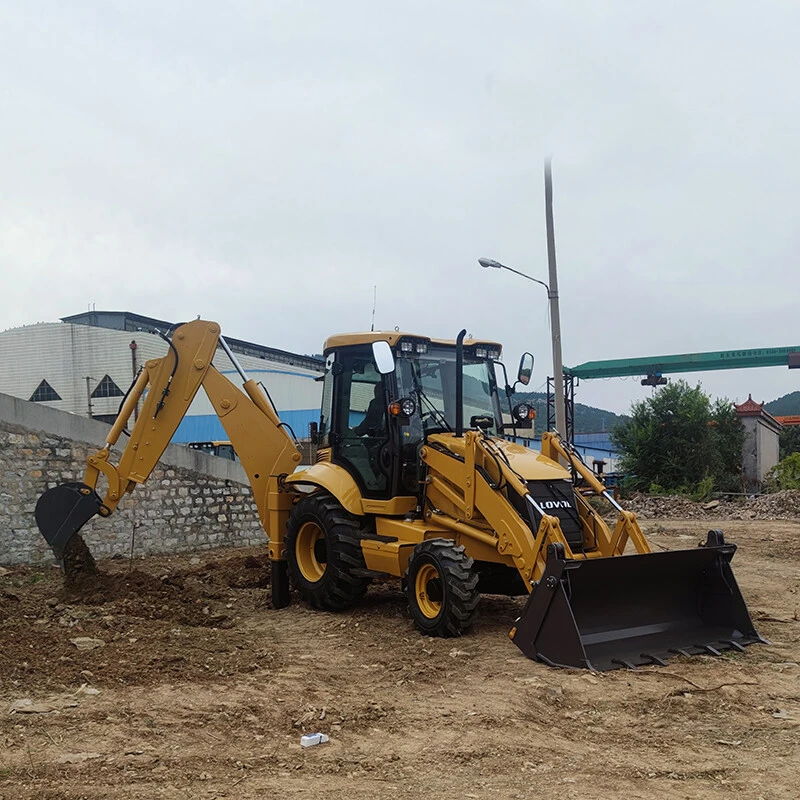

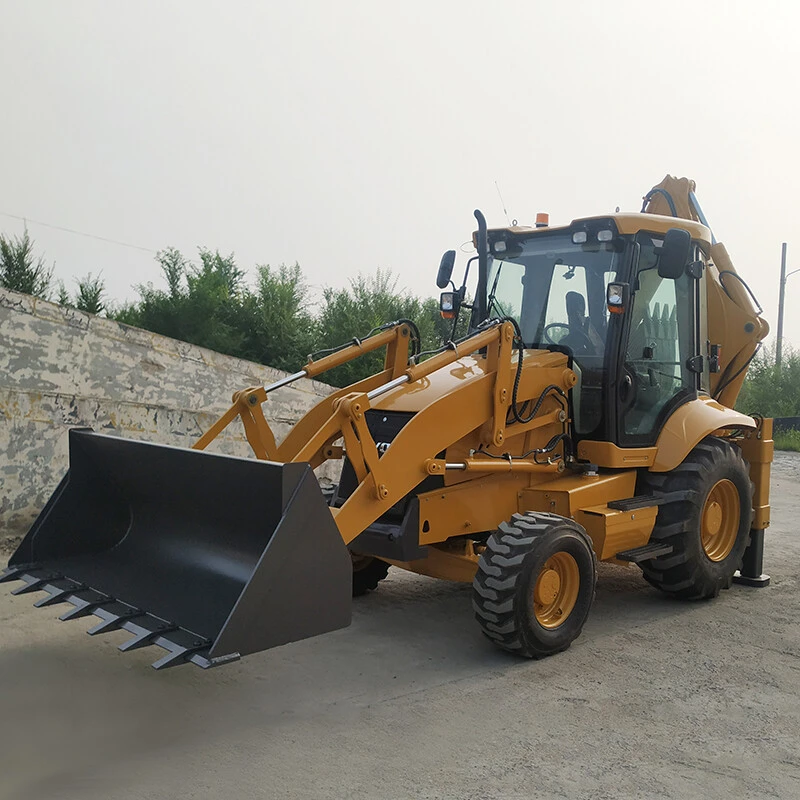

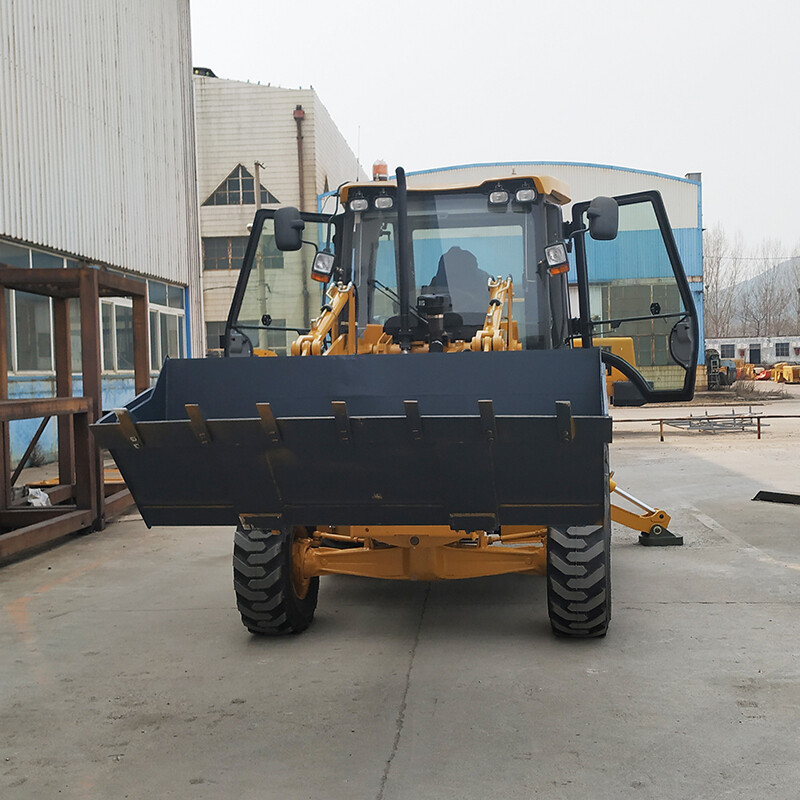

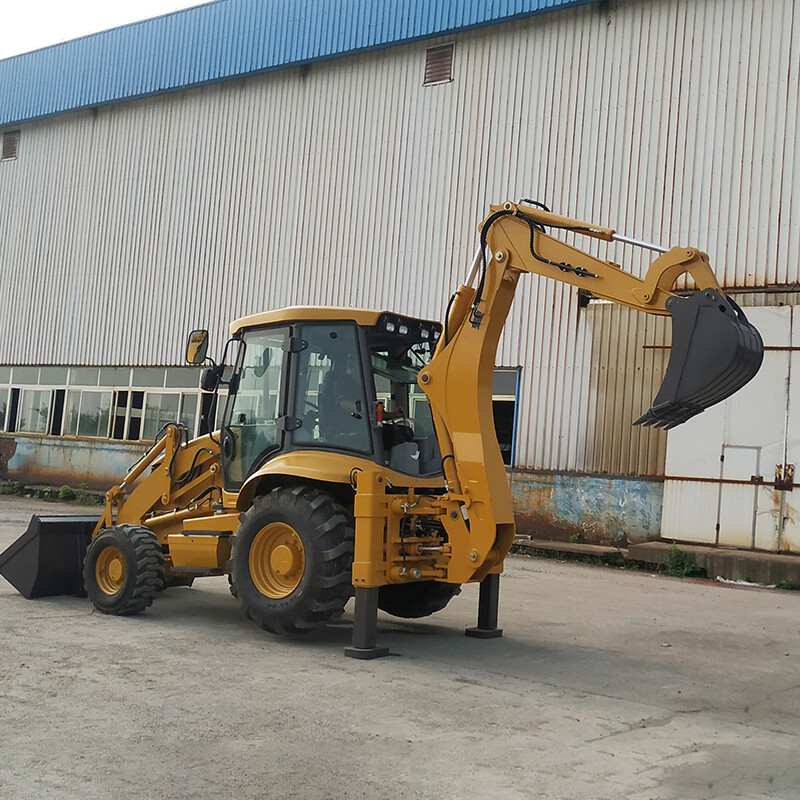

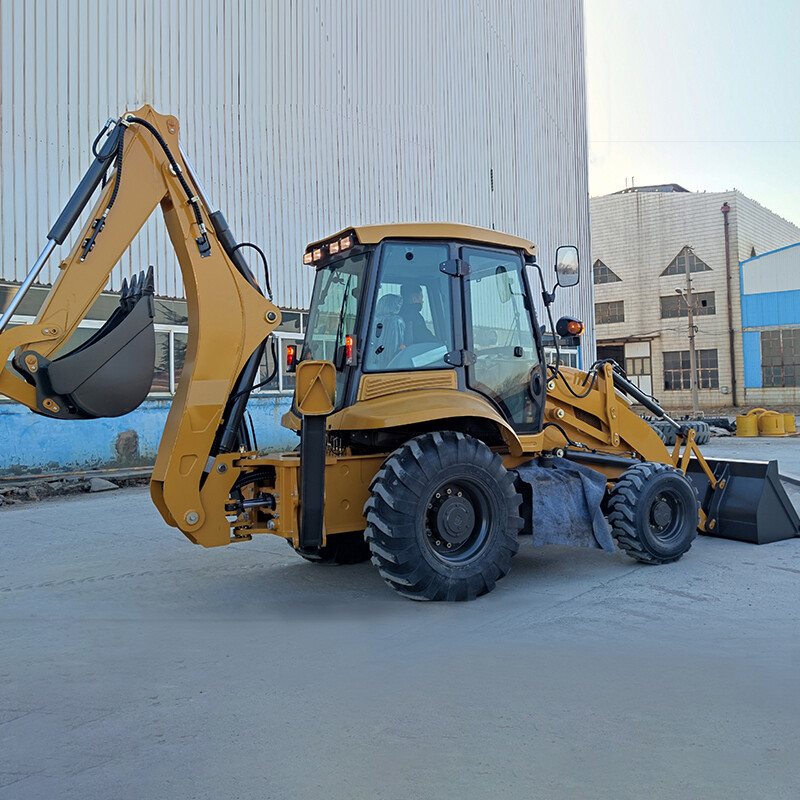

Backhoe Loader 388H(4TX)

Product Introduction

Backhoe loader is a single device that consists of three pieces of construction equipment. It is commonly known as "two-headed". During construction, the operator can switch the working end by simply turning the seat. The main work of a backhoe loader is to dig trenches to lay pipes and underground cables, lay foundations for buildings and establish drainage systems.



The main reason why backhoe loaders appear on all construction sites is that various projects require digging and moving soil. Backhoe loaders should be compact and can be moved around various construction sites and even run on roads. Contractors need to carry out both excavation and loading operations, and using backhoe loaders can save a lot of time and money.


l  Overall Dimension
1Length(with bucket on ground)  )6450±80mm
2Overall width(at stabilizer )2490±10mm
3Load Bucket width2490±10mm
4Height(To the top of the cab)3120±10mm
5Height(To the top of the digging pole)3602 ±20mm
6Wheel base2335±10 mm
7Back wheel Tread2139 ±10mm
l  Main Loading Technical Specification
1Rated load2500KG
2Operating weight9120kg
3Rated bucket capacity1.2m³
4Max. dump clearance3050±50 mm
5Dump reach870±20 mm
6Outside of bucket6420±100mm
l  Main Digging Technical Specification
1Rated digging bucket capacity0.3m³
2Max. digging depth3820±20 mm
3Max. digging radius5345±20mm
4Max. dumping height3740±20mm
5Max. digging  forcekgf
6Max. Digging Height5470 ±20mm
7Lifting force at maximum digging radius1220kg
8Max. digging depth (telescopic arm)4970±20 mm
9Max. loading height (telescopic arm)4983±20mm
10Max. digging height (telescopic arm)6680±20mm
l  Diesel engine
1ModelYC4A105Z-T20
2Typewater-cooling
3Rated output75 (kW)
4Total exhaust of cylinder4.8(L)
5Rated speed2200(r/min)
6Max. Torque400(N.M)
l  Transmission System
1 Torque ConverterModelYJ320


Cooling typePressure oil circulating
2Transmission caseModel15


TypeSynchromesh mechanical shift
3Axle and TireModelWZL100
4Gear shift position4 F、 4 R
5Speed(F/R)km/hF1,5km/h;F2,10km/h;F3,18km/h;F4,32km/h;R1,5km/h;R2,10km/h;R3,18km/h;R4,32km/h;
6Size of tire               16.9-28
The hydraulic system
1Working pump discharge63ml/r
2Working pump pressure20Mpa
3Type of steering gearBZZ-500
Excavating equipment (crushing hammer)
1Drill rod diameter  68-70mm
2Pressure of work11-14Mpa
3The impact frequency  500-900
4Flow range25-45L/min
5The kinetic energy  49  KN
l  Oil Capacity
1The hydraulic oil tank125
2Diesel fuel tank125
