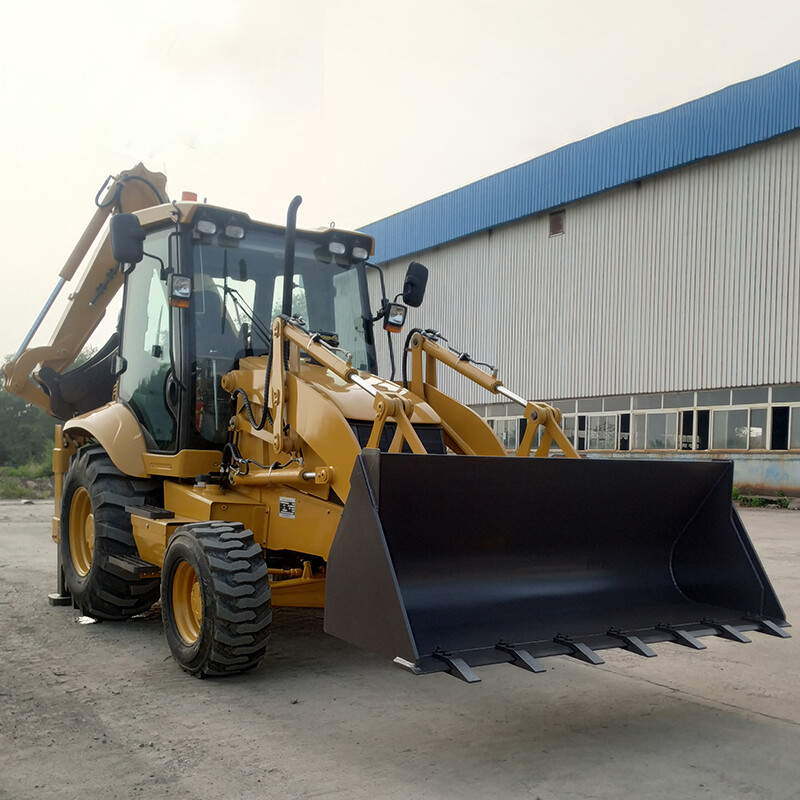

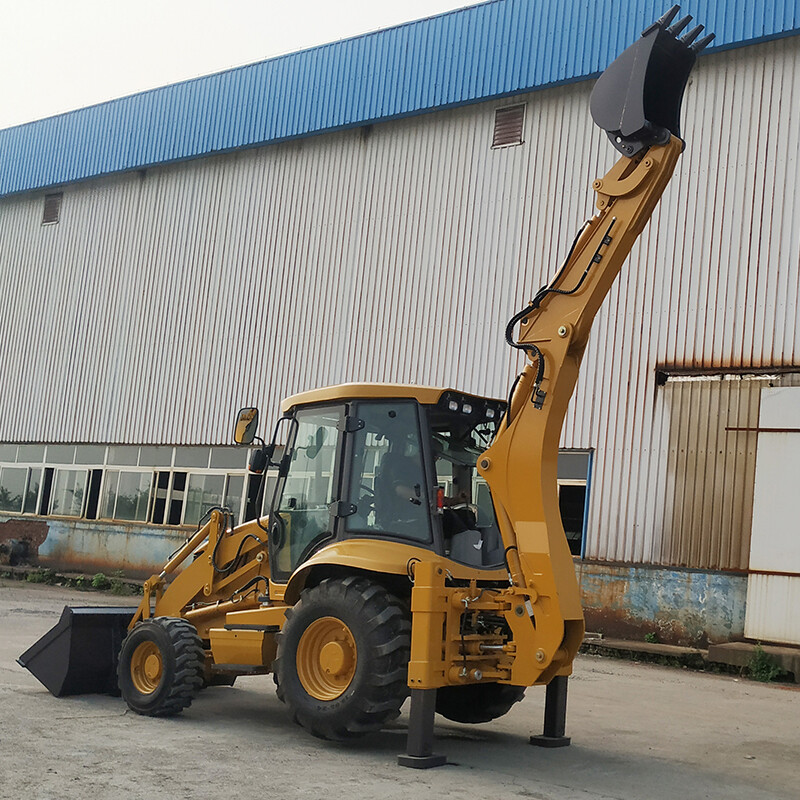

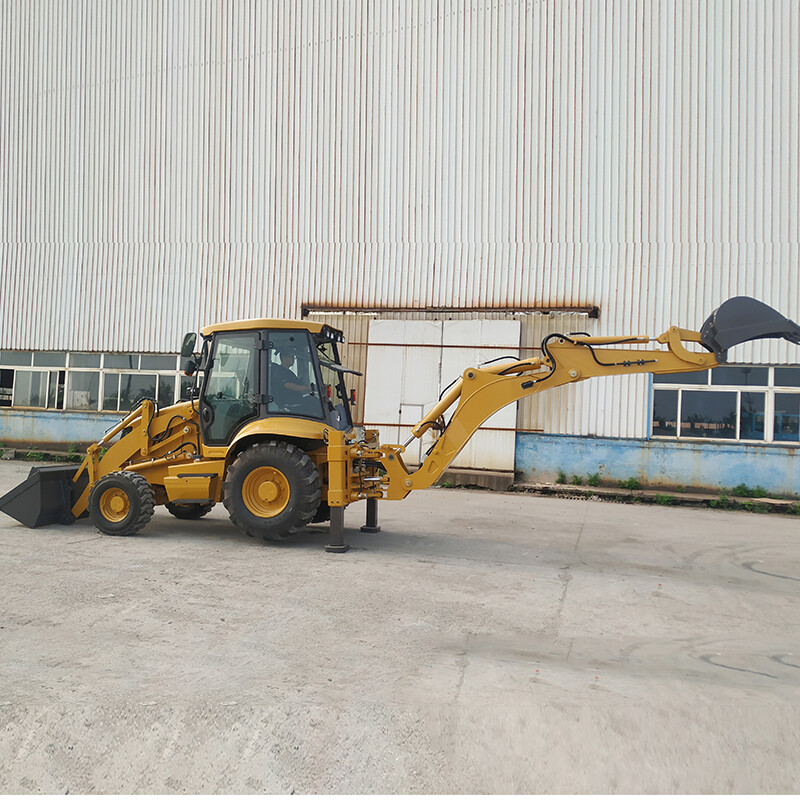

Backhoe Loader 388

Product Introduction

Backhoe loader is a single device that consists of three pieces of construction equipment. It is commonly known as "two-headed". During construction, the operator can switch the working end by simply turning the seat. The main work of a backhoe loader is to dig trenches to lay pipes and underground cables, lay foundations for buildings and establish drainage systems.



The main reason why backhoe loaders appear on all construction sites is that various projects require digging and moving soil. Backhoe loaders should be compact and can be moved around various construction sites and even run on roads. Contractors need to carry out both excavation and loading operations, and using backhoe loaders can save a lot of time and money.


Backhoe Loader 388
Overall Operating Weight8200KGFinal ReducerSingle Stage Final Reducer
Transport DimensionRated Loader of Axle8/18.5t
Length×width×height6101×2331×3813

cab to ground  mm2900mmTransmission System
Wheel base2248mmTorque Converter
Min. Ground Clearance300mmModelYJ280
Bucket Capacity1.0m3TypeSingle-stage Three Elements
Breakout Force38KNMax. Efficiency84.4%
Loading Lifting Capacity2500KGGearbox
Bucket Dumping Height2742mmTypeFixed Shaft Power Transmission
Bucket Dumping Distance925mmOil Pressure of Clutch1373Kpa—1569 Kpa
Digging Depth52mmGearsTwo Gears Ahead, Two Gears Astern
Backhoe Capacity0.3 m3Max.Speed22Km/h
Max. Digging Depth4082mmTyre
Swing Angle of Excavator Grab190oModel14-17.5/19.5L-24
Max. Pulling Force  39KNPressure of Front wheel0.55Mpa
EnginePressure of Back Wheel0.223Mpa
Model YC4A105Z-T20Brake System
TypeIn Line Direct injection Four-Stroke and Injection Combustion ChamberEmergency BrakeOperation Power Implementing brake
Cylinder-Inside Diameter*Stroke4-108×132
Manual Operation Power Terminating Brake
Rated Power75KWService BrakeAir Over Oil Caliper Brake
Rated Speed2200r/min
External Type
Min. Fuel Consumption≤230g/km.h
Self-regulation
Max.Torque≥400N.M
Self-balance
Displacement4.837LHydraulic System
Steering SystemDigging Power of Excavator Grab46.5KN
Model of Steering DeviceBZZ5-250Digging Power of Dipper44KN
Steering Angle±36 oBucket Lifting Time6.8S
Min. turning radius6581mmBucket Lowering Time3.1S
Pressure of the system20MpaBucket Discharge Time2.0S
Axle

ManufacturerFeichengMain Transmission TypeDouble Reduction
