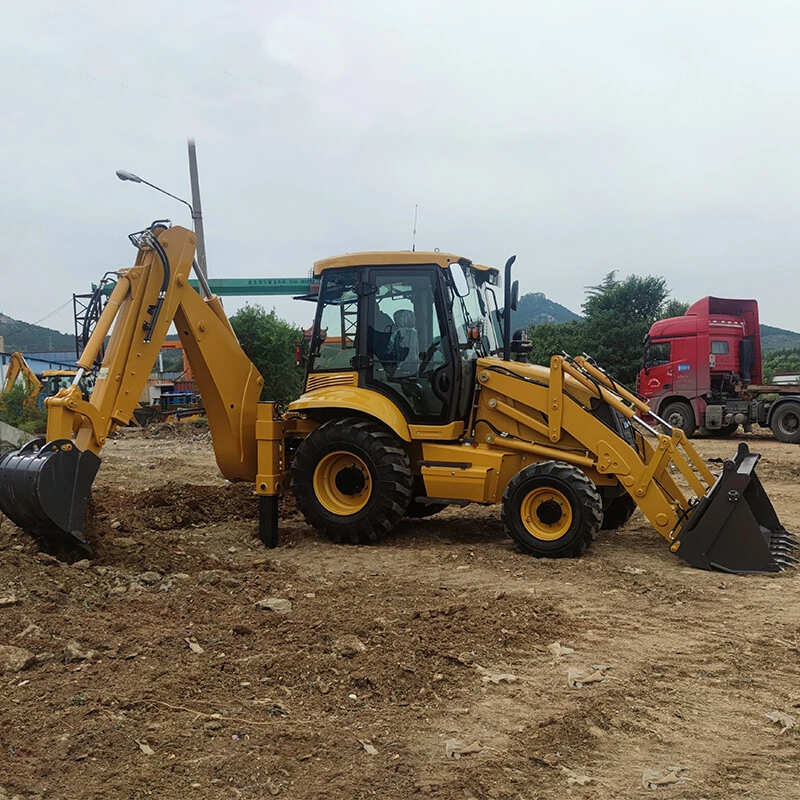

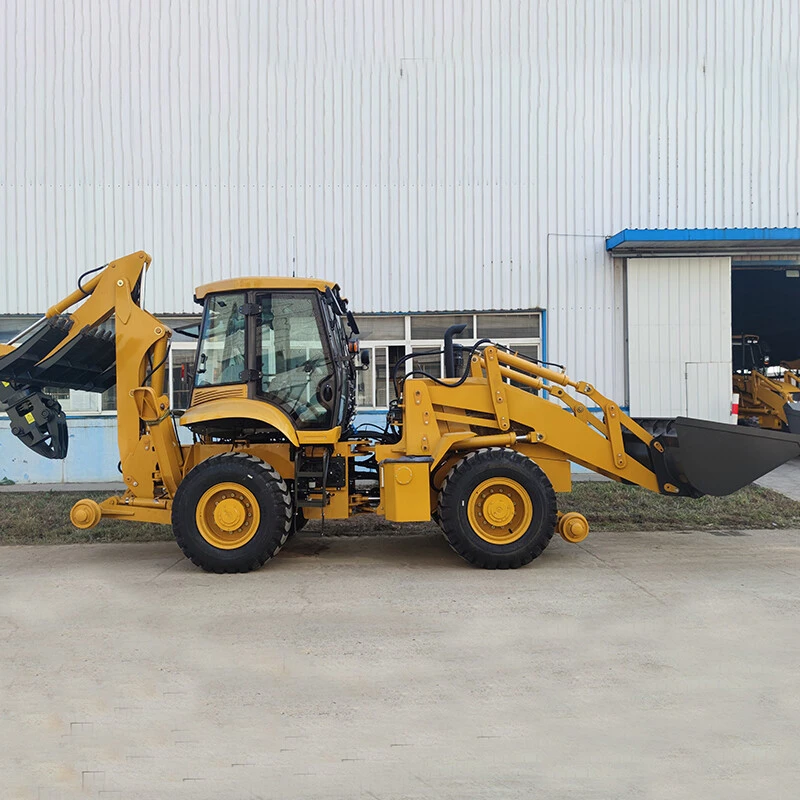

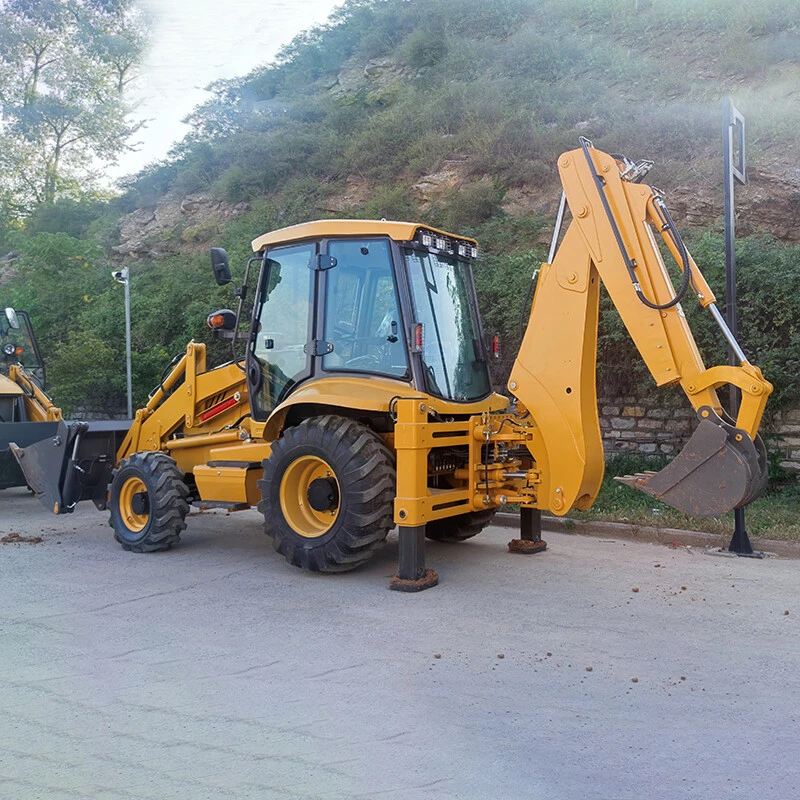

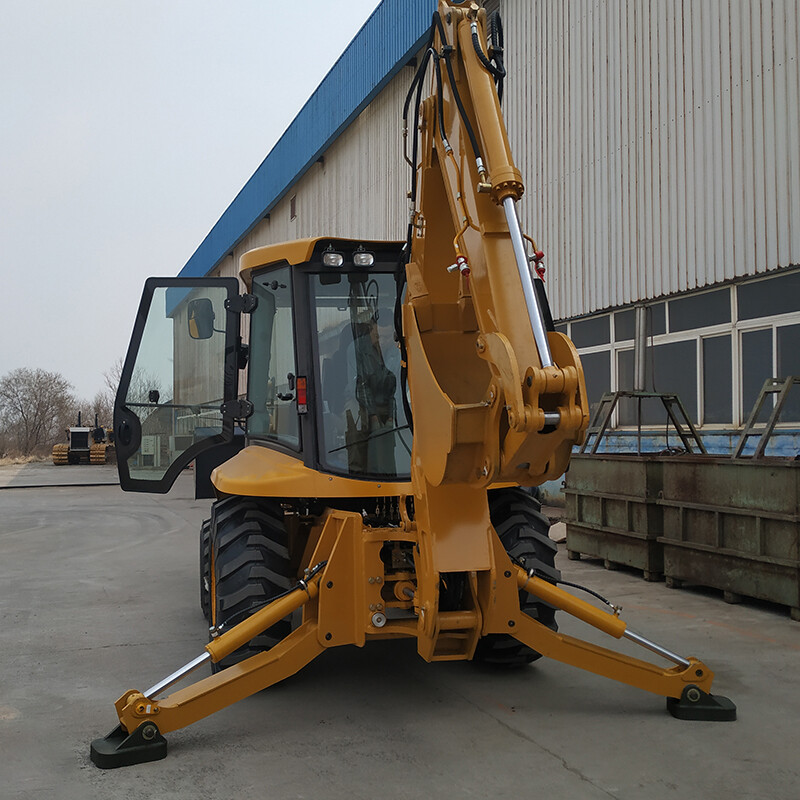

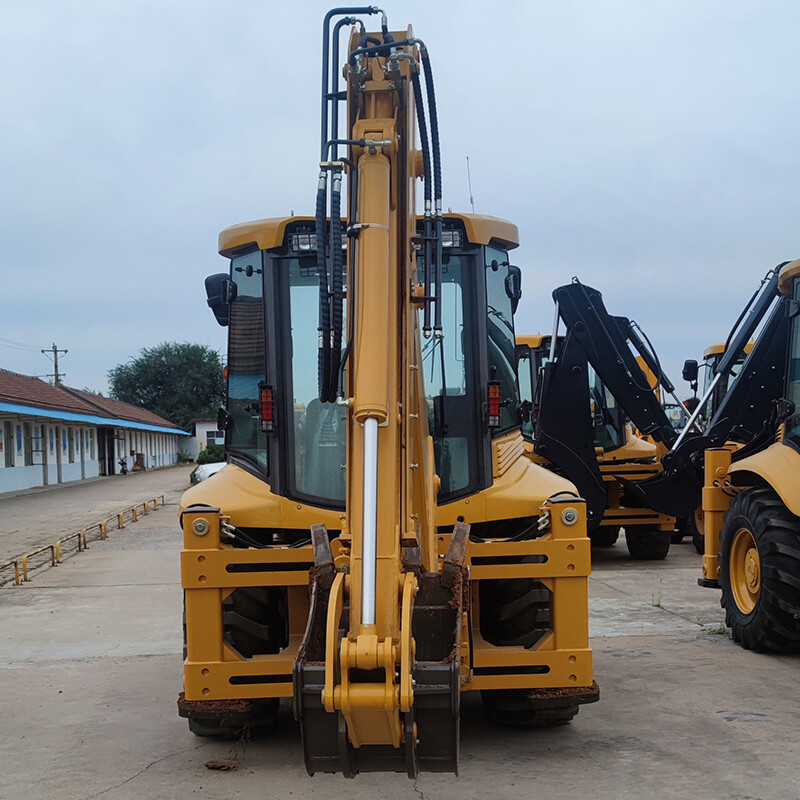

Backhoe Loader 30-25

Product Introduction

Backhoe loader is a single device that consists of three pieces of construction equipment. It is commonly known as "two-headed". During construction, the operator can switch the working end by simply turning the seat. The main work of a backhoe loader is to dig trenches to lay pipes and underground cables, lay foundations for buildings and establish drainage systems.



The main reason why backhoe loaders appear on all construction sites is that various projects require digging and moving soil. Backhoe loaders should be compact and can be moved around various construction sites and even run on roads. Contractors need to carry out both excavation and loading operations, and using backhoe loaders can save a lot of time and money.


Backhoe Loader 30-25
Overall Operating Weight7640KGFinal ReducerSingle Stage Final Reducer
Transport DimensionRated Loader of Axle7.5t
length*width*height5910×2268×3760mmTransmission System
Wheel base2250mmTorque Converter
Min. Ground Clearance300mmModelYJ280
Bucket Capacity1.2m3TypeSingle-stage Three Elements
Breakout Force38KNMax. Efficiency84.4%
Loading Lifting Capacity2500KGInlet Pressure0.4Mpa—0.55 Mpa
Bucket Dumping Height2742mmOutlet Pressure1.2Mpa—1.5 Mpa
Bucket Dumping Distance1062mmCooling MethodOil-cooling Pressure Circulation
Digging Depth52mmGearbox
Backhoe Capacity0.3m3TypeFixed Shaft Power Transmission
Max. Digging Depth4082mmOil Pressure of  Clutch1373Kpa—1569 Kpa
Swing Angle of Excavator Grab190oGearsTwo Gears Ahead, Two Gears Astern
Max. Pulling Force  39KNMax.Speed22Km/h
EngineTyre
ModelCYD  YC4A105Z-T20Model16/70-20
TypeIn Line Direct injection Four-Stroke and Injection Combustion ChamberPressure of Front wheel0.22 Mpa
Cylinder-Inside Diameter*Stroke4-102×120Pressure of Back Wheel0.22 Mpa
Rated Power75KWBrake System
Rated Speed2200r/minService BrakeAir Over Oil Caliper Brake
Min. Fuel Consumption≤216g/km.h
External Type
Max.Torque≥410N.M/1500r/min
Self-regulation
Displacement3.9L
Self-balance
Steering SystemEmergency BrakeOperation Power Implementing brake
Model of Steering DeviceBZZ5-250
Manual Operation Power Terminating Brake
Steering Angle±36 oHydraulic System
Min. turning radius5018mmDigging Power of Excavator Grab46.5KN
Pressure of the system18MpaDigging Power of Dipper44KN
AxleBucket Lifting Time5.4S
ManufacturerFeicheng Axle FactoryBucket Lowering Time3.1S
Main Transmission TypeDouble ReductionBucket Discharge Time2.0S
Wheel base1640mmfuel tank capacity90L
