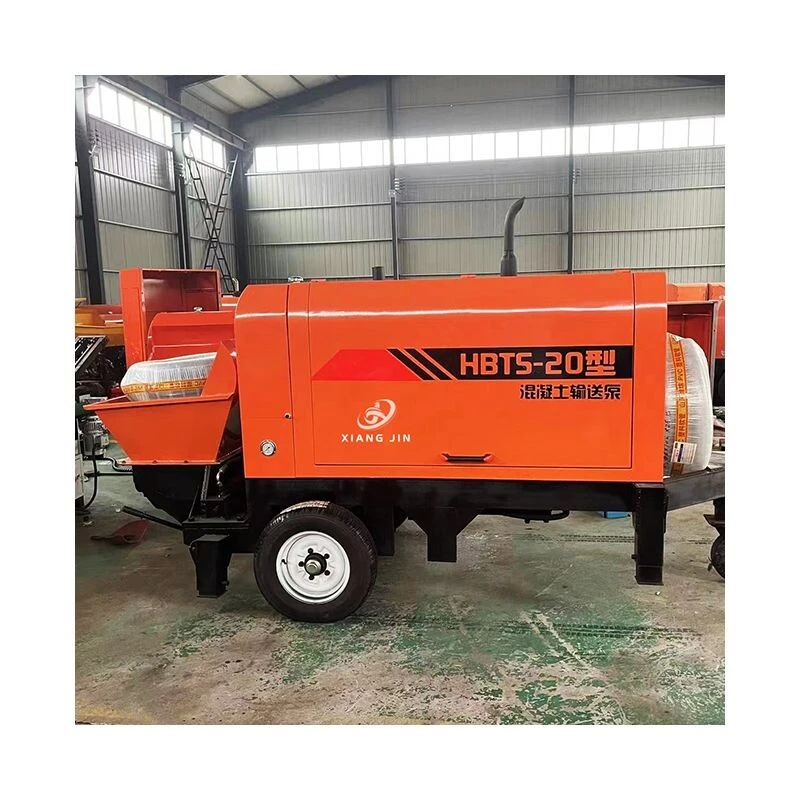

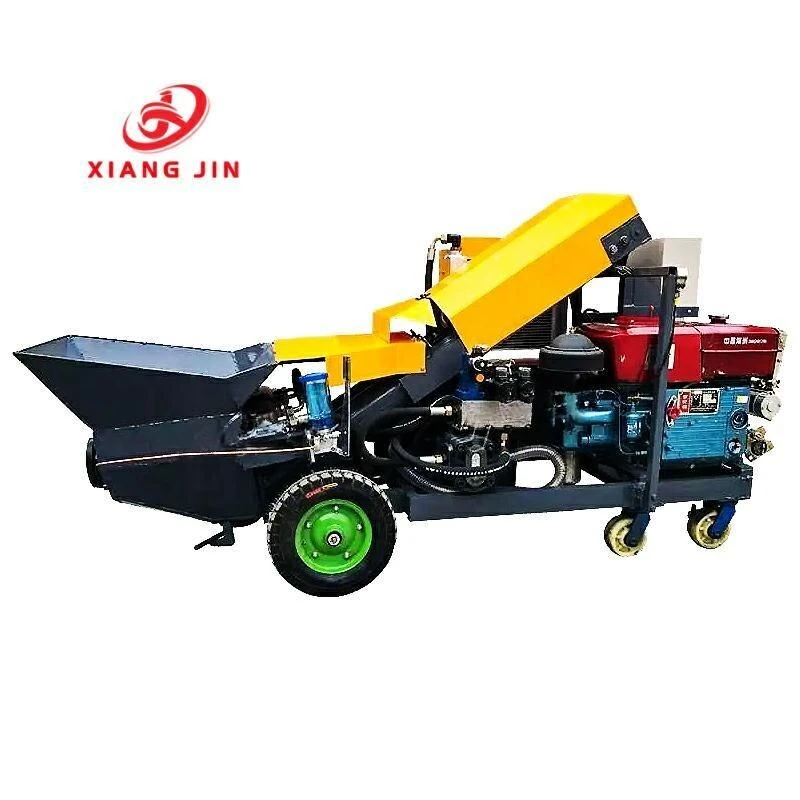

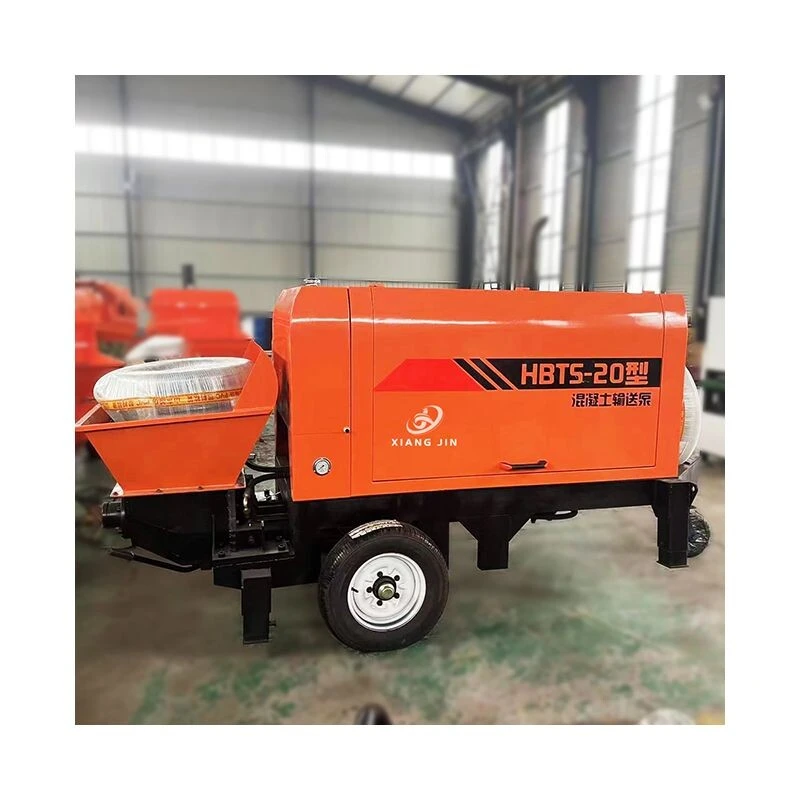

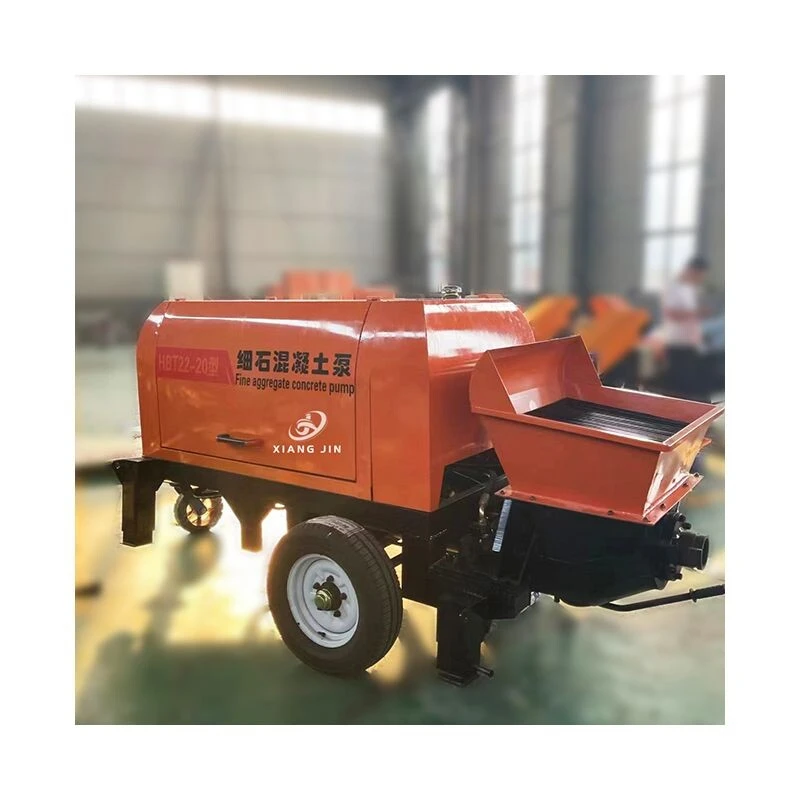

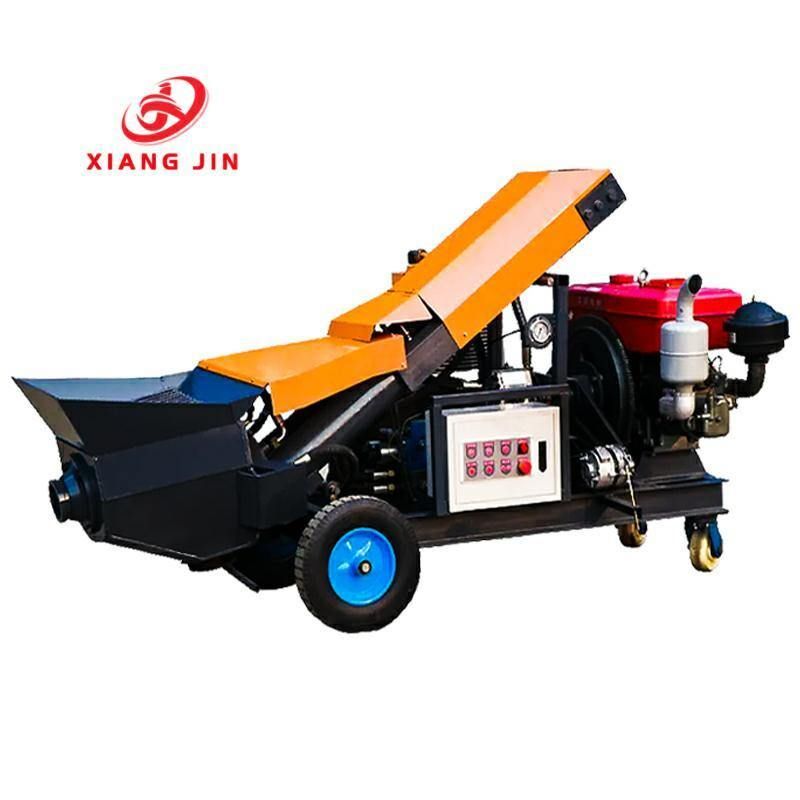

Concrete Pump 20 Type

Product Description

Concrete pump, also known as concrete pump, consists of a pump body and a delivery pipe. It is a machine that uses pressure to continuously transport concrete along the pipeline. It is mainly used in building construction, bridge and tunnel construction.



Product Features

Selected professional materials, wear-resistant and durable, simple to operate.

Long conveying distance and longer service life.

Small size, light weight, easy to operate and move.

Thickened high-quality tires, strong grip, not easy to slip.


Product modelXJ-horizontal-20 type (supports customized diesel engine models)
Theoretical conveying capacity10-12M3/h
Bone particle diameter≤20mm
Working pressure12mpa
Bore size*stroke120*650mm
Motor power:Oil pump power:22kw63 (gear)
Delivery pipe diameterф80-φ100
Overall dimensions3000*1200*1400mm
Parallel conveying distance70m
Conveying height30m
Overall machine weight800kg
