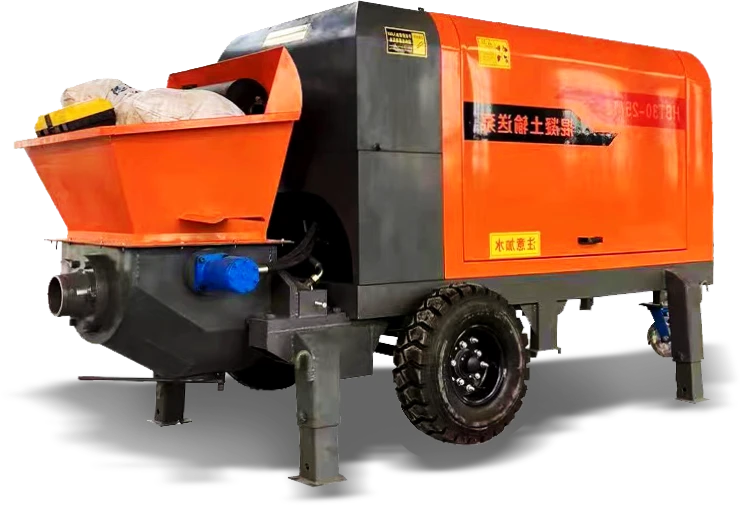

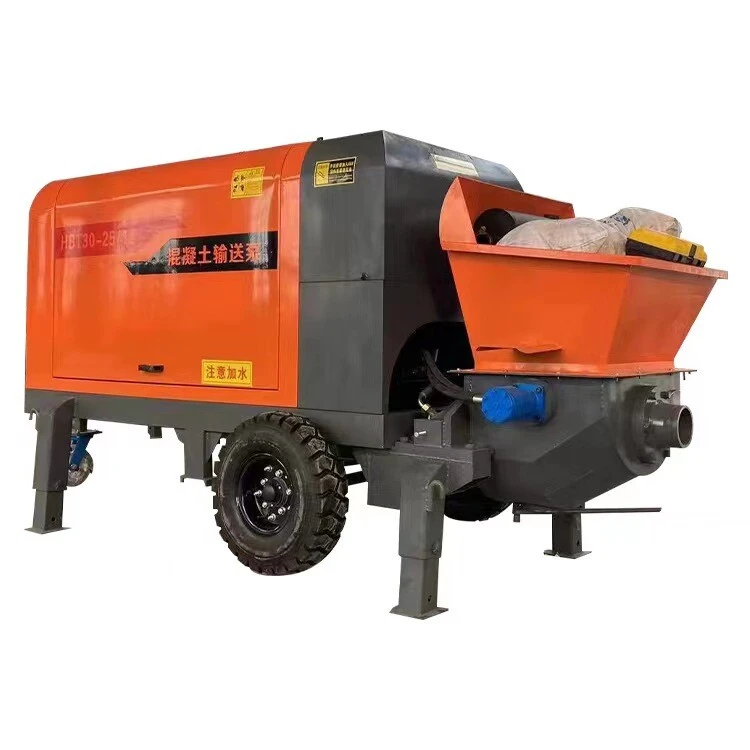

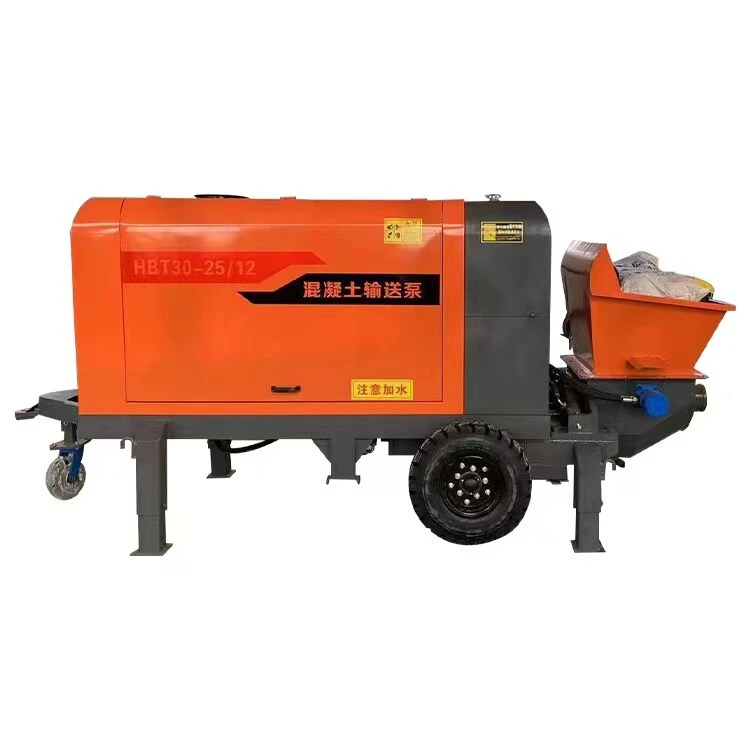

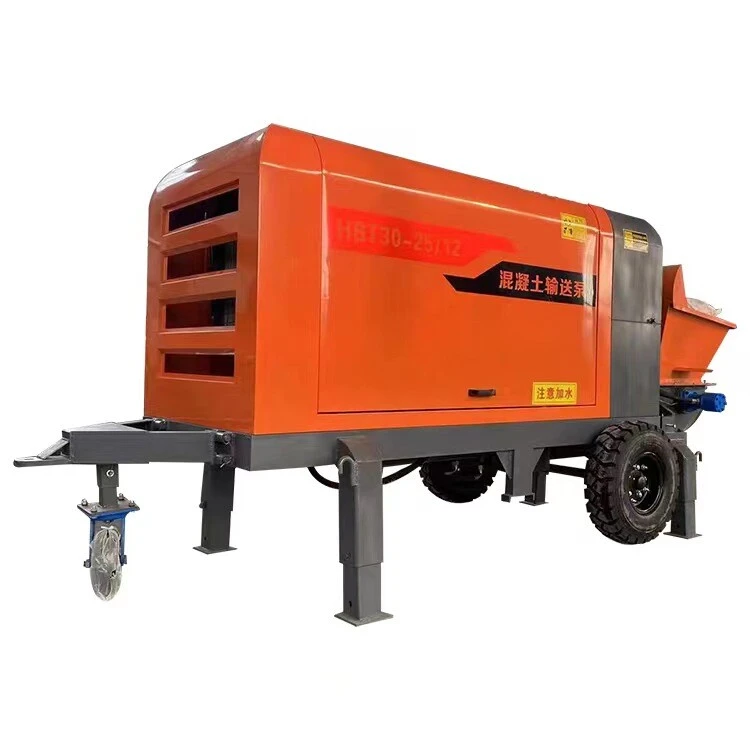

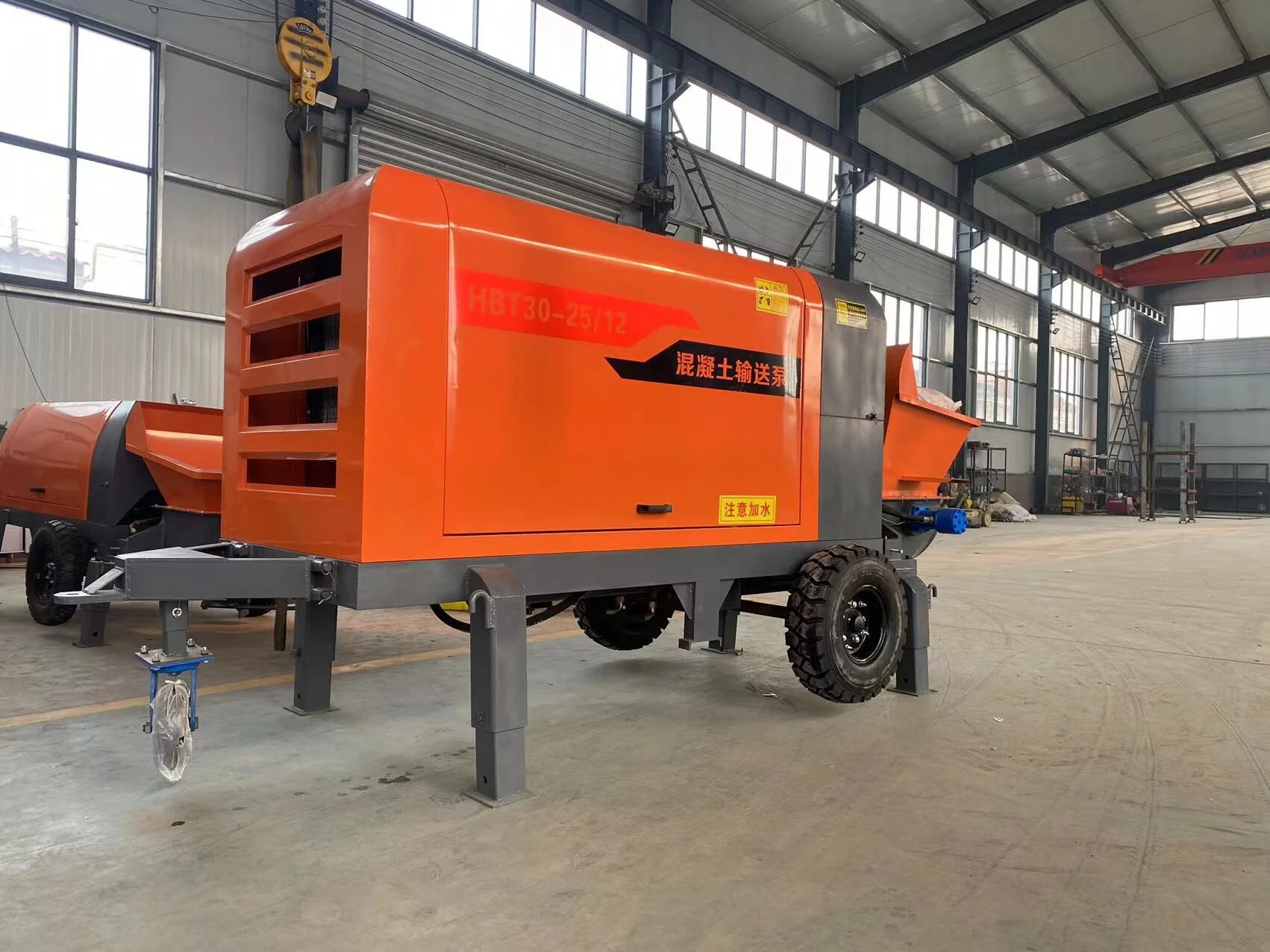

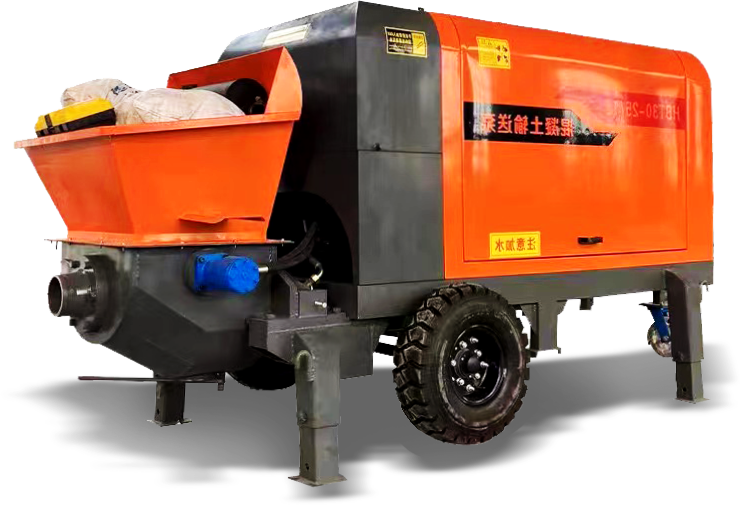

Concrete Pump 30 Type


Product Description

Concrete pump, also known as concrete pump, consists of a pump body and a delivery pipe. It is a machine that uses pressure to continuously transport concrete along the pipeline. It is mainly used in building construction, bridge and tunnel construction.


Product Features


Selected professional materials, wear-resistant and durable, simple to operate.

Long conveying distance and longer service life.

Small size, light weight, easy to operate and move.

Thickened high-quality tires, strong grip, not easy to slip.


Product modelXJ-horizontal-30 type (supports customized diesel engine models)
Theoretical conveying capacity15-20M3/h
Bone particle diameter≤30mm
Working pressure20mpa
Bore size*stroke160*850mm
Motor power:Oil pump power:37kw100 (piston pump)
Delivery pipe diameterф80-100-φ125
Overall dimensions3800*1600*1600mm
Parallel conveying distance100-150m
Conveying height30-70m
Overall machine weight1800kg
