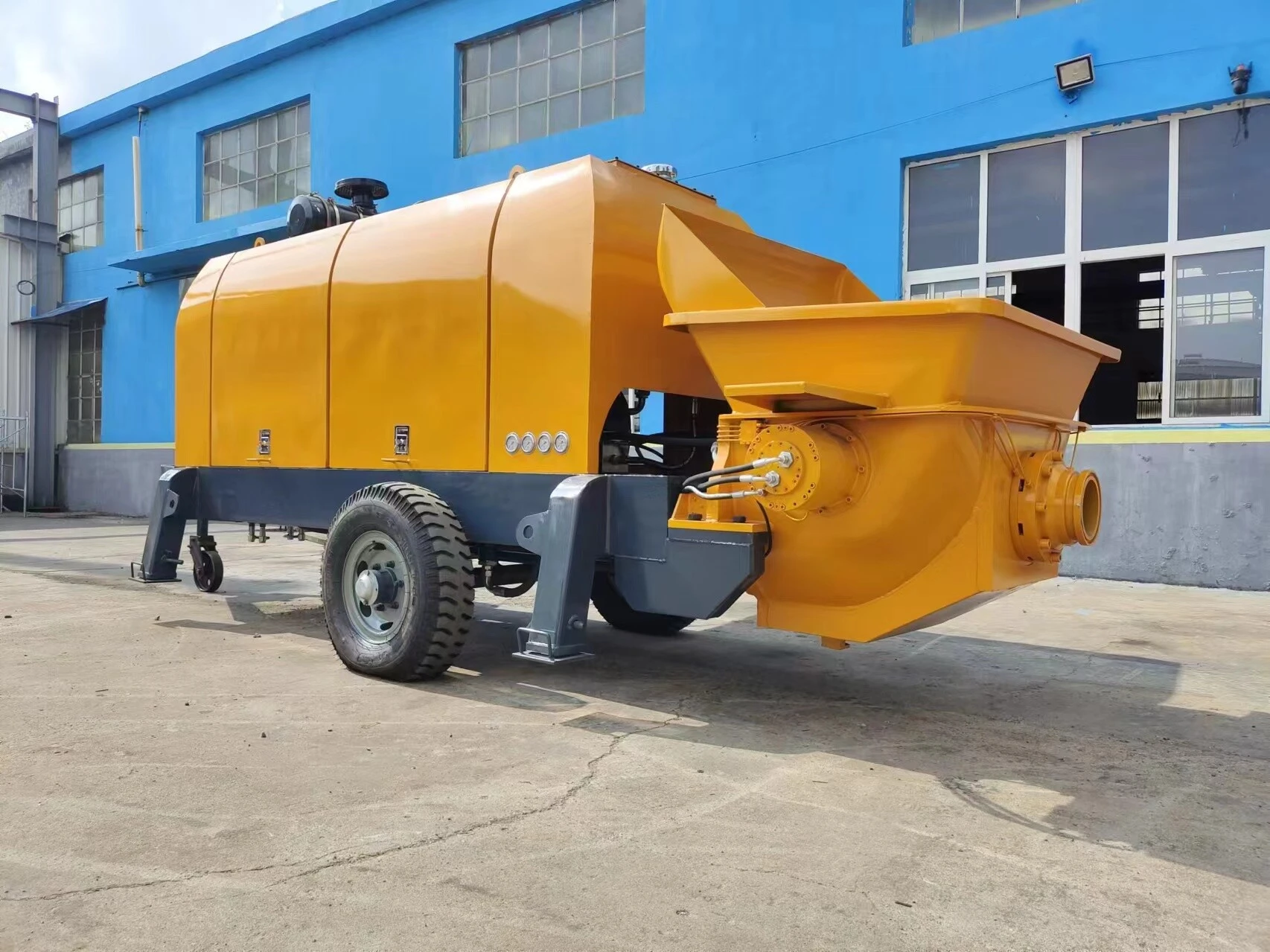

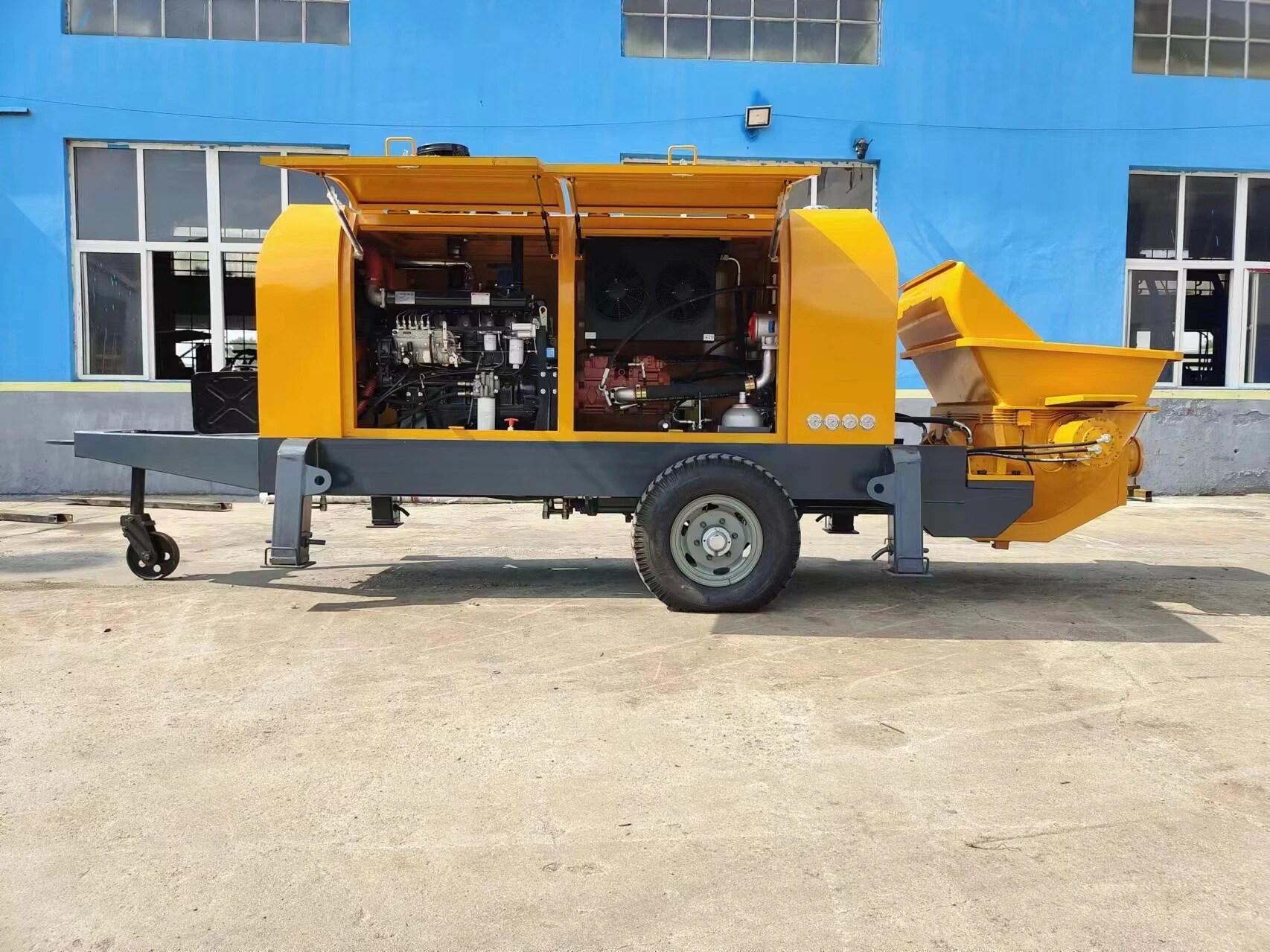

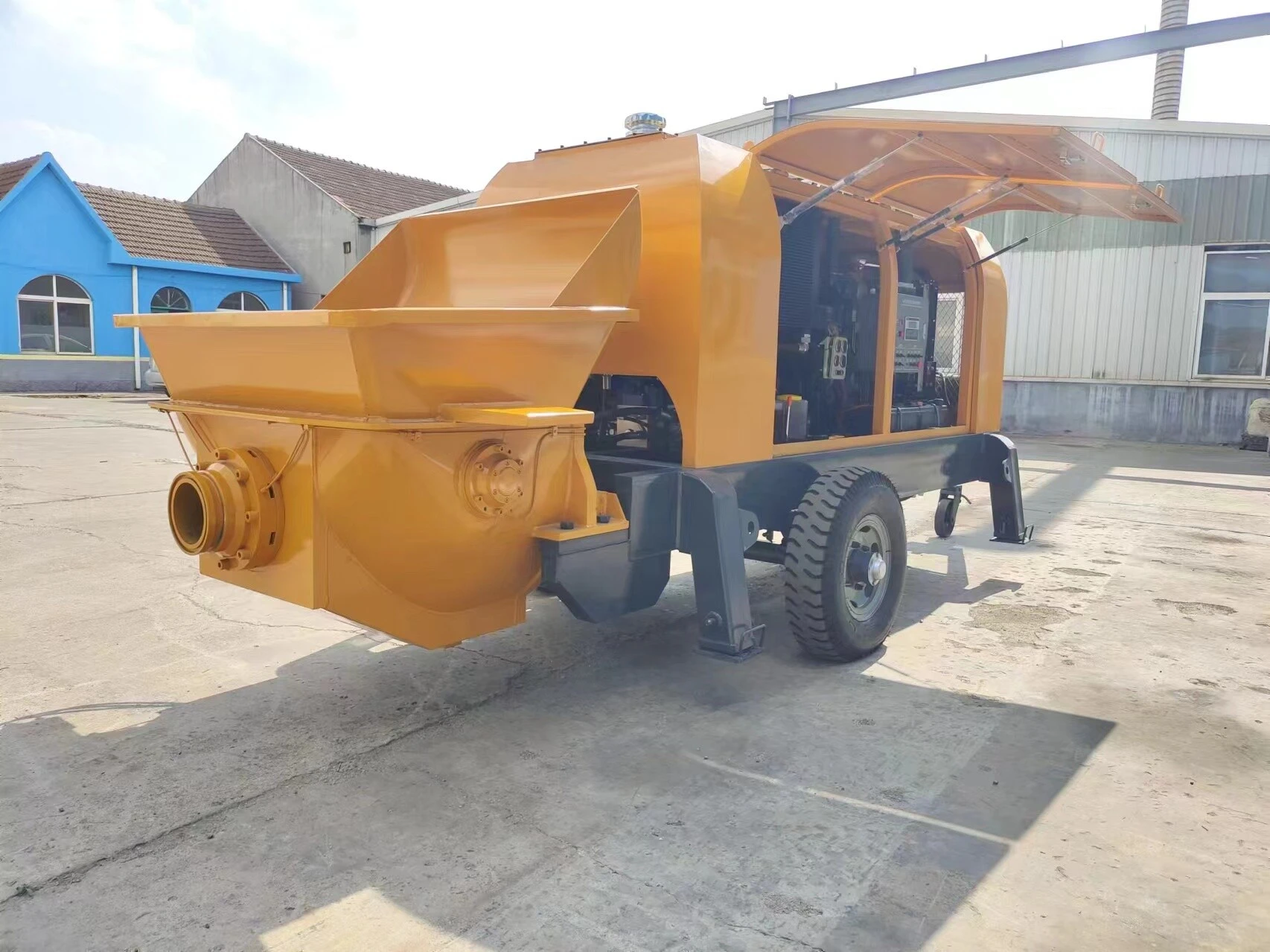

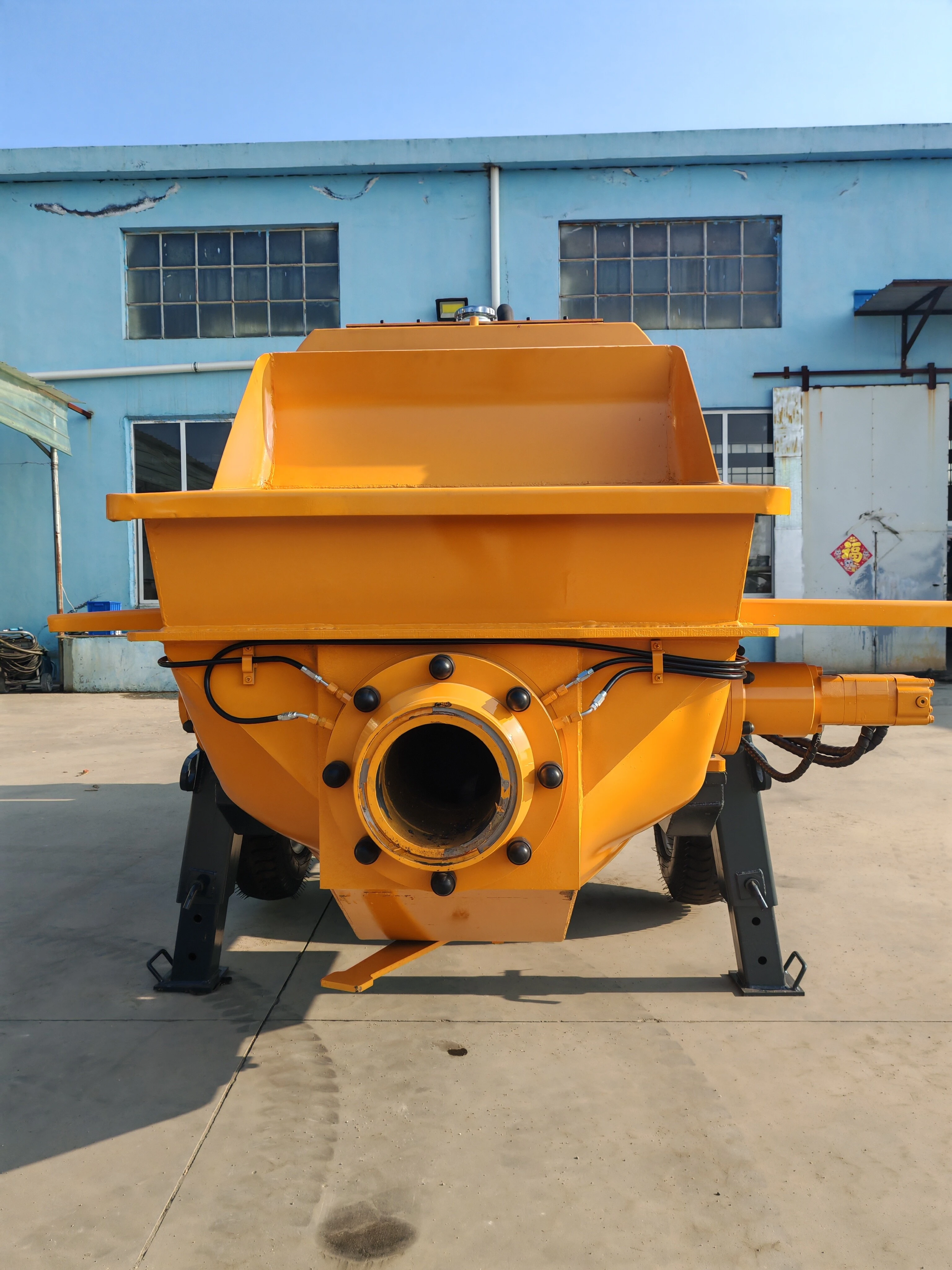

Concrete Pump 80 Type

Product Description

Concrete pump, also known as concrete pump, consists of a pump body and a delivery pipe. It is a machine that uses pressure to continuously transport concrete along the pipeline. It is mainly used in building construction, bridge and tunnel construction.



Product Features


Selected professional materials, wear-resistant and durable, simple to operate.

Long conveying distance and longer service life.

Small size, light weight, easy to operate and move.

Thickened high-quality tires, strong grip, not easy to slip.


Product modelXJ-horizontal-80 type (supports customized diesel engine models)
Theoretical conveying capacity50-70M3/h
Bone particle diameter≤30mm
Working pressure25mpa
Bore size*stroke230*1600mm
Motor power:Oil pump power:110kw280(piston pump)
Delivery pipe diameterФ100-φ125
Overall dimensions5500*1800*1800mm
Parallel conveying distance400-500m
Conveying height100-200m
Overall machine weight5200kg
