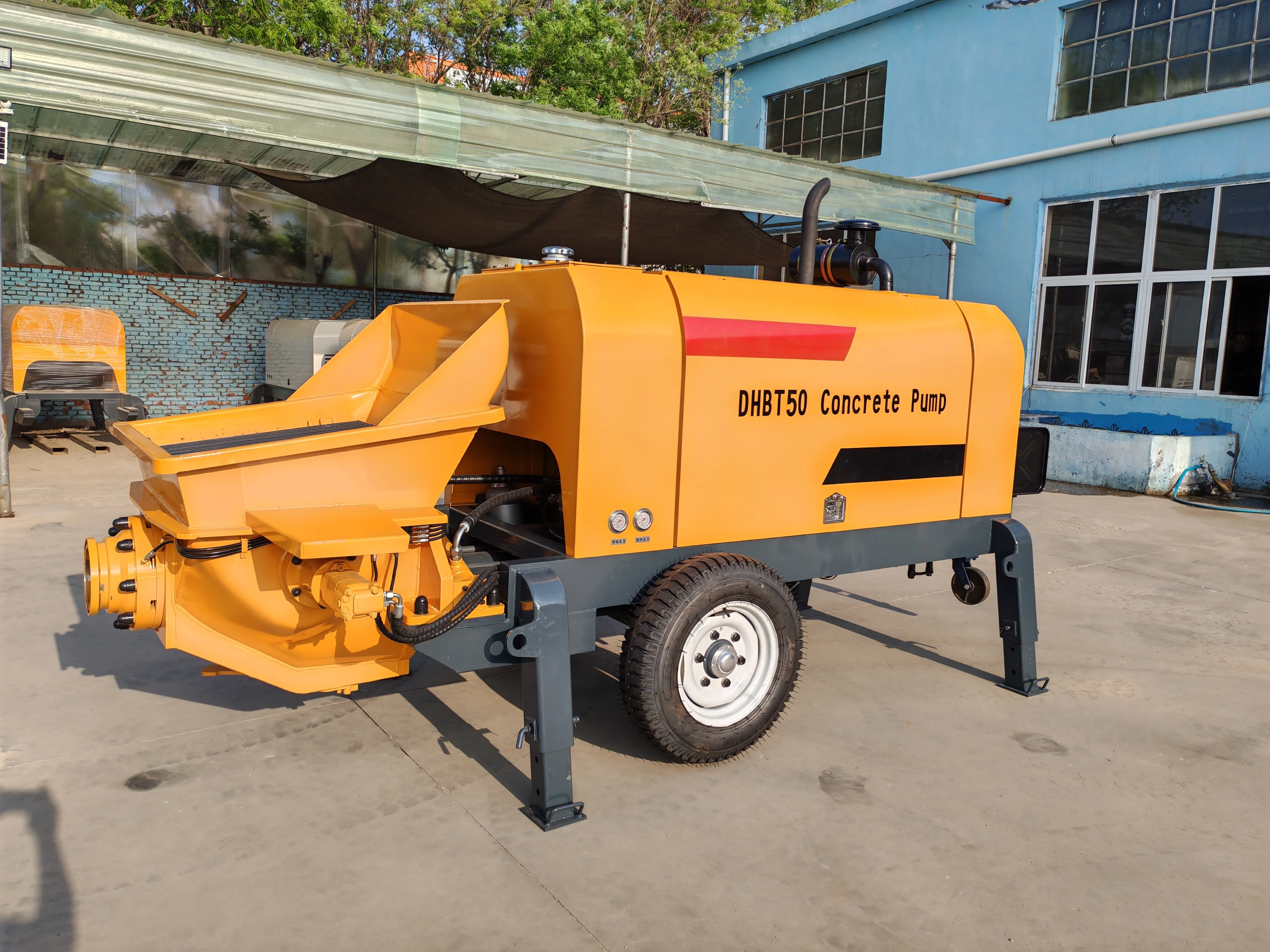

Concrete Pump 50 Type

Product Description

Concrete pump, also known as concrete pump, consists of a pump body and a delivery pipe. It is a machine that uses pressure to continuously transport concrete along the pipeline. It is mainly used in building construction, bridge and tunnel construction.



Product Features


Selected professional materials, wear-resistant and durable, simple to operate.

Long conveying distance and longer service life.

Small size, light weight, easy to operate and move.

Thickened high-quality tires, strong grip, not easy to slip.


Product modelXJ-horizontal-50 type (supports customized diesel engine models)
Theoretical conveying capacity25-30M3/h
Bone particle diameter≤30mm
Working pressure20mpa
Bore size*stroke180*1000mm
Motor power:Oil pump power:55kw140(piston pump)
Delivery pipe diameterФ80-100-φ125
Overall dimensions4000*1600*1600mm
Parallel conveying distance200-300m
Conveying height60-120m
Overall machine weight2500kg
