Name

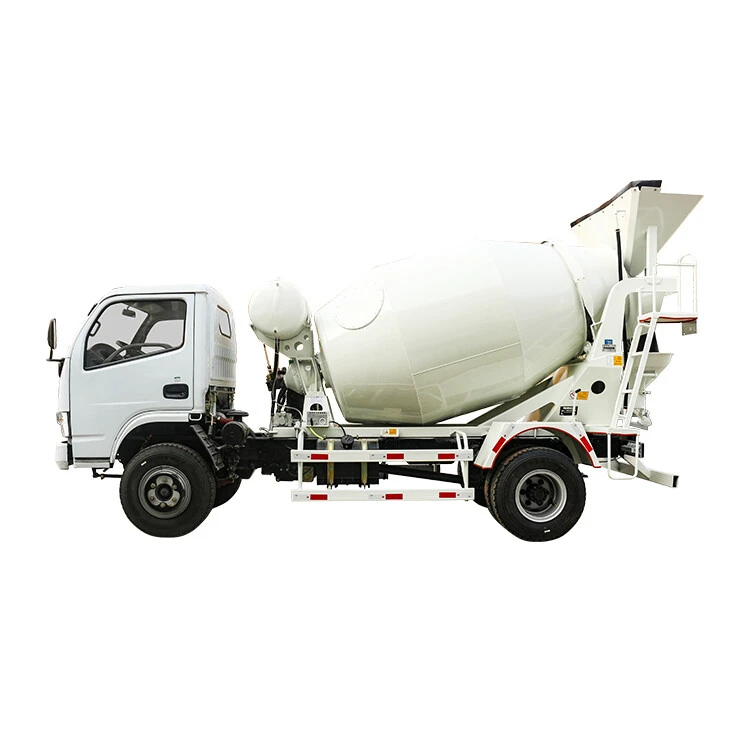

Small dongfeng Huichai concrete mixer truck

Vehicle No

XR3500

Brand

Dongfeng

Cubic meter

3.5m³

Engine model

4105pressure boost

Product Type

diesel oil

Engine power

108hp

Cabin

A row and a half

Drive type

4X2

Steering type

Steering wheel

Number of axles

2

Directional assistance

Hydraulic assistance

 Distance between shafts

3600

Clutch assist

Pneumatic power

Service brake

Air brake

Number of leaf springs

Front 9, rear 11+6

Parking braking

Air break brake

Fuel tank capacity

65L

Pearbox

145

Battery

2-12V-105AH

Shift mode

Manual

Tank body and blade material

Q345B-4mm

Gears

5-forward, 1-reverse, high and low speed

Vessel head

Q345B-6mm

Top speed

60km/h

Max speed

Open hydraulic system

Rear axle specifications

1088

Reducer

KEYI

Tire specification

8.25-R16

Hydraulic valve

15single copy

Number of tires

6

Input speed

≥3m³/min

Climbing capacity

25°

Output speed

≥1m³/min

Discharge height

1300mm

Discharge residual rate

≤0.5%

Geometric volume of tank body

5.8m³

Rotating range

180° Rotary discharge

Rated stirring volume

3.5m³

Feed in and out operation

post opreating

Emission standard

National III

Cabody rotation speed

12rpm

Weight

4600kg

Water tank capcity

180L

Total Weight

13300kg

radiator

18LTemperature controlled

Vehicle size

6500x2200x2910mm

Rated hydraulic pa

20MPa

Optional configuration

Air conditioner, increase the feeding hopper, support the mixing of dry materials, install a leak proof hopper, operate inside the material inlet and outlet, four-wheel drive, closed hydraulic system, engineering machinery license plate and insurance, etc。
