Vehicle Brand:

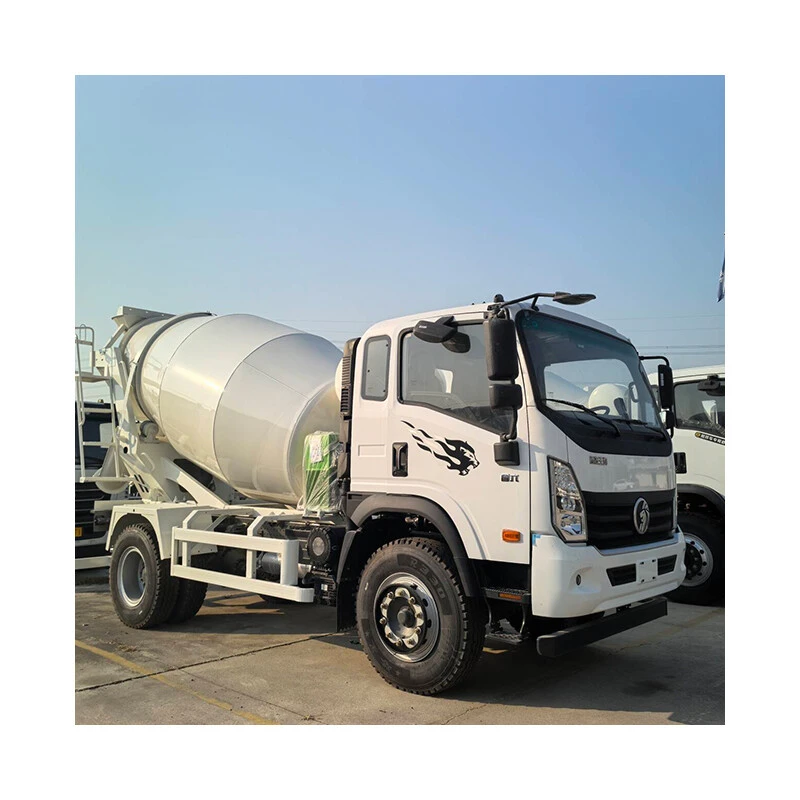

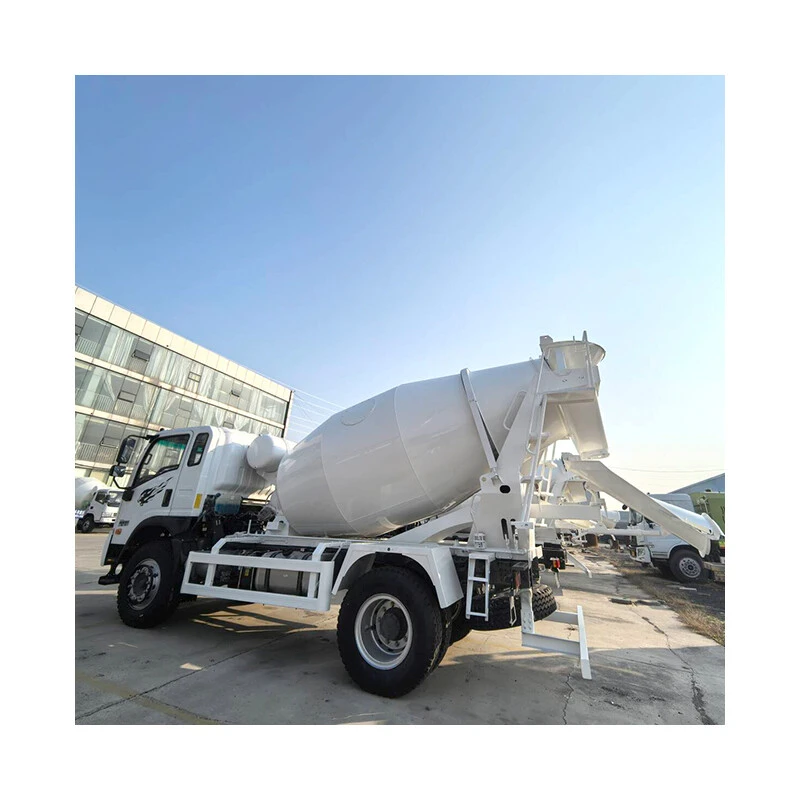

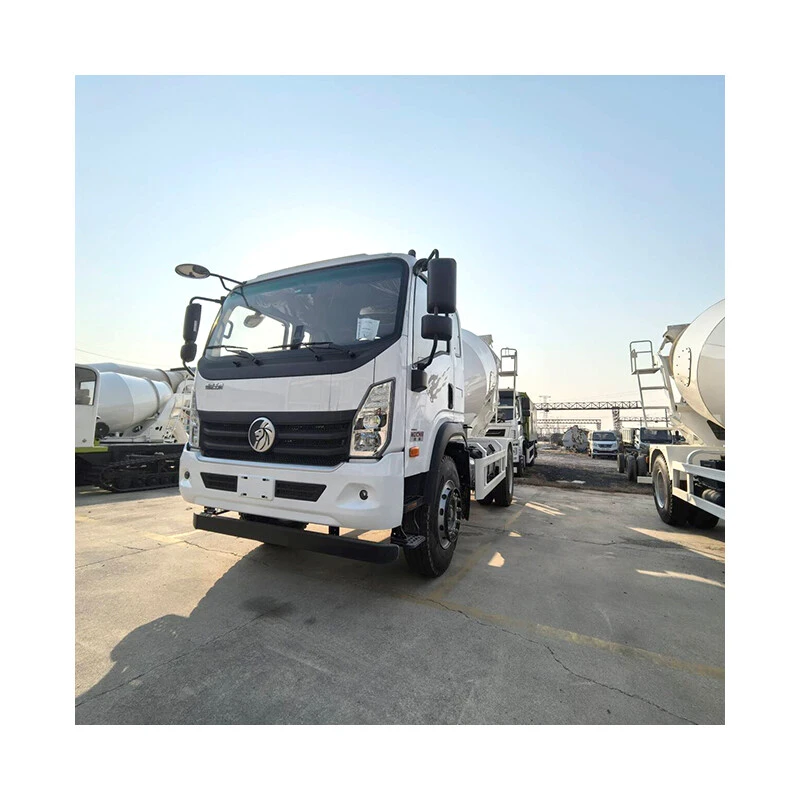

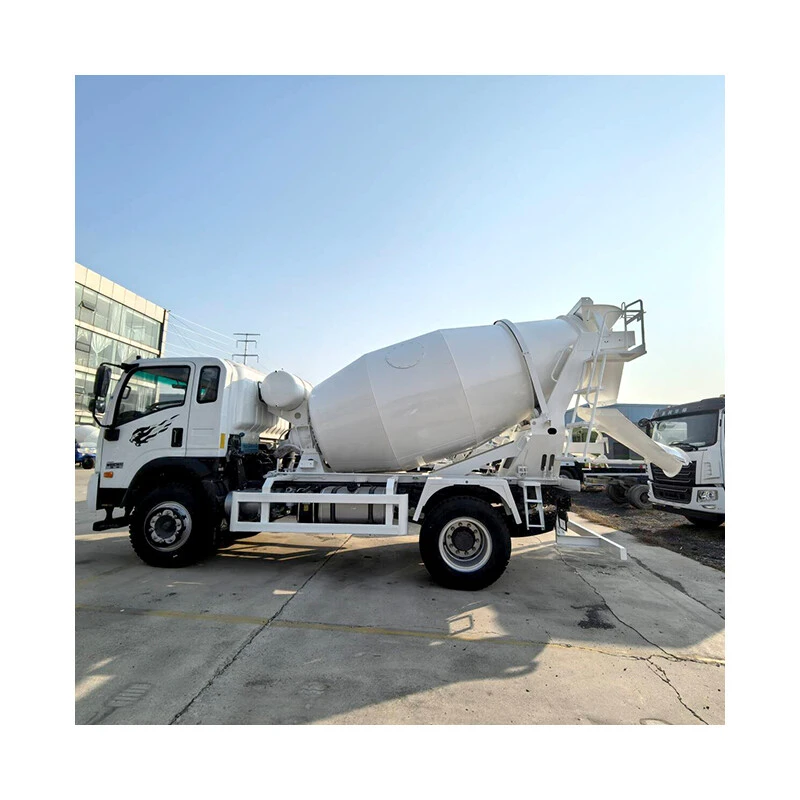

SINOTRUK Ace Mixer Truck

Vehicle Name:

Concrete mixer truck

engine:

WP4.1NQ190E61 intercooler and supercharger

Weichai 190 HP

Total mass:

18000 (kg)

Dimensions:

7200 X2 350 X3 6 5 0

Body color:

Jade White

Curb Weight

7810 (kg)

Rated quality:

1 3 990 (kg)

Drive mode:

4.2 Driver

Wheelbase:

3 600

Number of axes

Single Bridge 2

Maximum speed:

7 0(km/h)

Variable box:

Fast 8 -speed gearbox

Front and rear axles:

153

Large frame:

Single layer rack

Tire specifications:

1000R20 18PR

Front and rear track:

1810

Number of tires:

6 (Steel Wire)

Chassis emission standards:

National VI

Stirring volume:

3.995 cubic meters

Passenger capacity:

3 people

Fuel Type:

diesel fuel

Vehicle advantage: lightweight

Standard vehicle type, not overweight, in line with the new national laws and policies, suitable for areas where overweight and overweight are controlled, and can achieve more material pulling

Basic Configuration:

Remote control key, damping adjustment, quick drop, LED headlights, electric windows, heating and cooling, air conditioning, central locking, single sleeper, throttle conversion, spare tire

Tank Material:

Made of high-strength wear-resistant alloy steel B520JJ with a thickness of 6mm, it increases the tank life by more than 3 times and is shot blasted for rust prevention.

Blade Material:

6# thick alloy steel (wear-resistant strips are added to increase service life)

Head material:

8# thick double head alloy steel

Reducer:

PMP reducer has strong load-bearing capacity and low failure rate. Imported system

Hydraulic system:

Rexroth /Danfoss, the system eliminates segregation, and the residual rate is low. Imported system

Tugboat:

 Use large-sized tugboats to improve the stability of tank operation

Cooling System:

Smart Radiator 20L

Feeding speed:

Feeding speed m³ /min≥3

Discharging speed:

Discharging speed m³ /min ≥ 2

Water supply system:

400 L enlarged water tank with air pressure water supply

How to operate:

Three-way operation on the left, right and cab

Discharging range:

 180 ° height adjustment

Safety devices:

Install leakage device

Features:

The upper installation is fully guaranteed, and the mixing drum adopts the most advanced double-logarithmic German spiral curve design in China. The optimal configuration ratio of diversion holes and mixing plates makes the mixing drum rotate more smoothly, the concrete homogeneity is better, the feeding and discharging speed is fast, segregation is eliminated, the residual rate is low, and the service life is longer.
