Name

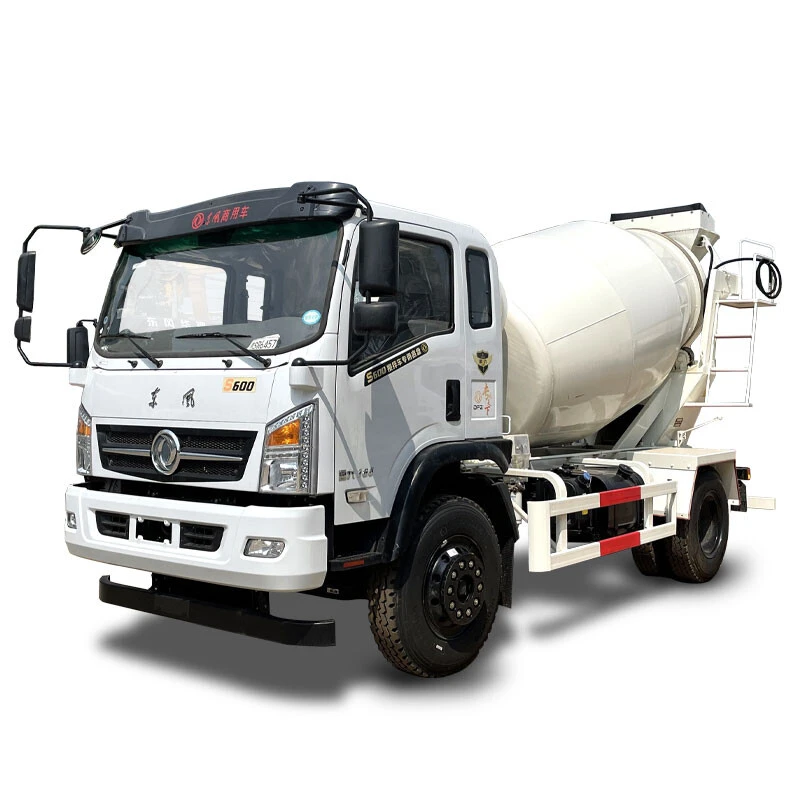

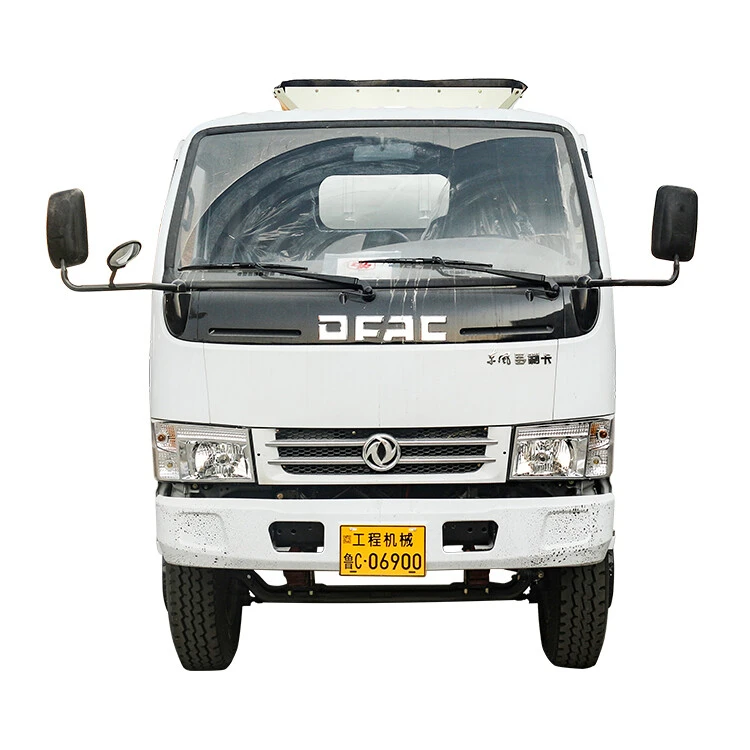

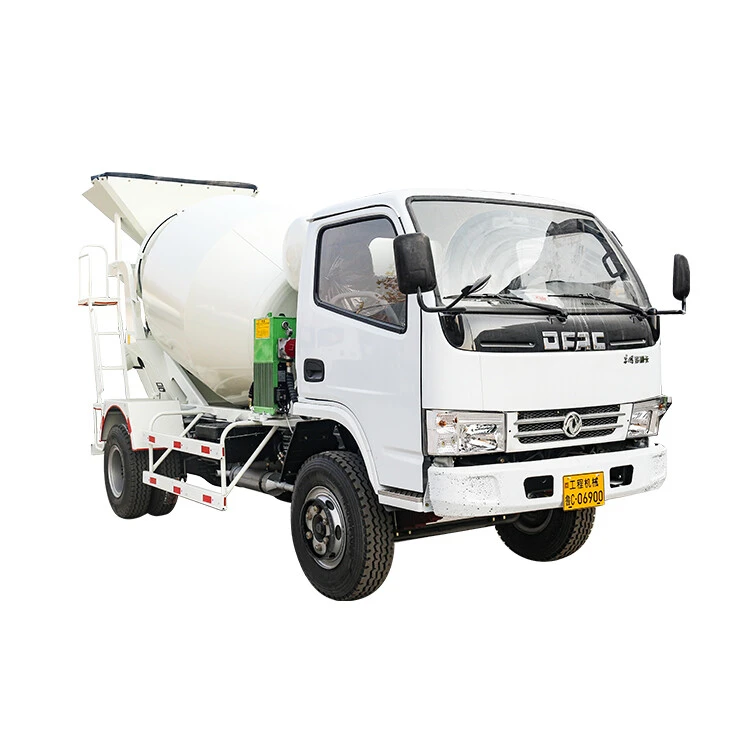

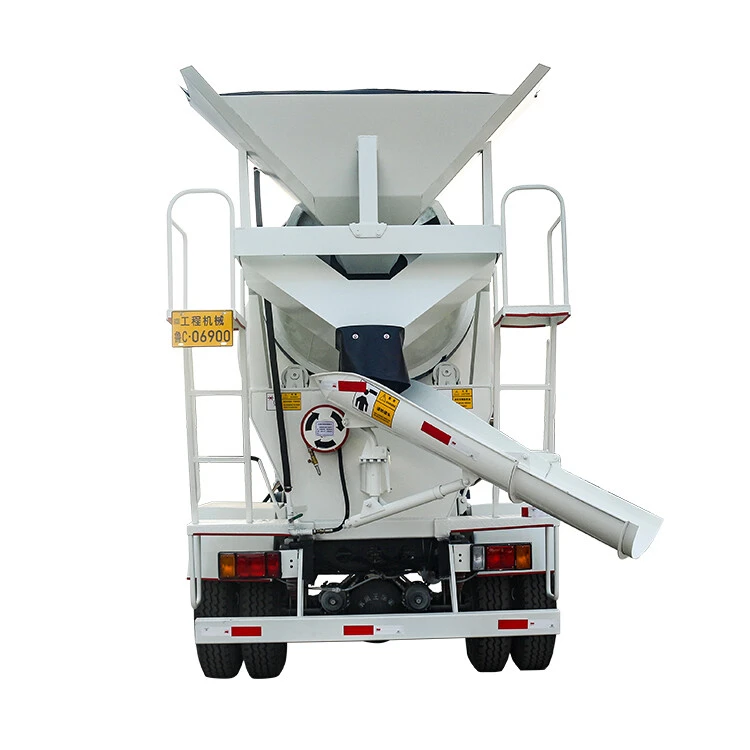

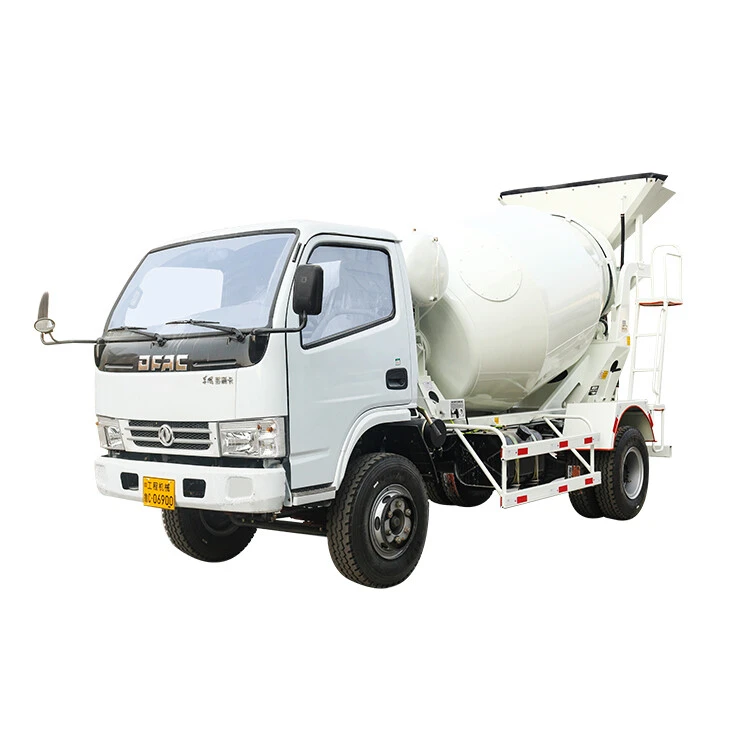

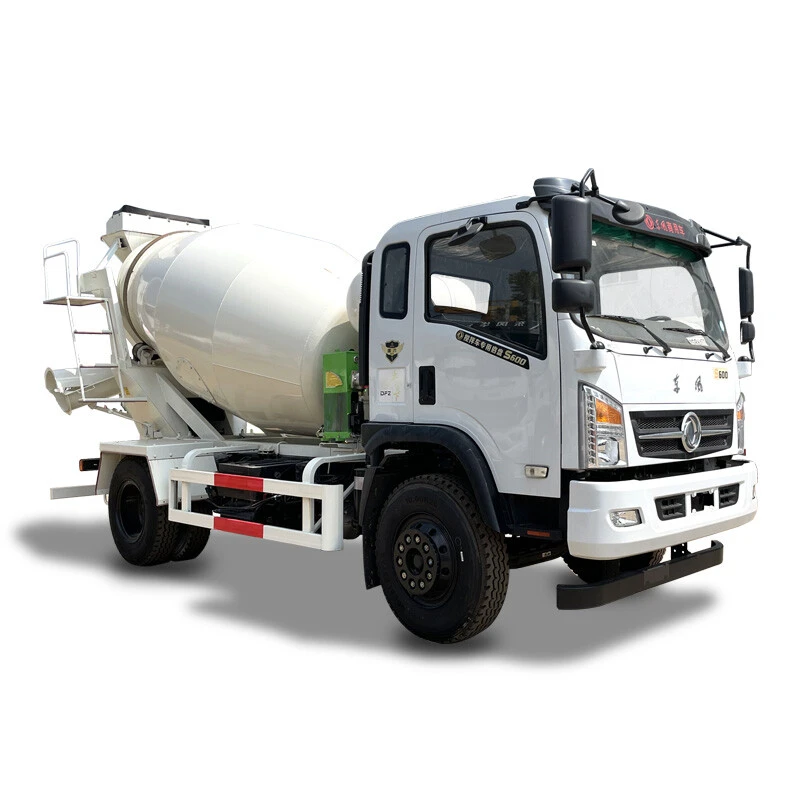

Dadongfeng Concrete Mixing Transportation car

Vehicle No

XR6000

Brand

Dongfeng

Cubic meter

6m³

Engine model

Yuchai 4110 supercharging

Product Type

diesel oil

Engine power

160hp

Cabin

A row and a half

Drive type

4X2

Steering type

Steering wheel

Number of axles

2

Directional assistance

Hydraulic assistance

Distance between shafts

3900

Clutch assist

Pneumatic power

Service brake

air brake

Number of leaf springs

Front 11, rear 10+8

Parking braking

Air brake

Fuel tank capacity

120L

Gearbox

Fast 8JS85F

Battery

2-12V-105AH

Shift mode

manual

Tank body and blade material

Q345B-4mm

Gears

Small eighth gear

Vessel head

Q345B-8mm

Top speed

80km/h

Max speed

Open hydraulic system

Rear axle specifications

153

Reducer

KEYI

Tire specification

9.00R20

Hydraulic valve

20single copy

number of tires

6

Input speed

≥3m³/min

Climbing capacity

25°

Output speed

≥1m³/min

Discharge height

1600mm

Discharge residual rate

≤0.5%

Geometric volume of tank body

11.5m³

Rotating range

180° Rotary discharge

Rated stirring volume

6m³

Feed in and out operation

post opreating

Emission standard

national 3

Cabody rotation speed

12rpm

Weight

6400kg

Water tank capcity

300L

Total mass

23200kg

radiator

18LTemperature controlled

Vehicle size

6950x2350x3500mm

Rated hydraulic pressure

20MPa

Optional configuration

Air conditioner, increase the feeding hopper, support the mixing of dry materials, install a leak proof hopper, operate inside the material inlet and outlet, four-wheel drive, closed hydraulic system, engineering machinery license plate and insurance, etc。
