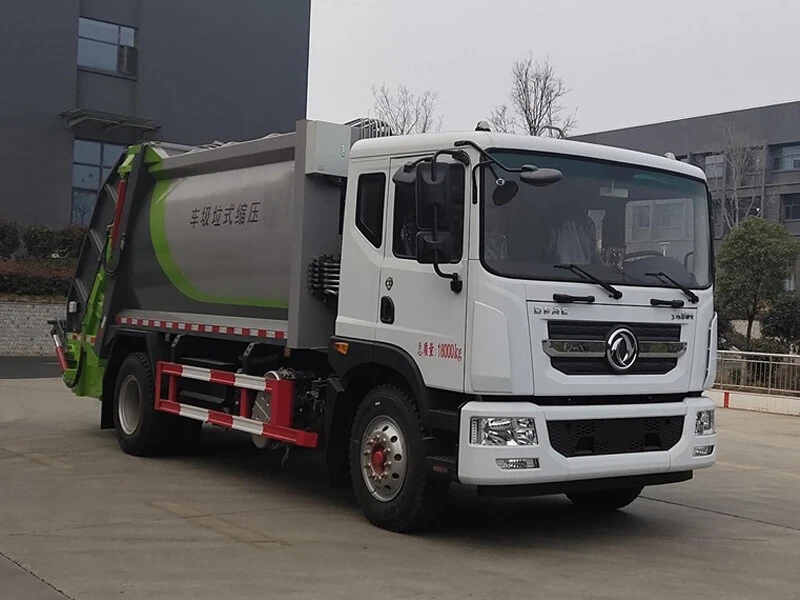

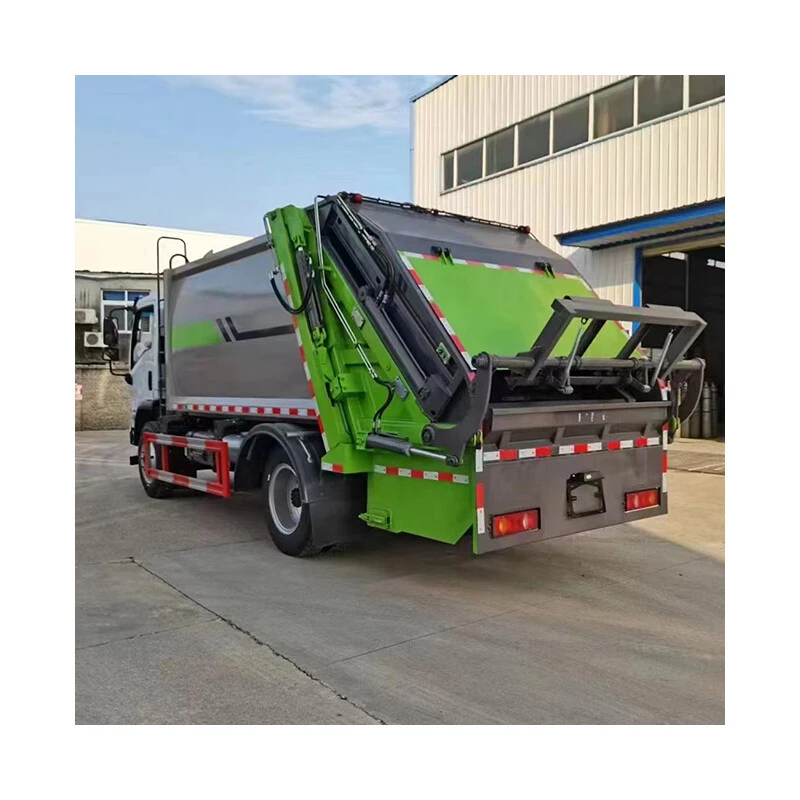

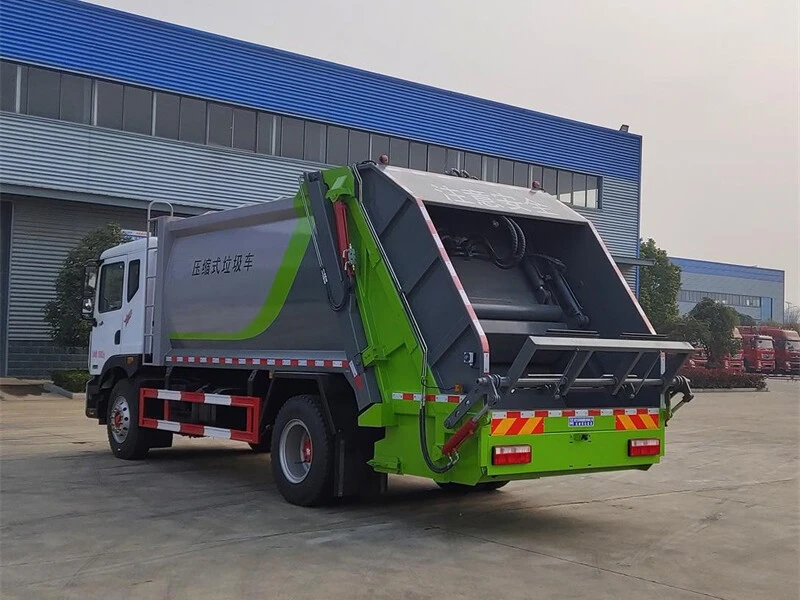

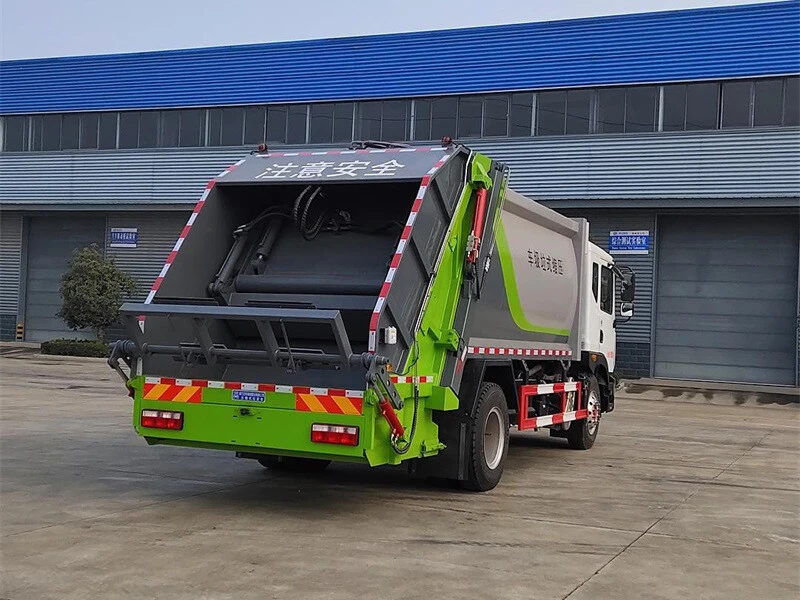

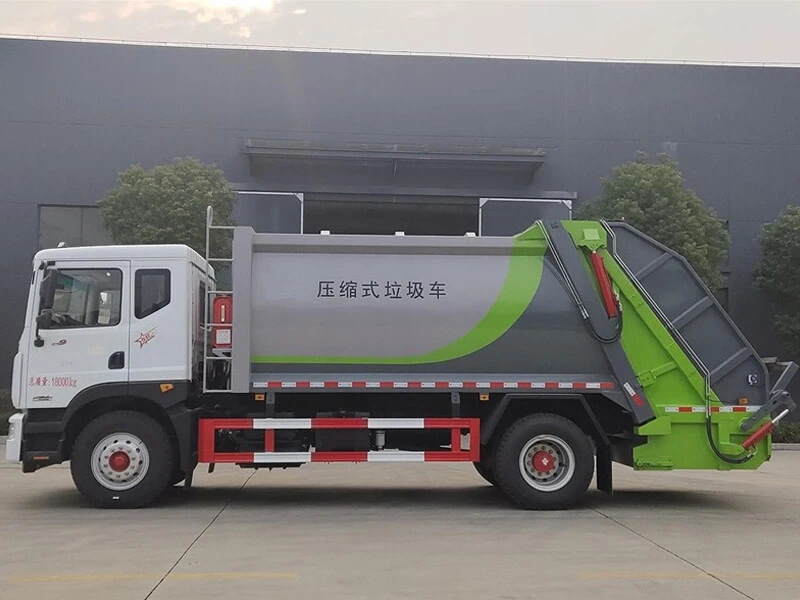

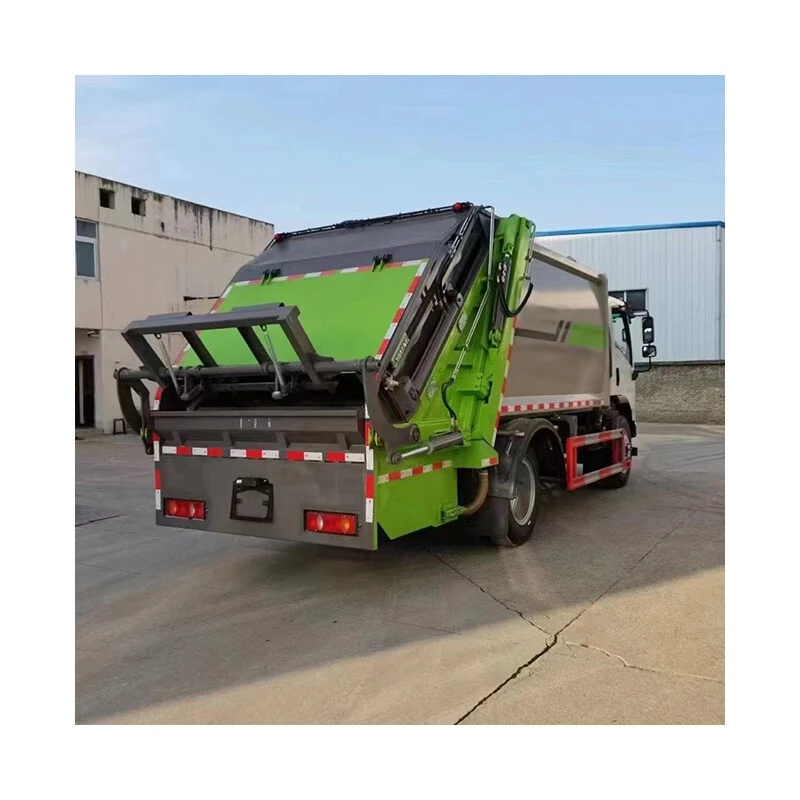

Garbage Truck 14CBM


Product Introduction

The garbage compression truck uses a rear-mounted device to connect with the garbage can or garbage bucket, and together they form a mobile garbage transfer station, achieving multiple uses of one vehicle, pollution-free garbage collection and transportation. It effectively prevents the pollution caused by the scattering and flying of garbage during the collection and transportation process. It improves labor efficiency and reduces labor intensity. It is a new type of ideal sanitation vehicle.


Vehicle NameCL5181ZYS6AQC Compression Garbage TruckChassis modelEQ1185LJ9CDE
Total mass (kg)18000Curb weight(Kg)10500,10900,11100
Rated load capacity7370,7305,6970,6905,6770,6705Wheelbase4500mm
VolumeActual volume 14 cubic meters
Vehicle length, width and height8530,8650,8690,8720,8810,8840*2500,2550*3250mm
 EngineModelEngine EnterpriseDisplacementPowerHorsepower
D4.0NS6B195Cummins Engine4000143195
 Chassis configurationEngine 195HP , Fast eight-speed ( 8JS75 ), air brake, front and rear axle 4.5/10 Dana leaf spring 8/10+7 , frame 860-250x80x7, air conditioning, driving recorder, power steering, electric doors and windowsKangji 230HP , Fast 8JS75, 4.5/10 Dana bridge, 250 frame, original air conditioning, electric glass, ABS, air brake, exhaust brake, original power take-off
Upper configuration: The net volume of the box is 14 cubic meters, which can hold 245 240L plastic barrels of garbage. The entire vehicle is made of T700 high- strength wear-resistant plate, with 5 sides and 6 bottoms for the box , the filler side plates are 6mm thick and the bottom is 8mm thick, the skateboard and slide are 8mm thick, the bulldozer cylinder is tempered and made of 3 levels to minimize the space occupied by the bulldozer, maximize the box volume, and load more garbage! Upper body electro-hydraulic configuration: power take-off, gear pump, multi-way valve, balance valve, Compression valve, shut-off valve, Juxin hydraulic cylinder (all cylinders are tempered and have buffer), high-pressure oil pipe (3-layer steel wire), Global Steel Pipe (2.2mm thick) 22# thickened, hydraulic oil tank with 3 passes Filter, all cylinder pins are quenched to increase hardness and are not easy to bend or break. CAN bus smart screen operating system with wireless remote control. The system program can be set on the smart screen according to the user's usage conditions. You can set the automatic operation conversion time, throttle control size, automatic fault detection, alarm prompt function, and other standard features.
