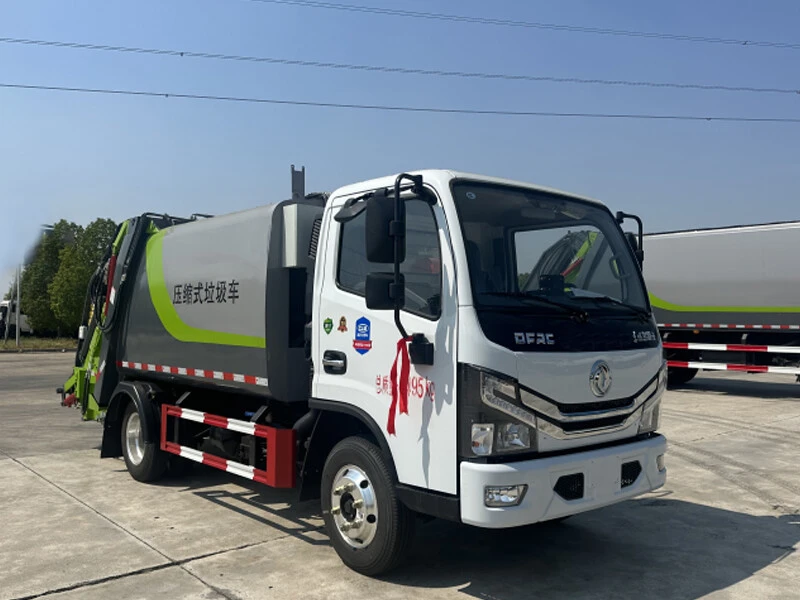

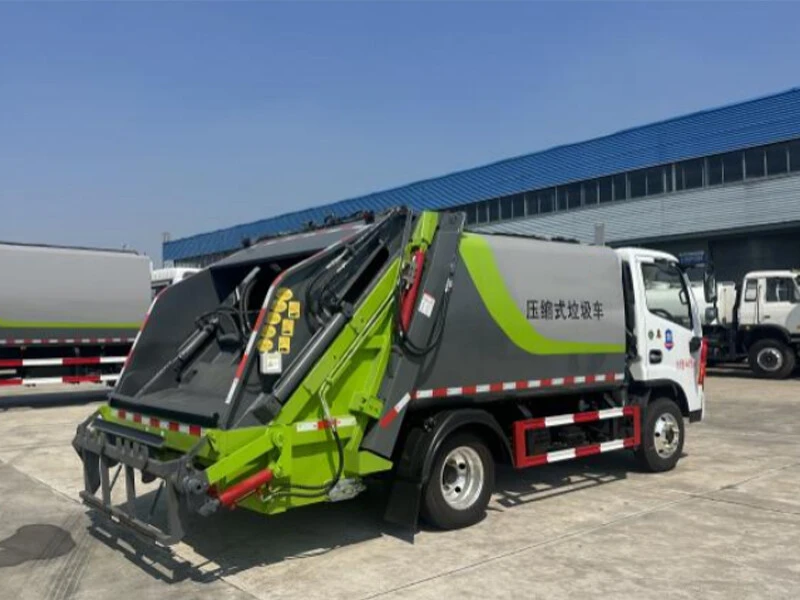

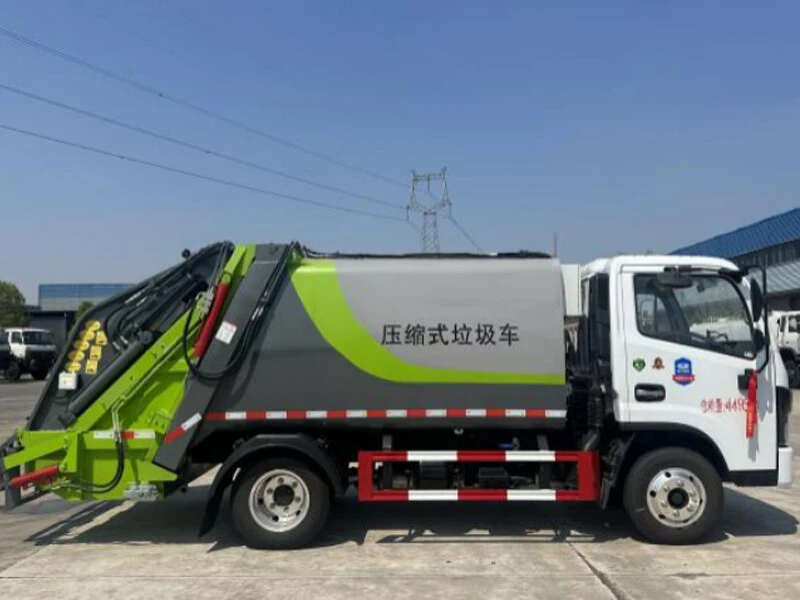

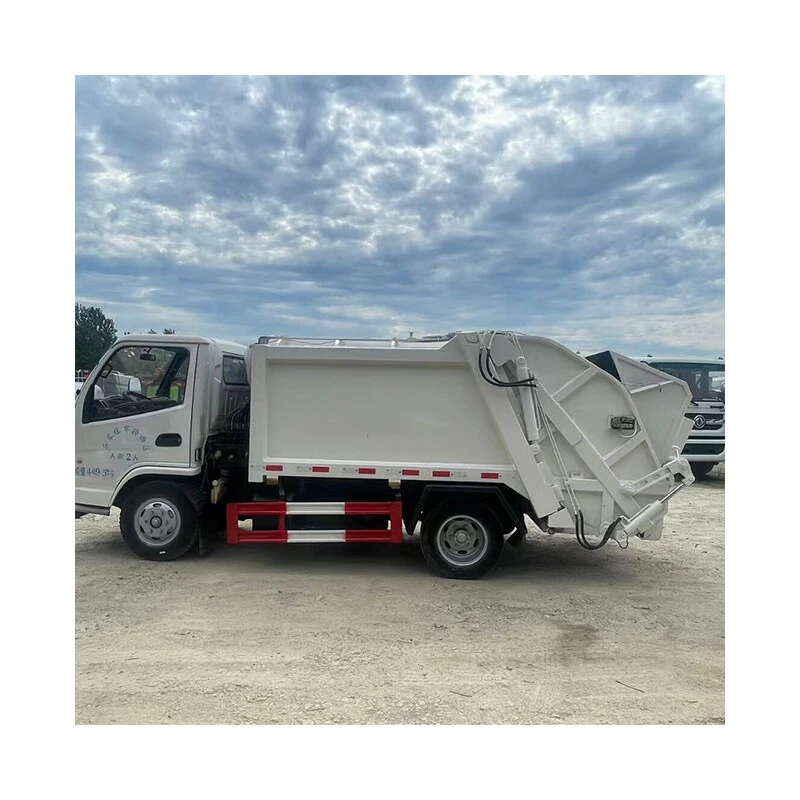

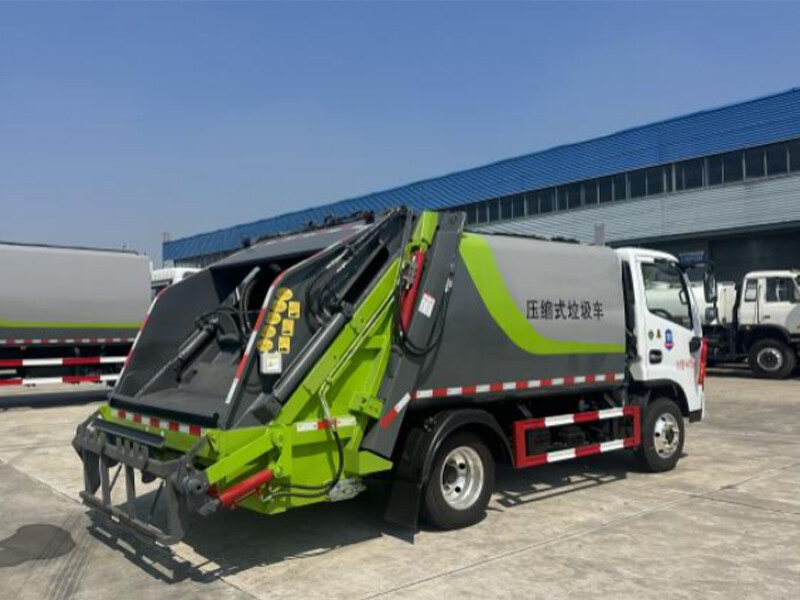

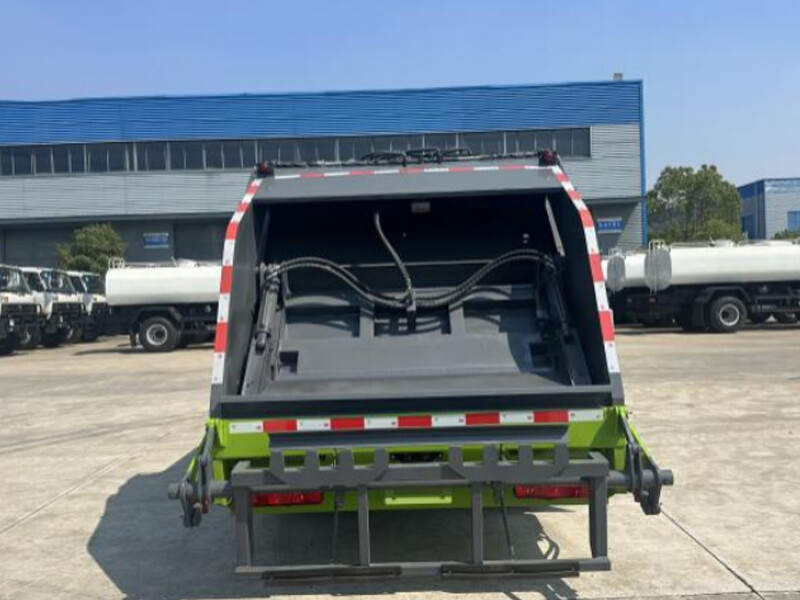

Chassis configuration: Chassis model ; EQ1045S J3CDF , engine model: Q23-132E60, Wanliyang 5-speed gearbox, 1730/single-row cab, 6.50R16LT wire tire (optional aluminum alloy rims), front and rear axles: 1.5/3 T, leaf springs 5/7+3, frame 750-148×50×5, front/rear wheelbase 1529/1513, urea tank/fuel tank: 16/55, air brake, rear axle speed ratio: 4.875  Upper configuration: The net volume of the box is 6 cubic meters, which can hold 105 240L plastic barrels of garbage.

The whole vehicle is made of T700 high-strength wear-resistant plate, the box side is 3 and the bottom is 4, the filler side plate is 4mm thick and the bottom is 6mm thick, the slide plate and the slide are 8mm thick, the box volume is maximized, the bulldozer oil cylinder is tempered and made of 3 levels, which minimizes the space occupied by the bulldozer, maximizes the box volume, and loads more garbage!Upper body electro-hydraulic configuration : power take-off, 540 gear pump, multi-way valve, balancing valve, compression valve, shut-off valve, Juxin hydraulic cylinder (all cylinders have been tempered and have buffer), high-pressure oil pipe (3 layers of steel wire), Global Steel pipe (2.2mm thick) 18# thickened, hydraulic oil tank with 3 filters, all cylinder axle pins have been quenched to increase hardness and are not easy to bend or break, CAN bus smart screen one-button operating system with wireless remote control. The system program can be set on the smart screen according to user usage conditions. The automatic operation conversion time and throttle control size can be set by yourself, with automatic fault detection and alarm prompt function, and other standard configurations.
