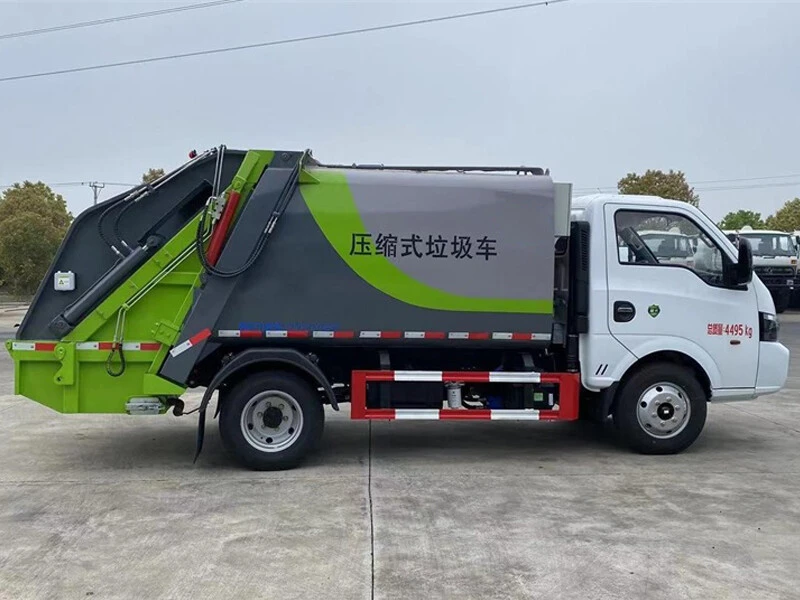

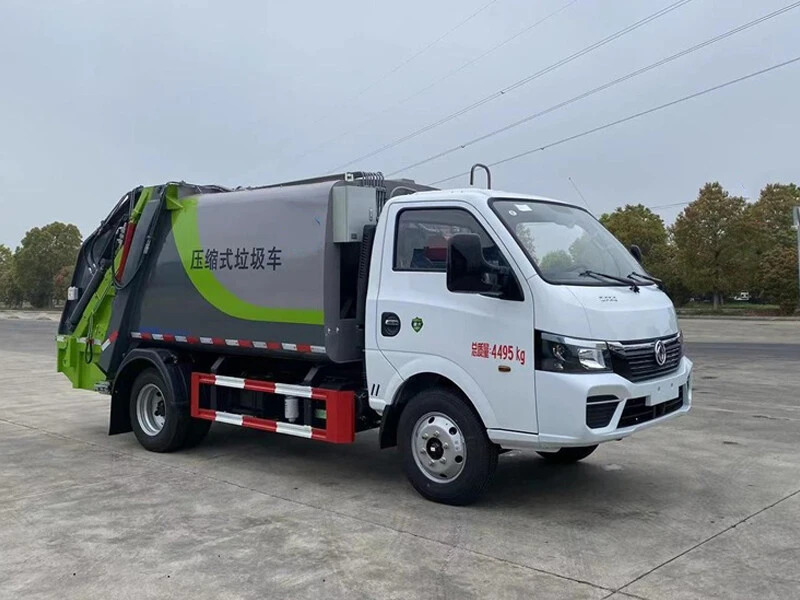

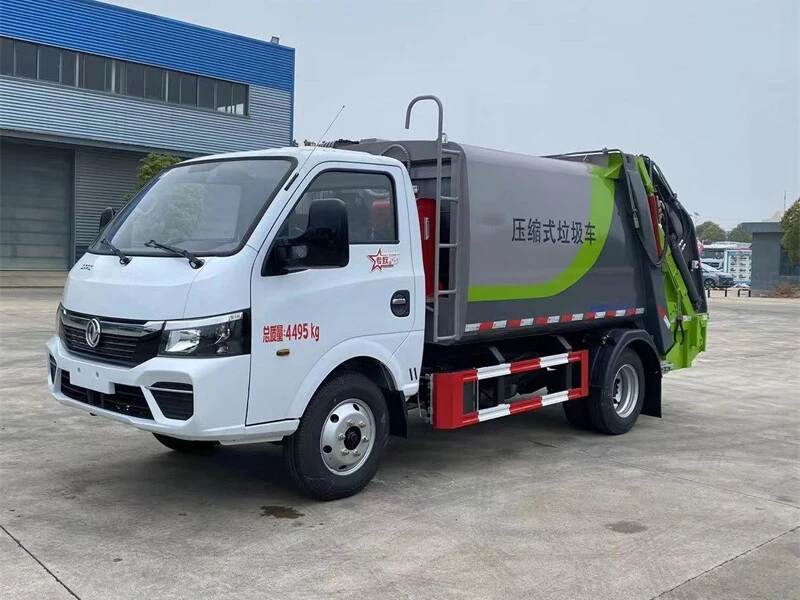

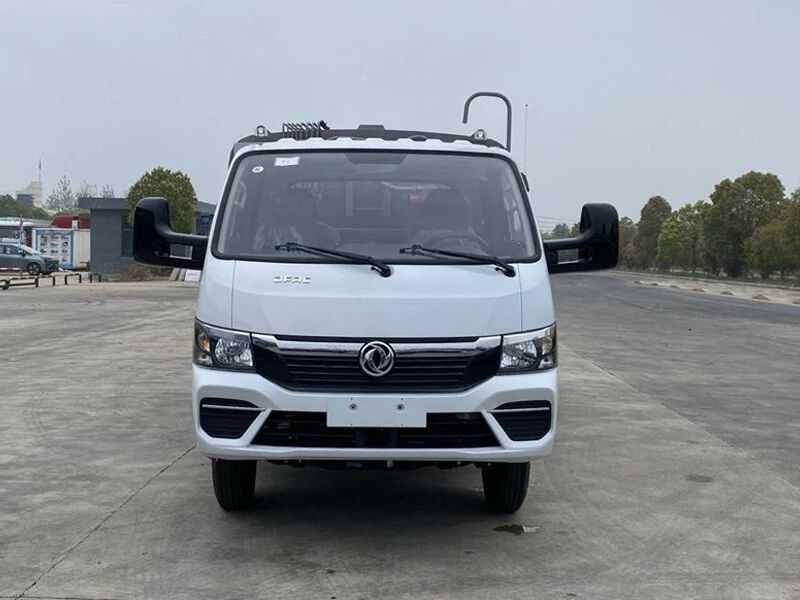

Garbage Truck 5CBM

Product Introduction

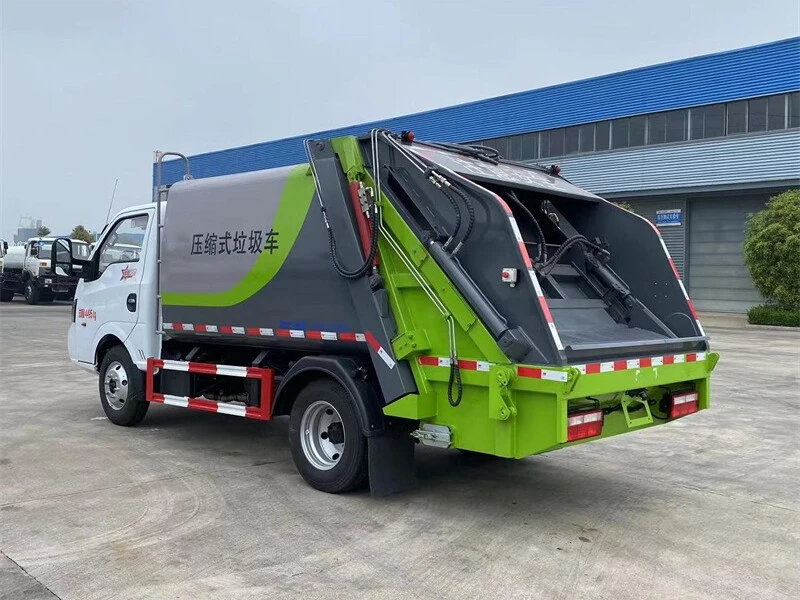

The garbage compression truck uses a rear-mounted device to connect with the garbage can or garbage bucket, and together they form a mobile garbage transfer station, achieving multiple uses of one vehicle, pollution-free garbage collection and transportation. It effectively prevents the pollution caused by the scattering and flying of garbage during the collection and transportation process. It improves labor efficiency and reduces labor intensity. It is a new type of ideal sanitation vehicle.


Vehicle NameCL5041ZYS6AQC Compression Garbage TruckChassis modelEQ1045S26DD
Total mass (kg)4495Curb weight(Kg)3865
Rated load capacity500Wheelbase3000mm
VolumeActual volume 5 cubic meters
Vehicle length, width and height5995*2080*2750mm
EngineModelEngine EnterpriseDisplacementPowerHorsepower
D20TCIF62Kunming Yunnei Power Co., Ltd.320098140
Chassis configurationEngine model : D20TCIF62 (140 HP), cab width: 1800/single row, Wanliyang 5-speed gearbox, front and rear axles: 1.5T/3T, leaf spring: 3/4+3, frame (mm): 760-170x60x4, tire: 6.50R16 12PR, urea tank/fuel tank capacity: 16L/55L, rear axle ratio: 4.875
Upper configuration: The net volume of the box is 5 cubic meters, which can hold 90 barrels of 240L plastic barrels of garbage. The entire vehicle is made of T700 high-strength wear-resistant plate, and the box side is 3 and the bottom is 4. The filler side plate is 4mm thick and the bottom is 6mm thick. The skateboard and slide are 8mm thick. The box volume is maximized, the bulldozer cylinder is tempered, and it is made of 3 levels to minimize the space occupied by the bulldozer , maximize the box volume, and load more garbage!Upper body electro-hydraulic configuration: power take-off, 540 gear pump, multi-way valve, balancing valve, compression valve, shut-off valve, Juxin hydraulic cylinder (all cylinders have been tempered and have buffer), high-pressure oil pipe (3 layers of steel wire), Global Steel pipe (2.2mm thick) 18# thickened, hydraulic oil tank with 3 filters , all cylinder axle pins have been quenched to increase hardness and are not easy to bend or break, CAN bus smart screen one-key operating system with wireless remote control. The system program can be set on the smart screen according to user usage conditions. The automatic operation conversion time and throttle control size can be set by yourself, with automatic fault detection and alarm prompt function, and other standard configurations.
