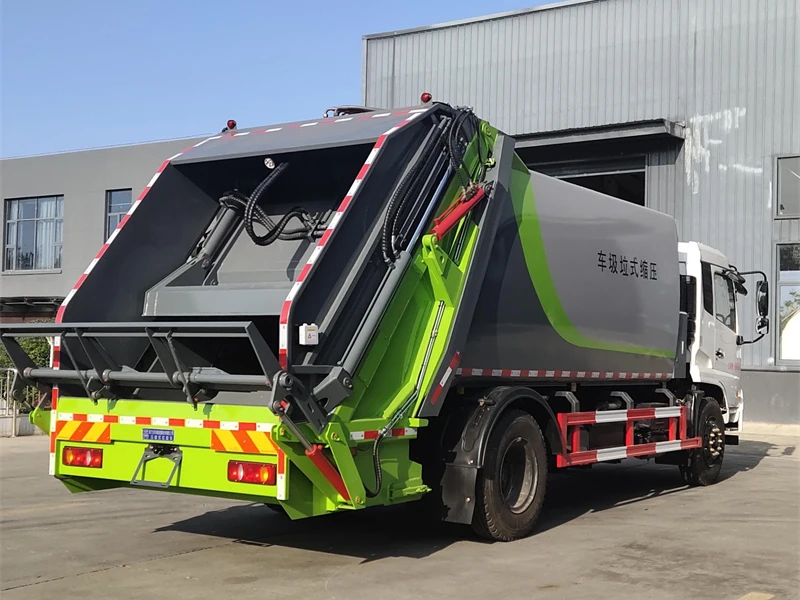

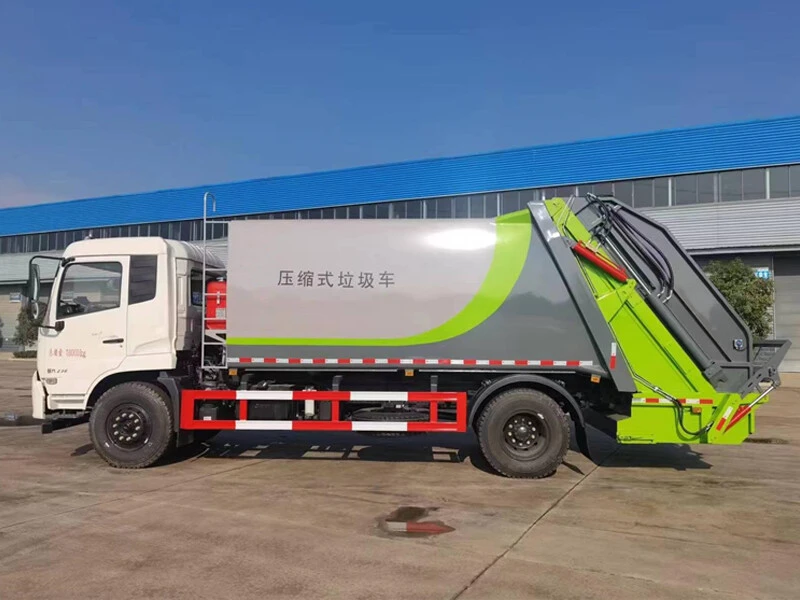

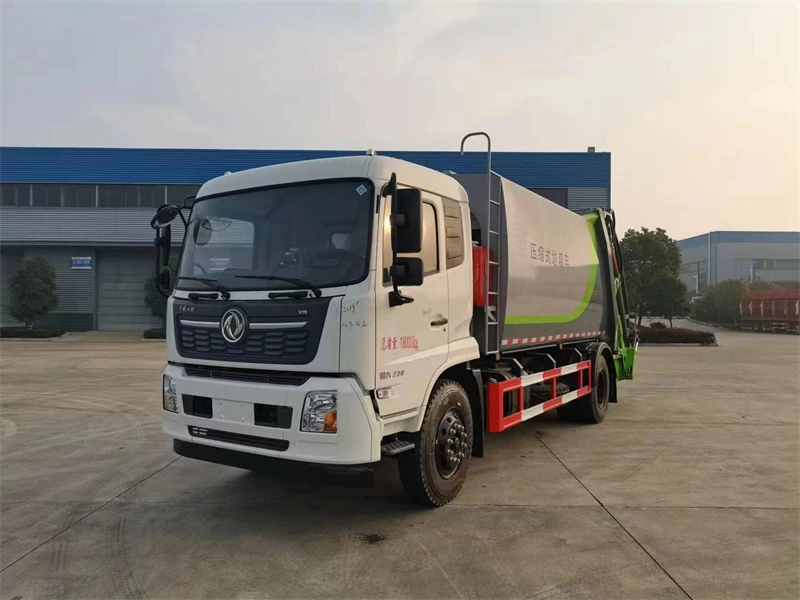

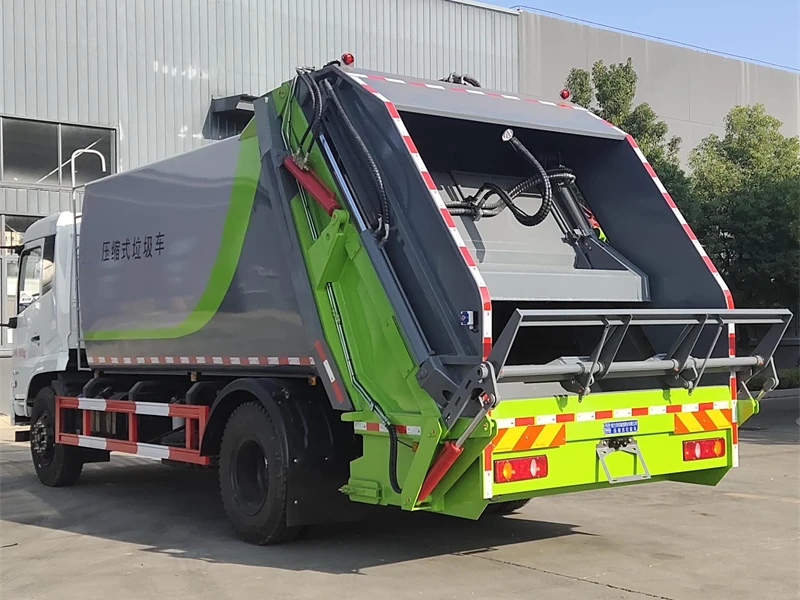

Garbage Truck 16.2CBM


Product Introduction

The garbage compression truck uses a rear-mounted device to connect with the garbage can or garbage bucket, and together they form a mobile garbage transfer station, achieving multiple uses of one vehicle, pollution-free garbage collection and transportation. It effectively prevents the pollution caused by the scattering and flying of garbage during the collection and transportation process. It improves labor efficiency and reduces labor intensity. It is a new type of ideal sanitation vehicle.


Vehicle NameCL5180ZYS6AQC Compression Garbage TruckChassis modelDFH1180EX8
Total mass (kg)18000Curb weight(Kg)11060,11420
Rated load capacity6745,6450,6385Wheelbase4500,4700mm
VolumeActual volume 16.2 cubic meters
Vehicle length, width and height9205,9180,9150,9005,8980,8950,8805,8780,8750*2550*3400mm
 EngineModelEngine EnterpriseDisplacementPowerHorsepower
B6.2NS6B230Cummins Engine6200169230
 Chassis configurationCummins 230HP , Fast 8 -speed gearbox, front and rear axles 4.5T9 single reduction, leaf spring 8/10+8 , frame 250x80x7+4. With air conditioning, central control but not remote control, fuel tank 160L , main reduction ratio 5.286 , tire : 10.00R20 18PR
Upper configuration : The net volume of the box is 16.2 cubic meters, which can hold 285 240L plastic barrels of garbage. The whole vehicle is made of T700 high-strength wear-resistant plate, the box side is 5 and the bottom is 6, the filler side plate is 6mm thick and the bottom is 8mm thick, and the skateboard, the slideway is 8mm thick, the bulldozer cylinder is tempered and made of 3 levels to minimize the space occupied by the bulldozer and maximize the box volume, so that more garbage can be loaded!Upper body electro-hydraulic configuration : power take-off, gear pump, multi-way valve, balancing valve, compression valve, shut-off valve, Juxin hydraulic cylinder (all cylinders are quenched and tempered, with buffer high-pressure oil pipe (3 layers of steel wire), Global Steel Pipe (2.2mm thick) 22# thickened, hydraulic oil tank with 3 filters, all cylinder shaft pins are quenched to increase hardness and are not easy to bend or break , CAN bus smart screen operating system with wireless remote control, the system program can be set on the smart screen according to the user's usage conditions , the automatic operation conversion time and throttle control size can be set by yourself, with automatic fault detection, alarm prompt function, and other standard configurations.
