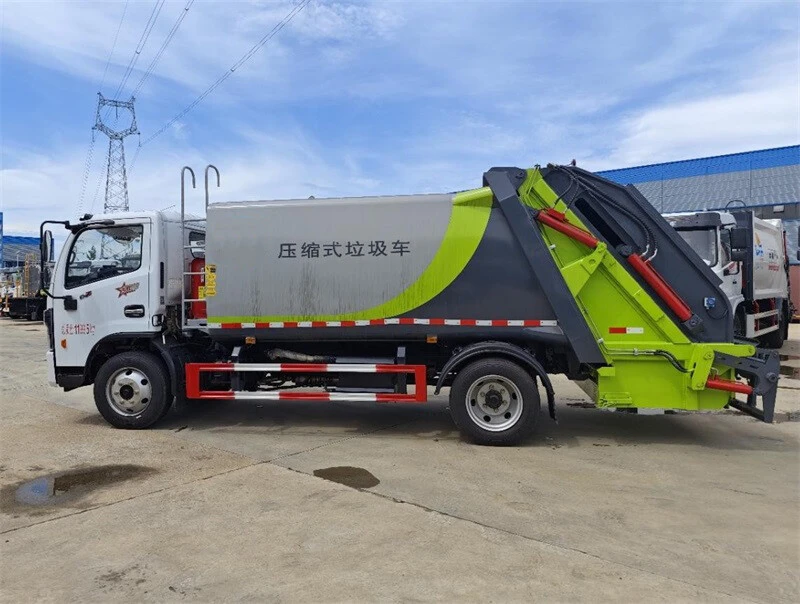

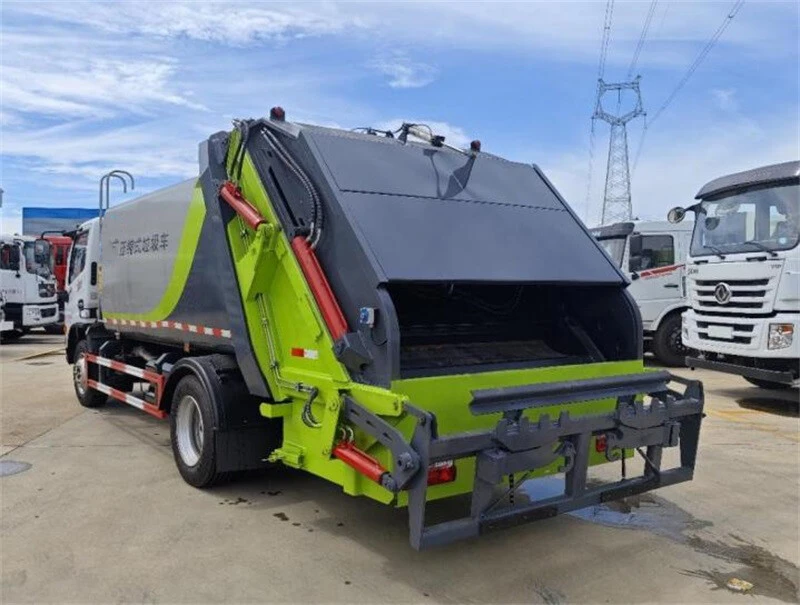

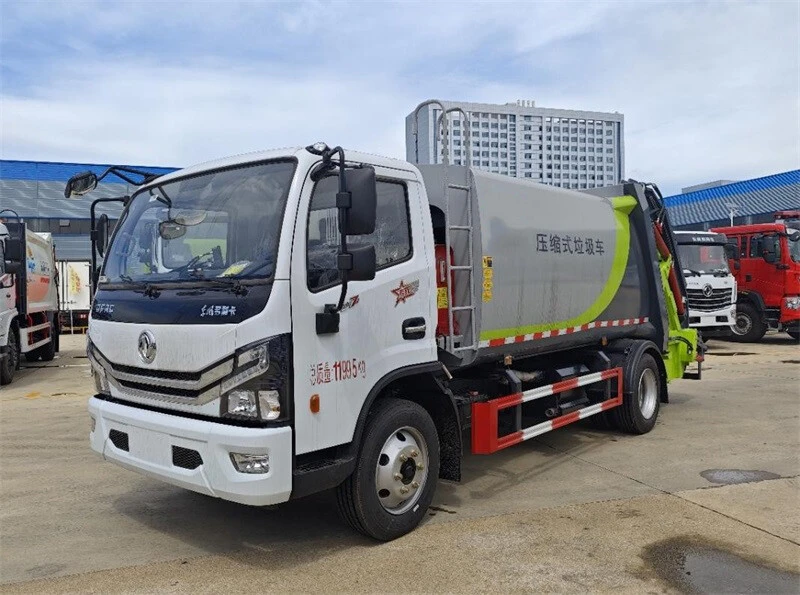

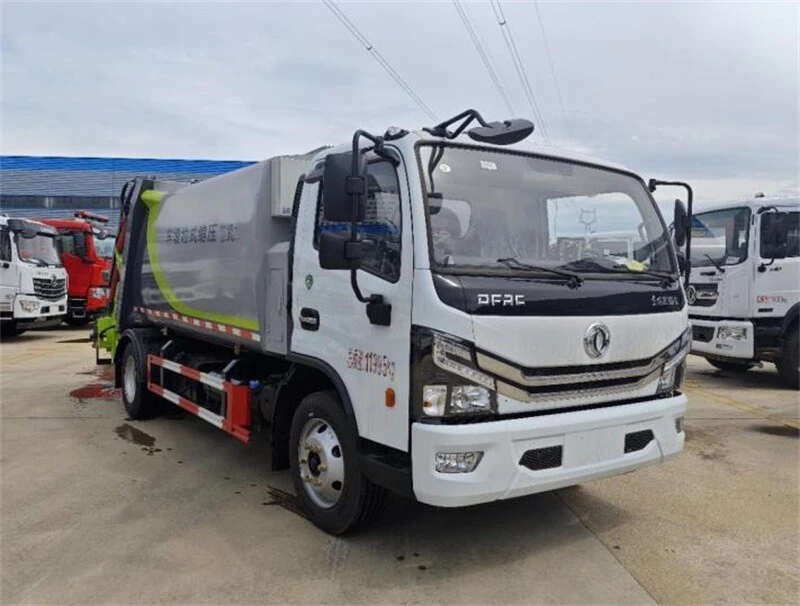

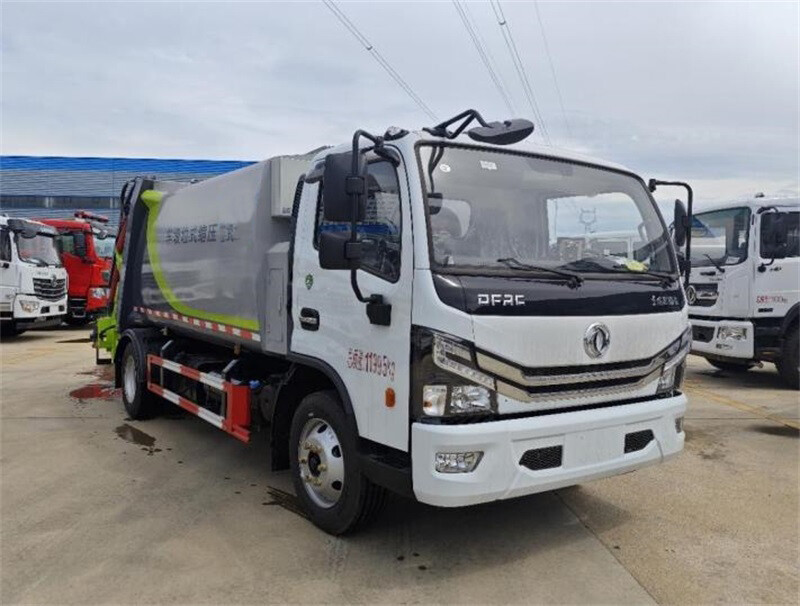

Garbage Truck 9.3CBM


Product Introduction

The garbage compression truck uses a rear-mounted device to connect with the garbage can or garbage bucket, and together they form a mobile garbage transfer station, achieving multiple uses of one vehicle, pollution-free garbage collection and transportation. It effectively prevents the pollution caused by the scattering and flying of garbage during the collection and transportation process. It improves labor efficiency and reduces labor intensity. It is a new type of ideal sanitation vehicle.



Vehicle Name

CL5120ZYS6AQC Compression Garbage TruckChassis modelEQ1125SJ8CDC
Total mass (kg)11995Curb weight(Kg)6900,7150,6700
Rated load capacity4900,4650,5100Wheelbase3800mm
VolumeActual volume 9.3 cubic meters
Vehicle length, width and height7400,7450*2350*2800mm
 EngineModelEngine EnterpriseDisplacementPowerHorsepower
YCY30165-60Yuchai2970121165
 Chassis configurationDongfeng cab, width 2030/single row, Yuchai 165 horsepower, Wanliyang six-speed gearbox, 3800 wheelbase, electric doors and windows, original air conditioning, power steering, central locking, ABS, Air brake, urea tank/fuel tank (L) 18 /200, tire 245/70R19.5 vacuum tire
Upper configuration: The net volume of the box is 9.3 cubic meters, which can hold 175 240L plastic barrels of garbage. The entire vehicle is made of T700 high-strength wear-resistant plate, with 4 sides and 5 bottoms for the box. The filler side plate is 5mm thick and the bottom is 8mm thick. The skateboard and slide are 8mm thick. The bulldozer cylinder is tempered and made of 3 levels to minimize the space occupied by the bulldozer and maximize the box volume, so that more garbage can be loaded!Upper body electro-hydraulic configuration: power take-off, gear pump, multi-way valve, balancing valve, compression valve, shut-off valve, Juxin hydraulic cylinder (all cylinders are tempered, with buffer, Guangzhou Tianhe high-pressure oil pipe (3 layers of steel wire), Global Steel Pipe (2.2mm thick) 18# thickened, hydraulic oil tank with 3 filters, all cylinder shaft pins are quenched to increase hardness and are not easy to bend or break , CAN bus smart screen operating system with wireless remote control, the system program can be set on the smart screen according to the user's usage conditions , the automatic operation conversion time and throttle control size can be set by yourself, with automatic fault detection and alarm prompt function, and other standard configurations.
