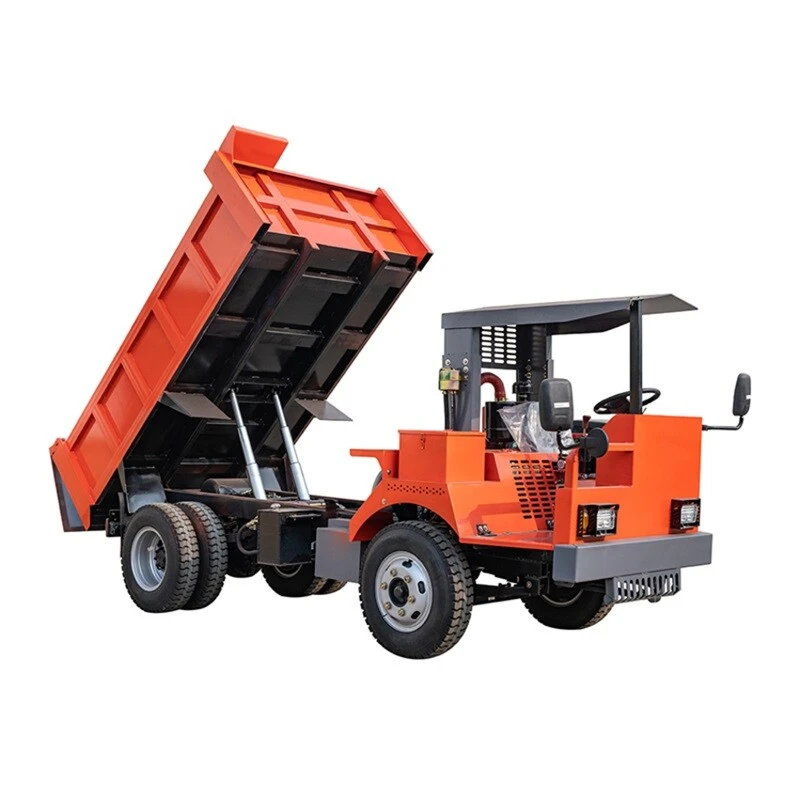

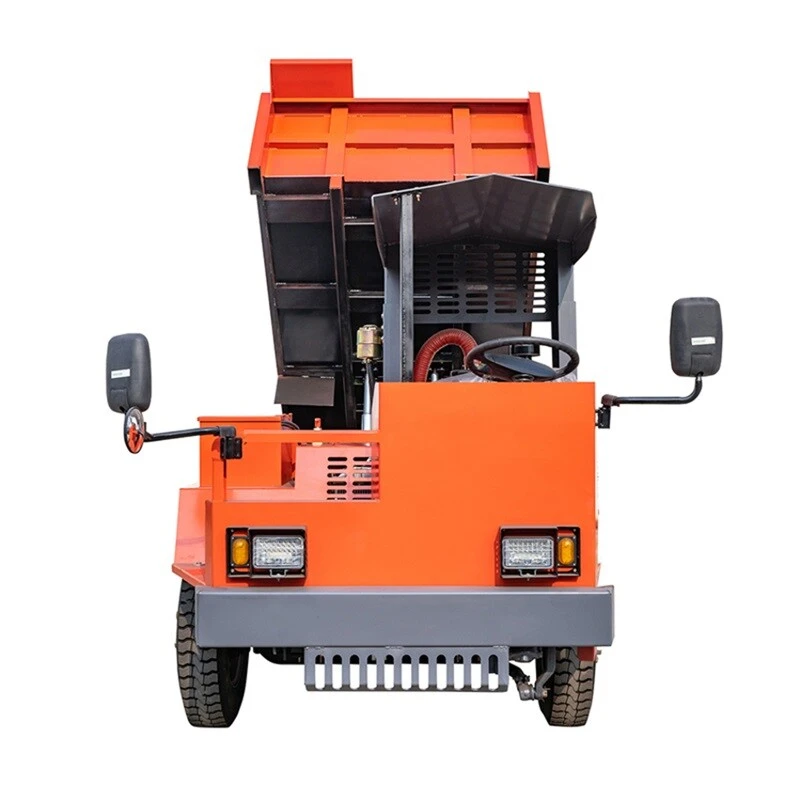

10T Mining Dump Truck

Mining underground dump trucks have many advantages such as high horsepower, small footprint, small sound, convenient and flexible operation, energy saving and consumption saving, and easy operation; mining underground dump trucks can be equipped with different engines according to different use environments and purposes, and can be customized according to customer needs.


Main features of mining wheel dump trucks:

1. Wide range of use, simple structure, stable transmission, labor-saving operation, and easy to realize automatic control.

2. Large traction, good climbing and grip performance, and strong transportation capacity.

3. Small turning radius, maneuverability, especially suitable for narrow venues, reducing the cost of road construction.

4. Easy to operate. All parts are national first-line brand products, with excellent quality, and it is easier to buy them in the local area in time when replacing parts.

5. Chassis: The front and rear cast axles specially used by our factory are stronger and longer-lasting than traditional welded axles. The chassis is fully reinforced and meets mining standards.

6.Technology: The whole vehicle breaks through the traditional technology, and the vehicle is produced in a split type, which can be disassembled and assembled at will, which is convenient for going down the well or maintenance.


Product numberX J-10 ton rear drive dump truck
Engine modelYunnei 4102 turbocharged diesel engine
Engine power76KW/103HP
Gearbox ModelWanliyang 545 gearbox/high and low speed
Axle ModelIncreased weight 1080 drive rear axle (145 main reduction)
Carriage size3200mm*2000mm*600mm(length*width*height)
Carriage volume3.54m³ (plain packaging)
Standard load10000KG
Carriage steel plate thicknessBottom 8mm side 6mm
Tire brand/model"Kunlun" 750R16 mining steel wire tire (rear left and right double wheels)
Frame model180*60*6 (manganese steel welded frame)
Hydraulic cylinder model115*900 (diameter*stroke)
Dumping methodRear double top dump
Number of spring plates/modelFront 10 pieces, rear 10 pieces + 5 pieces 75mm*13mm
Drive modeRear axle drive
Braking methodAir brake
Steering methodHydraulic steering gear steering
Exhaust gas treatmentWater filtration and purification (patented)
Driving styleLeft-hand drive
CabMine lifting safety roof
Vehicle size4970mm*2050mm*2110mm(length*width*height)
Gear shifting methodGear line gear
Front and rear wheelbase2590mm
Vehicle weight3850KG
Cab height2110mm (ground to the highest point of the cab)
Carriage height1750mm (ground to highest point of carriage)
Carriage lifting highest point3375mm
Minimum ground clearance180mm
Maximum climbing angle14° (heavy vehicle climbing)
Remark:The width of the vehicle can be selected as 1800mm; the size of the vehicle box can be customized;
