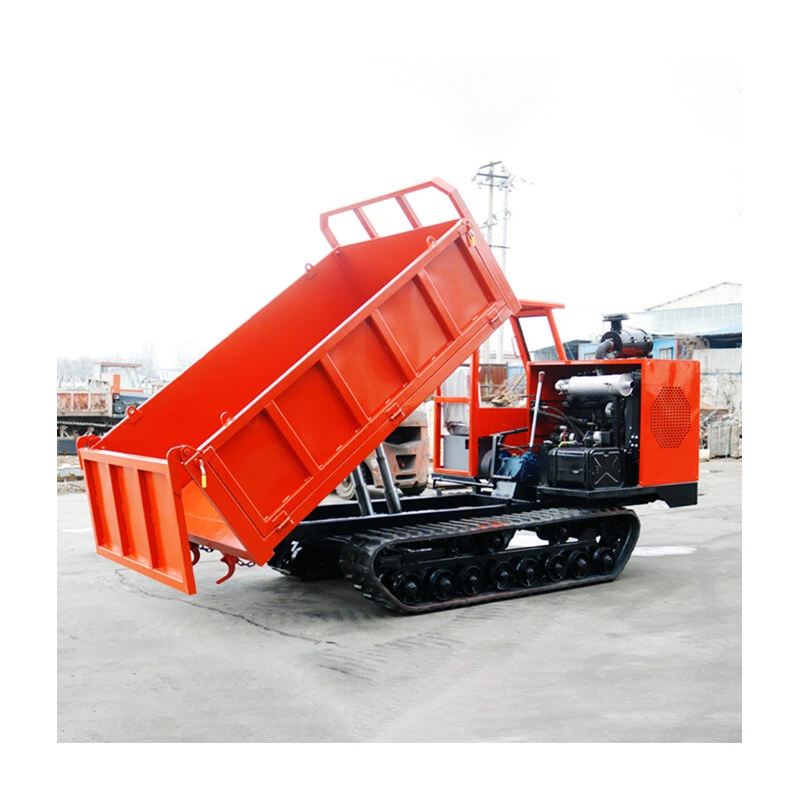

8t Crawler Dump Truck

Product Description

The working principle of crawler dump truck is to realize the functions of driving and lifting and unloading through crawler system. The crawler system consists of crawler, crawler plate, driving wheel, guide wheel and supporting roller. When driving, the engine drives the crawler driving wheel through the transmission device, and then the crawler rotates in a circle through the sprocket and chain, thereby driving the crawler dump truck forward or backward. When the crawler dump truck needs to lift and unload, the hydraulic system controls the steering cylinder to make the front and rear supporting rollers move vertically relative to the main beam, thereby driving the car body to tip or reset.


Advantages of crawler dump trucks:

1. High stability: Due to the design of the crawler tracks, crawler dump trucks can maintain good grip and stability on various terrains and are suitable for operations in complex terrains.

2. Strong carrying capacity: The crawler structure can provide a larger ground contact area, thereby increasing the vehicle's carrying capacity.

3. Strong adaptability: Crawler dump trucks are suitable for a variety of working environments, such as construction sites, mines, etc., and can cope with harsh road conditions and heavy-load transportation needs.


Model8T Crawler dump truck (sit-on)
Length*Width*Height4030*2060*2300
Cargo box size2700*2000*550 (3 bottom and 3 side)
Engine BrandWeichai Jiaxin
Engine model4102
Engine power68kw
Engine horsepower92.48 hp
Gearbox ModelDF-145
Gear5+1 gear
Track typeEngineering rubber tracks
Track Model400*90*70
Chassis width2200
Ground length2200mm
Number of track rollers32
Number of wheels per side8
Various wheel models200 heavy wheels (front and rear solid wheels)
Bearing TypeFront and rear 307 bearings, 207 bearings
Hydraulic dump functionDouble top dump truck (115*900*3 sections)
Top speed25km/h
Minimum speed10km/h
Various wheel materialsPrecision casting
Various shaft materialsPrecision steel casting and heat treatment
Drive modeMechanical drive
Bearing weight8 tons
Vehicle weight3900kg
Height of cargo box from ground78cm
Slope Angle35 degrees
Uphill angle35 degrees
Startup methodElectric start
Simple ceilingSingle semi-enclosed room
Loading axleDongfeng 1098 Heavy Rear Axle
