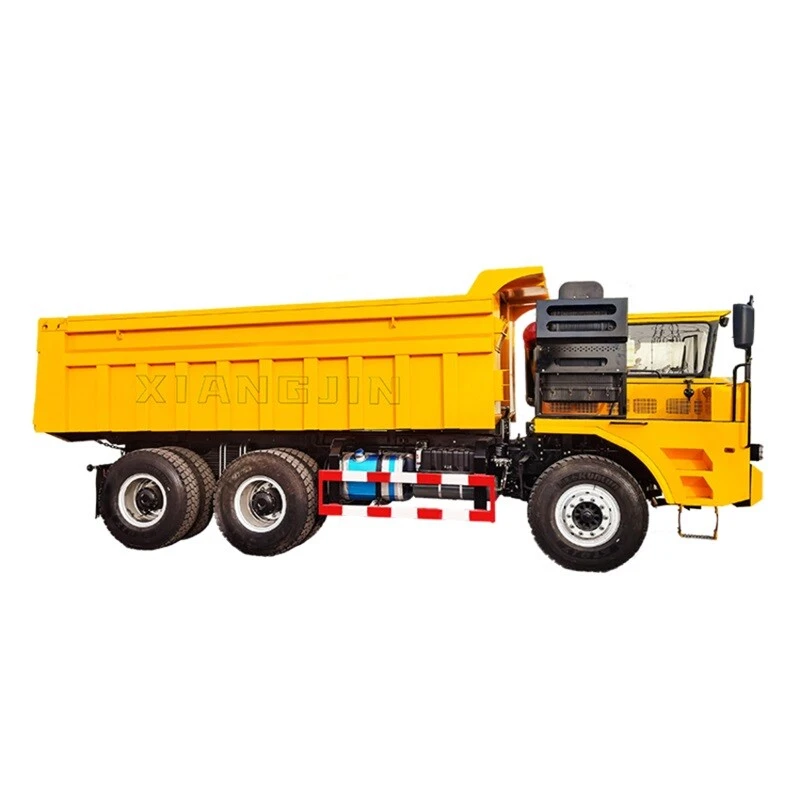

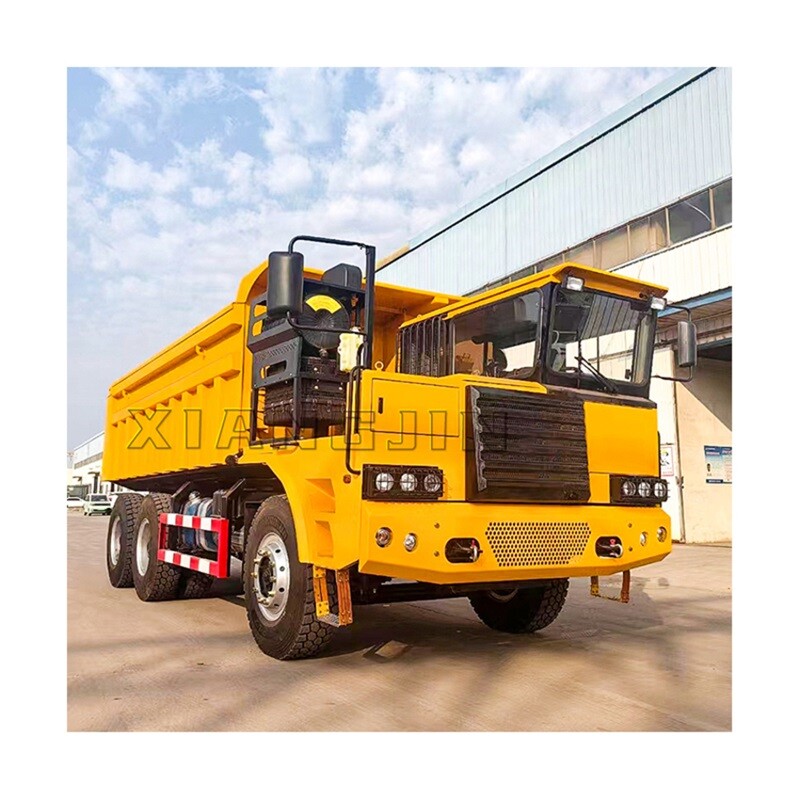

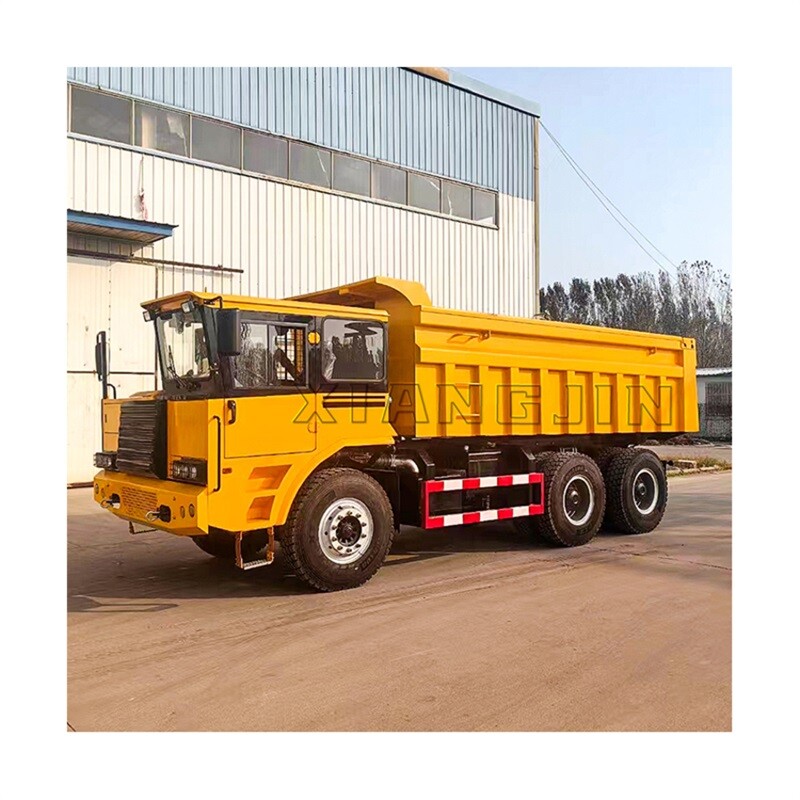

20T Mining Dump Truck

Mining underground dump trucks have many advantages such as high horsepower, small footprint, small sound, convenient and flexible operation, energy saving and consumption saving, and easy operation; mining underground dump trucks can be equipped with different engines according to different use environments and purposes, and can be customized according to customer needs.


Main features of mining wheel dump trucks:

1. Wide range of use, simple structure, stable transmission, labor-saving operation, and easy to realize automatic control.

2. Large traction, good climbing and grip performance, and strong transportation capacity.

3. Small turning radius, maneuverability, especially suitable for narrow venues, reducing the cost of road construction.

4. Easy to operate. All parts are national first-line brand products, with excellent quality, and it is easier to buy them in the local area in time when replacing parts.

5. Chassis: The front and rear cast axles specially used by our factory are stronger and longer-lasting than traditional welded axles. The chassis is fully reinforced and meets mining standards.

6.Technology: The whole vehicle breaks through the traditional technology, and the vehicle is produced in a split type, which can be disassembled and assembled at will, which is convenient for going down the well or maintenance.


Product numberX J-20 tons rear drive dump truck
Engine modelYuchai 260 HP diesel engine
Engine power191KW/260HP
Gearbox ModelFast 10JS120 gearbox/high and low speed
Axle ModelHeavy-duty Beibenbian bridge reduction (6.73)
Carriage size4300mm*2400mm*800mm(length*width*height)
Carriage volume8.25m³ (plain packaging)
Standard load20000KG
Carriage steel plate thicknessBottom 10mm side 8mm

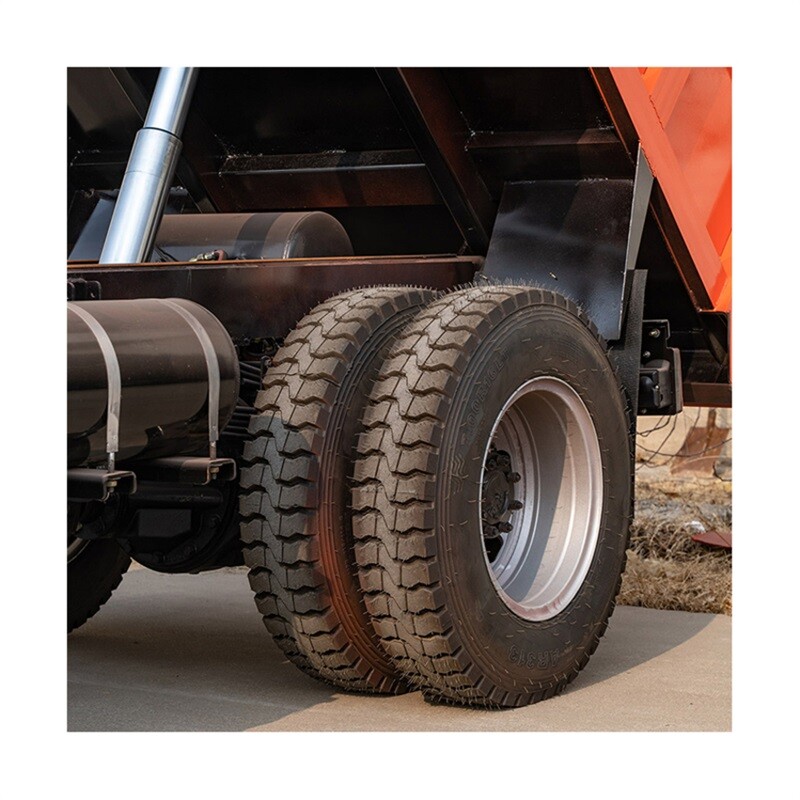

Tire brand/model"Kunlun" 1000R20 mining steel wire tire (rear left and right double wheels)
Frame model300*70*8+8 (double-layer riveted automobile beam) cold riveting
Hydraulic cylinder model158*1800 (diameter*stroke)
Dumping methodRear double top dump
Number of spring plates/modelSTR front axle assembly 16*90-10 STR rear axle assembly 18*90-12+8
Drive modeRear axle drive
Braking methodAir brake

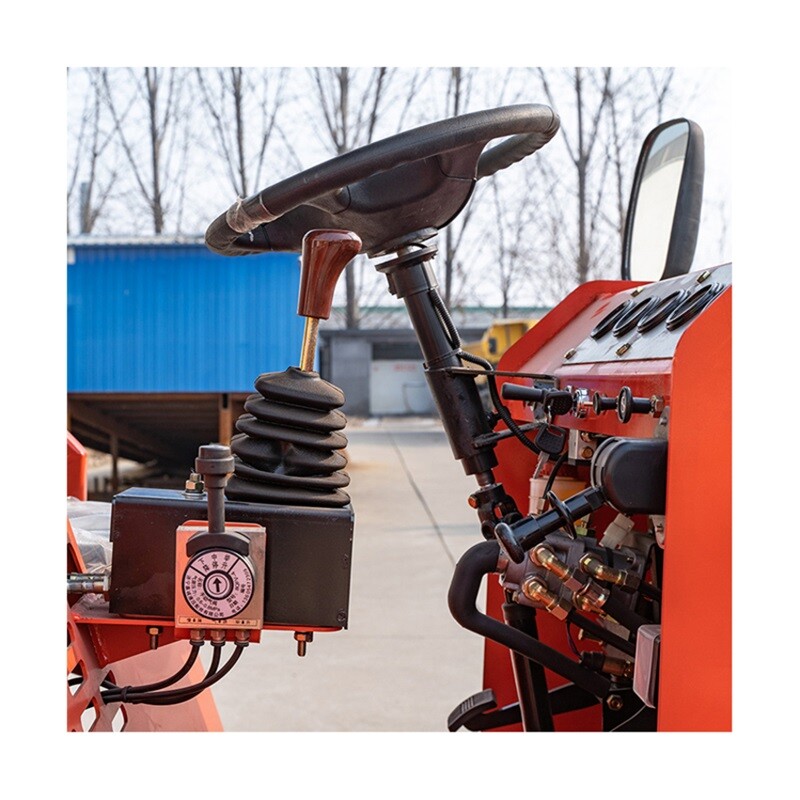

Steering methodHydraulic steering gear steering
Exhaust gas treatmentWater filtration and purification (patented)
Driving styleLeft-hand drive

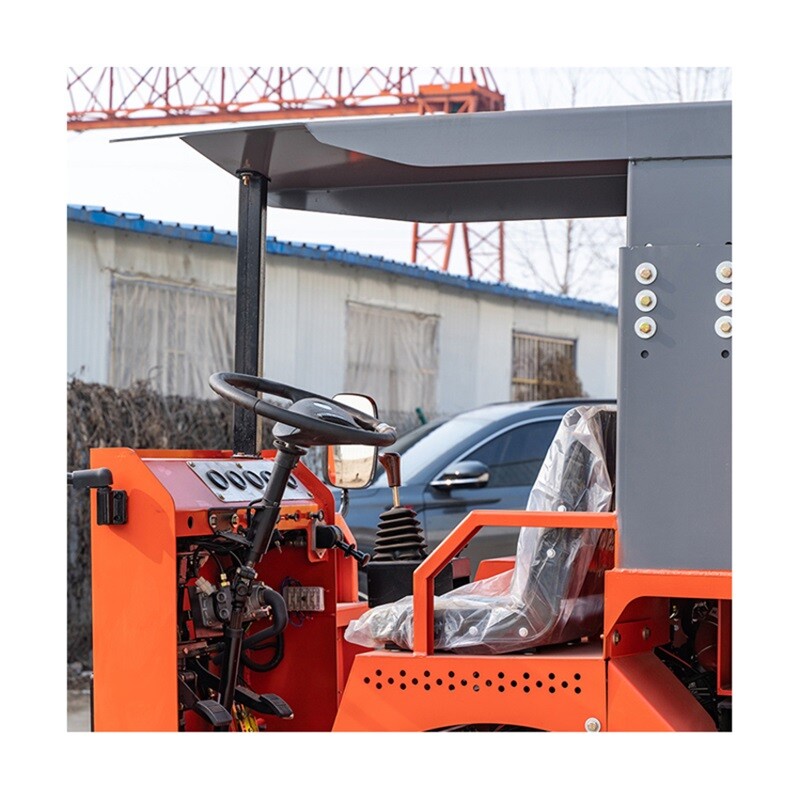

CabMine single semi-enclosed cab
Vehicle size6400mm*2450mm*2480mm(length*width*height)
Gear shifting methodGear line gear
Front and rear wheelbase3450mm
Vehicle weight9280KG
Cab height2460mm (ground to the highest point of the cab)
Carriage height2390mm (ground to highest point of carriage)
Carriage lifting highest point4930mm
Minimum ground clearance330mm
Maximum climbing angle14° (heavy vehicle climbing)
Remark:The size of the car box can be customized;
