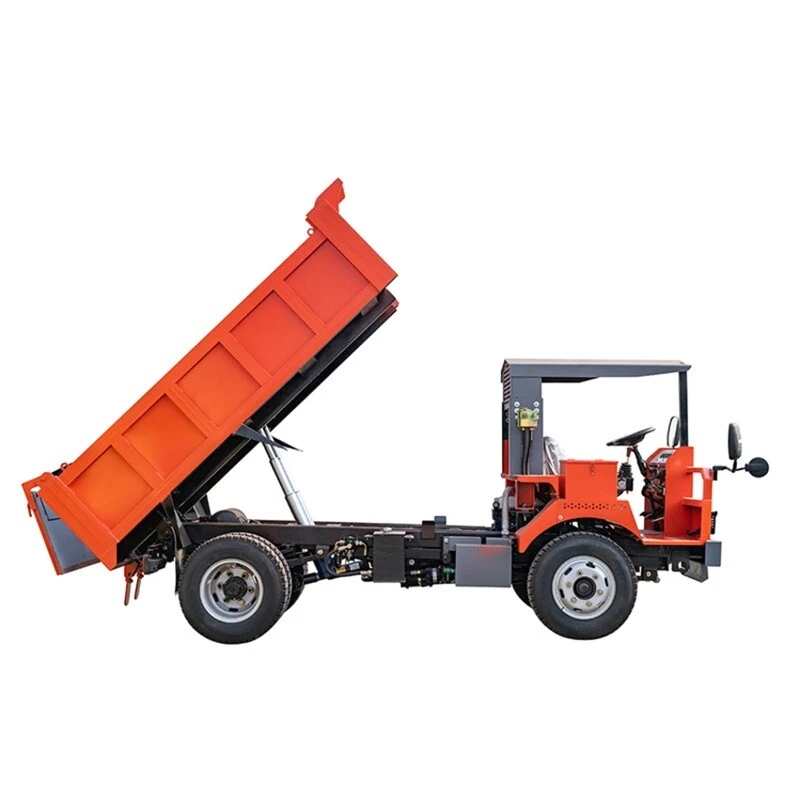

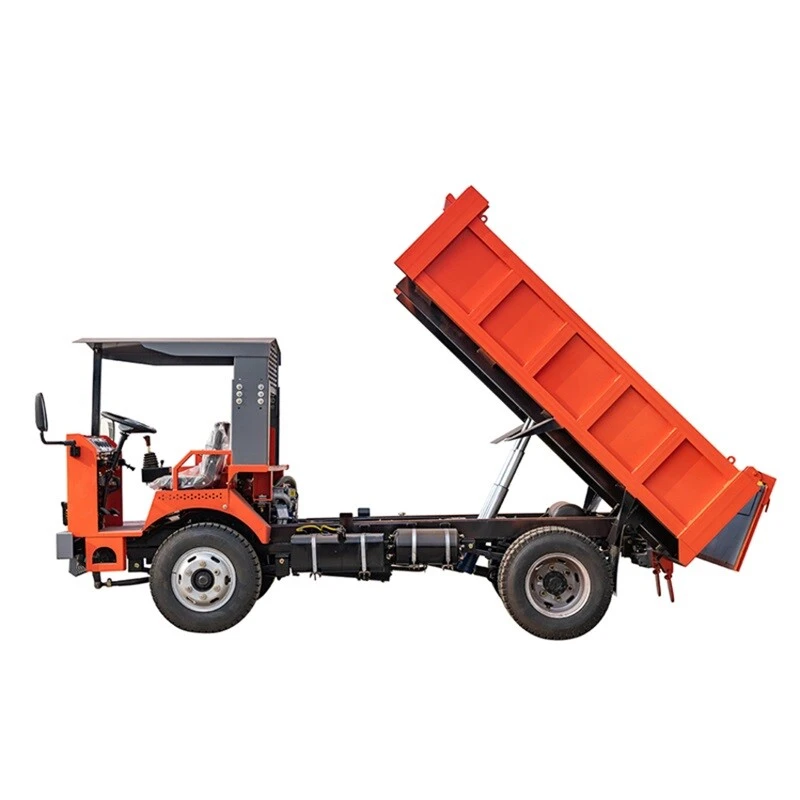

3.5T Mining Dump Truck

Mining underground dump trucks have many advantages such as high horsepower, small footprint, small sound, convenient and flexible operation, energy saving and consumption saving, and easy operation; mining underground dump trucks can be equipped with different engines according to different use environments and purposes, and can be customized according to customer needs.


Main features of mining wheel dump trucks:

1. Wide range of use, simple structure, stable transmission, labor-saving operation, and easy to realize automatic control.

2. Large traction, good climbing and grip performance, and strong transportation capacity.

3. Small turning radius, maneuverability, especially suitable for narrow venues, reducing the cost of road construction.

4. Easy to operate. All parts are national first-line brand products, with excellent quality, and it is easier to buy them in the local area in time when replacing parts.

5. Chassis: The front and rear cast axles specially used by our factory are stronger and longer-lasting than traditional welded axles. The chassis is fully reinforced and meets mining standards.

6.Technology: The whole vehicle breaks through the traditional technology, and the vehicle is produced in a split type, which can be disassembled and assembled at will, which is convenient for going down the well or maintenance.


Product numberX J-3.5 ton rear drive dump truck
Engine modelChangchai 490 diesel engine
Engine power45.6KW/63HP
Gearbox ModelNanjing 130 gearbox/high and low speed
Axle ModelISUZU rear axle drive
Carriage size2400mm*1500mm*450mm(length*width*height)
Carriage volume1.6m³ (paperback)
Standard load3500KG
Carriage steel plate thicknessBottom 6mm side 4mm
Tire brand/model"Kunlun" 700R16 mining steel wire tire (rear left and right single wheel)
Frame model160*60*6 (manganese steel welded frame)
Hydraulic cylinder model110*900 (diameter*stroke)
Dumping methodRear double top dump
Number of spring plates/model7 front pieces, 8 rear pieces, 6 auxiliary pieces, 70mm*10mm
Drive modeRear axle drive
Braking methodAir brake
Steering methodHydraulic steering gear steering
Exhaust gas treatmentWater filtration and purification (patented)
Driving styleLeft-hand drive
CabMine lifting safety roof
Vehicle size3970mm*1500mm*2080mm(length*width*height)
Gear shifting methodGear line gear
Front and rear wheelbase1970mm
Vehicle weight2390KG
Cab height2080mm (ground to the highest point of the cab)
Carriage height1450mm (ground to the highest point of the carriage)
Carriage lifting highest point2910mm
Minimum ground clearance210mm
Maximum climbing angle14° (heavy vehicle climbing)
Remark:Can be installed with rear double wheels (width 1610mm); the size of the vehicle box can be customized;
