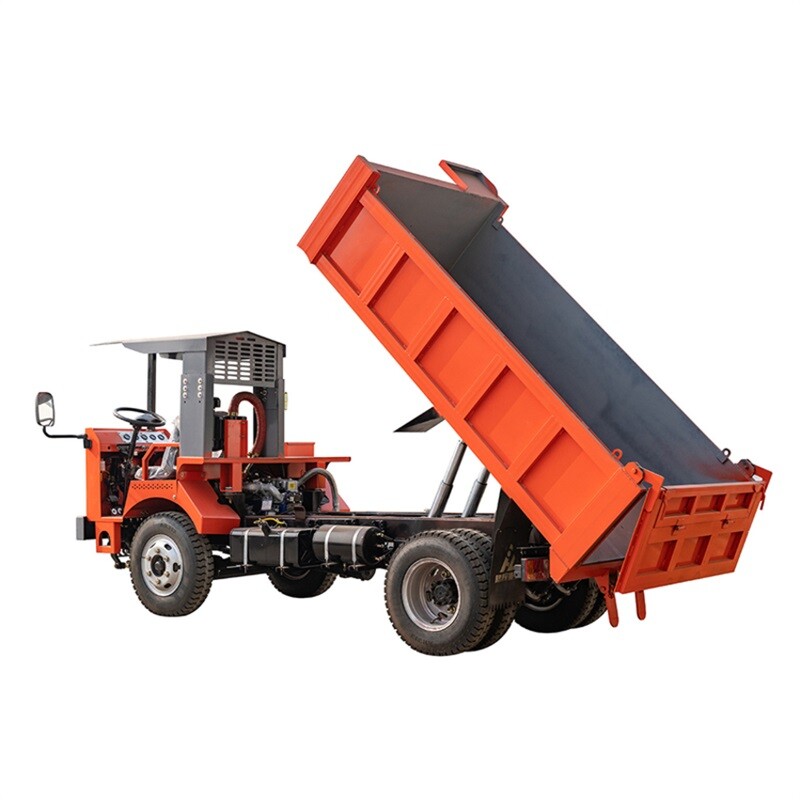

15T Mining Dump Truck

Mining underground dump trucks have many advantages such as high horsepower, small footprint, small sound, convenient and flexible operation, energy saving and consumption saving, and easy operation; mining underground dump trucks can be equipped with different engines according to different use environments and purposes, and can be customized according to customer needs.


Main features of mining wheel dump trucks:

1. Wide range of use, simple structure, stable transmission, labor-saving operation, and easy to realize automatic control.

2. Large traction, good climbing and grip performance, and strong transportation capacity.

3. Small turning radius, maneuverability, especially suitable for narrow venues, reducing the cost of road construction.

4. Easy to operate. All parts are national first-line brand products, with excellent quality, and it is easier to buy them in the local area in time when replacing parts.

5. Chassis: The front and rear cast axles specially used by our factory are stronger and longer-lasting than traditional welded axles. The chassis is fully reinforced and meets mining standards.

6.Technology: The whole vehicle breaks through the traditional technology, and the vehicle is produced in a split type, which can be disassembled and assembled at will, which is convenient for going down the well or maintenance.


Product numberX J-15 ton rear drive dump truck
Engine modelYuchai 4108 intercooled turbocharged diesel engine
Engine power118KW/160HP
Gearbox ModelFast 10JS90 gearbox/high and low speed
Axle ModelHeavy-duty 153 drive rear axle (10 large holes)
Carriage size4000mm*2200mm*800mm(length*width*height)
Carriage volume7m³ (paperback)
Standard load15000KG
Carriage steel plate thicknessBottom 10mm side 8mm
Tire brand/model"Kunlun" 900R20 mining steel wire tire (rear left and right double wheels)
Frame model24*8+8 (double-layer riveted automobile beam) cold riveting
Hydraulic cylinder model130*1200 (diameter*stroke)
Dumping methodRear double top dump
Number of spring plates/modelFront 10 pieces, rear 10 pieces + 9 pieces 90mm*16mm
Drive modeRear axle drive
Braking methodAir brake
Steering methodHydraulic steering gear steering
Exhaust gas treatmentWater filtration and purification (patented)
Driving styleLeft-hand drive
CabMine single semi-enclosed cab
Vehicle size5870mm*2250mm*2430mm(length*width*height)
Gear shifting methodGear line gear
Front and rear wheelbase3040mm
Vehicle weight6400KG
Cab height2430mm (ground to the highest point of the cab)
Carriage height2250mm (ground to highest point of carriage)
Carriage lifting highest point4255mm
Minimum ground clearance250mm
Maximum climbing angle14° (heavy vehicle climbing)
Remark:The size of the car box can be customized;
