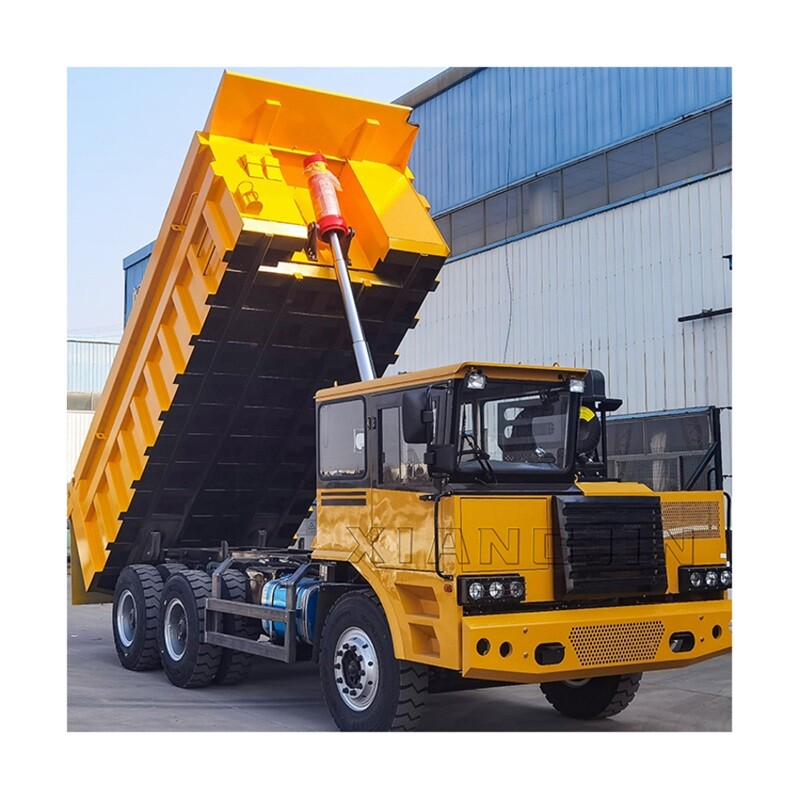

20T Mining Dump Truck ( Pointed Front)

Mining underground dump trucks have many advantages such as high horsepower, small footprint, small sound, convenient and flexible operation, energy saving and consumption saving, and easy operation; mining underground dump trucks can be equipped with different engines according to different use environments and purposes, and can be customized according to customer needs.


Main features of mining wheel dump trucks:

1. Wide range of use, simple structure, stable transmission, labor-saving operation, and easy to realize automatic control.

2. Large traction, good climbing and grip performance, and strong transportation capacity.

3. Small turning radius, maneuverability, especially suitable for narrow venues, reducing the cost of road construction.

4. Easy to operate. All parts are national first-line brand products, with excellent quality, and it is easier to buy them in the local area in time when replacing parts.

5. Chassis: The front and rear cast axles specially used by our factory are stronger and longer-lasting than traditional welded axles. The chassis is fully reinforced and meets mining standards.

6.Technology: The whole vehicle breaks through the traditional technology, and the vehicle is produced in a split type, which can be disassembled and assembled at will, which is convenient for going down the well or maintenance.


Product numberX J-20 tons rear drive dump truck
Engine modelYuchai Engine YC6L290-33 Diesel Engine
Engine power213KW/290HP
Gearbox ModelFast 10JS120 gearbox/high and low speed
Axle ModelHeavy duty Northern Benz side reduction axle (6.73)
Carriage size4500mm*2500mm*1000mm(length*width*height)
Carriage volume10m³ (paperback)
Standard load20000KG
Carriage steel plate thicknessBottom 16mm side 10mm
Tire brand/model"Kunlun" 1000R20 mining steel wire tire (rear left and right double wheels)
Frame model300*80*8+8 (double-layer riveted automobile beam) cold riveting
Dumping methodFront cylinder dump
Number of spring plates/modelSTR front axle assembly 16*90-10STR rear assembly 18*90-12+8
Drive modeRear axle drive
Braking methodAir brake
Steering methodHydraulic steering gear steering
Exhaust gas treatmentWater filtration and purification (patented)
Driving styleLeft-hand drive
CabFully enclosed cab
Vehicle size7450mm*2500mm*2730mm(length*width*height)
Gear shifting methodGear lever hanging straight
Front and rear wheelbase4150mm
Vehicle weight11500KG
Cab height2730mm (ground to the highest point of the cab)
Carriage height2210mm (ground to highest point of carriage)
Carriage lifting highest point4800mm
Minimum ground clearance320mm
Maximum climbing angle14°
Remark:The size of the car box can be customized;
